Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBL2212-150MSMD HIGH CURRENT POWER INDUCTOR |
108 |
|
Datasheet | CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 26A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-3R3MSMD HIGH CURRENT POWER INDUCTOR |
103 |
|
Datasheet | CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 50A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-220MSMD HIGH CURRENT POWER INDUCTOR |
1,350 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 15 A | 27A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-100MSMD HIGH CURRENT POWER INDUCTOR |
1,347 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 40A | Shielded | 3.88mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-150MSMD HIGH CURRENT POWER INDUCTOR |
860 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 32A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-101MSMD HIGH CURRENT POWER INDUCTOR |
810 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 6.1 A | 12.5A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-4R7MSMD HIGH CURRENT POWER INDUCTOR |
550 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 30 A | 58A | Shielded | 1.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-470MSMD HIGH CURRENT POWER INDUCTOR |
534 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 47 µH | ±20% | 9 A | 18.5A | Shielded | 21.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-3R3MSMD HIGH CURRENT POWER INDUCTOR |
488 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 70A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-6R8MSMD HIGH CURRENT POWER INDUCTOR |
325 |
|
Datasheet | CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 26 A | 48A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-390MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 39 µH | ±20% | 9.5 A | 20.5A | Shielded | 19.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-8R2MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 24 A | 45A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-560MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 56 µH | ±20% | 8.2 A | 17A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-120MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 12 µH | ±20% | 19.5 A | 37A | Shielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-820MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 82 µH | ±20% | 7 A | 13.8A | Shielded | 33.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-680MFLAT WIRE HIGH CURRENT INDUCTOR |
120 |
|
Datasheet | CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 68 µH | ±20% | 7.5 A | 15A | Shielded | 30.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBL2212-330MSMD HIGH CURRENT POWER INDUCTOR |
105 |
|
Datasheet | CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 11.5 A | 18A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|

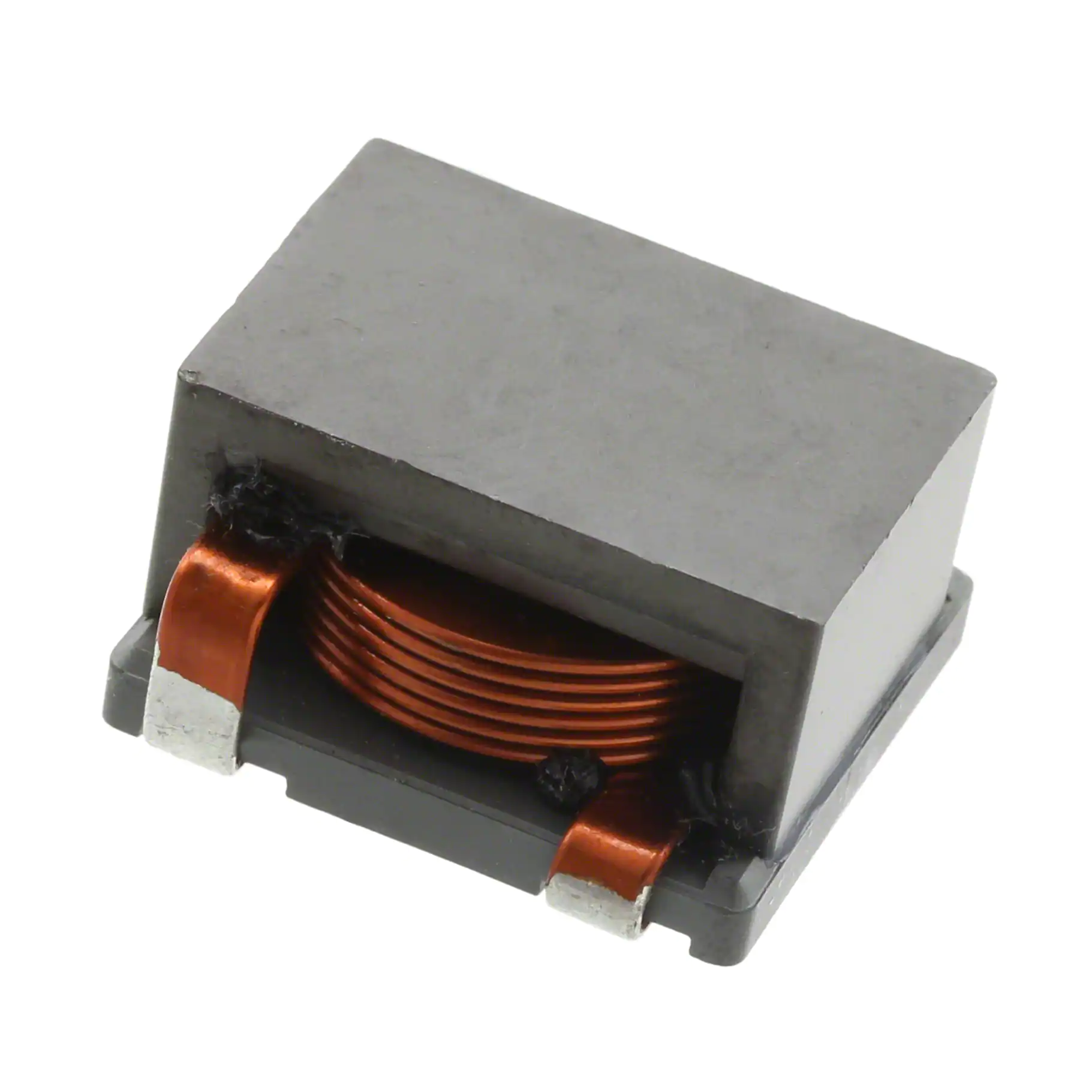

HA65A-25153R3LFFIXED IND 3.3UH 2.6 MOHM SMD |
243 |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 3.3 µH | ±10% | - | 87A | Unshielded | 2.6mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
|
HA65A-25154R7LFFIXED IND 4.7UH 2.6 MOHM SMD |
237 |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 4.7 µH | ±10% | - | 61A | Unshielded | 2.6mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
|
HA65A-251533RLFFIXED IND 33UH 2.6 MOHM SMD |
190 |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 33 µH | ±10% | - | 10.3A | Unshielded | 2.6mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
