FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TW030Z120C,S1FG3 1200V SIC-MOSFET TO-247-4L 3 |
105 |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 18V | 41mOhm @ 30A, 18V | 5V @ 13mA | 82 nC @ 18 V | +25V, -10V | 2925 pF @ 800 V | - | 249W (Tc) | 175°C | - | - | Through Hole | TO-247-4L(X) |
|
|
TW015Z120C,S1FG3 1200V SIC-MOSFET TO-247-4L 1 |
68 |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 100A (Tc) | 18V | 21mOhm @ 50A, 18V | 5V @ 11.7mA | 158 nC @ 18 V | +25V, -10V | 6000 pF @ 800 V | - | 431W (Tc) | 175°C | - | - | Through Hole | TO-247-4L(X) |
|
2SK1828TE85LFMOSFET N-CH 20V 50MA SC59 |
1,367 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 50mA (Ta) | 2.5V | 40Ohm @ 10mA, 2.5V | 1.5V @ 100µA | - | 10V | 5.5 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
SSM3K56CT,L3FMOSFET N-CH 20V 800MA CST3 |
14,906 |
|
Datasheet | U-MOSVII-H | SC-101, SOT-883 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 800mA (Ta) | 1.5V, 4.5V | 235mOhm @ 800mA, 4.5V | 1V @ 1mA | 1 nC @ 4.5 V | ±8V | 55 pF @ 10 V | - | 500mW (Ta) | 150°C (TA) | - | - | Surface Mount | CST3 |
|
TK7R0E08QM,S1XUMOS10 TO-220AB 80V 7MOHM |
108 |
|
Datasheet | U-MOSX-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 64A (Tc) | 6V, 10V | 7mOhm @ 32A, 10V | 3.5V @ 500µA | 39 nC @ 10 V | ±20V | 2700 pF @ 40 V | - | 87W (Tc) | 175°C | - | - | Through Hole | TO-220 |
|

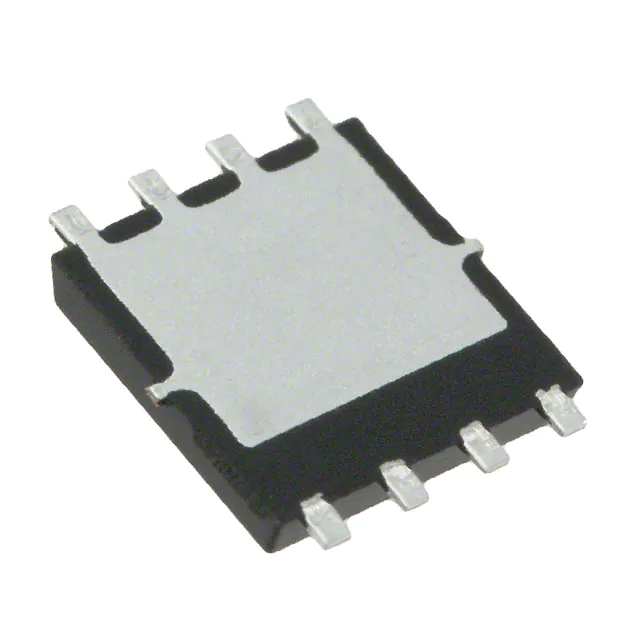

TPCA8026(TE12L,Q,MMOSFET N-CH 30V 45A 8SOP |
1,171 |
|
Datasheet | U-MOSIV | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 2.2mOhm @ 23A, 10V | 2.5V @ 1mA | 113 nC @ 10 V | ±20V | 4200 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
.jpg "SSM6J501NU,LF")
|
SSM6J501NU,LFMOSFET P-CH 20V 10A 6UDFNB |
468 |
|
Datasheet | U-MOSVI | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 1.5V, 4.5V | 15.3mOhm @ 4A, 4.5V | 1V @ 1mA | 29.9 nC @ 4.5 V | ±8V | 2600 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-UDFNB (2x2) |
|
SSM3K341TU,LFMOSFET N-CH 60V 6A UFM |
244 |
|
Datasheet | U-MOSVIII-H | 3-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 4A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.8W (Ta) | 175°C | - | - | Surface Mount | UFM |
|
SSM3K341R,LFMOSFET N-CH 60V 6A SOT-23F |
57 |
|
Datasheet | U-MOSVIII-H | SOT-23-3 Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 5A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOT-23F |
|
TPHR9003NL1,LQUMOS9 SOP-ADV(N) PD=78W F=1MHZ |
52 |
|
Datasheet | U-MOSVIII-H | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 0.9mOhm @ 50A, 10V | 2.3V @ 1mA | 74 nC @ 10 V | ±20V | 6900 pF @ 15 V | - | 800mW (Ta), 170W (Tc) | 150°C | - | - | Surface Mount | 8-SOP Advance (5x5.75) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
