Wireless Charging Coils

Explore Wireless Charging Coils parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
760308103146 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,753	18.23	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	8.5µH	±10%	56mOhm Max	140 @ 125kHz	8A	16A	11MHz	-20°C ~ 60°C	2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
760308101 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	2,286	18.76	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	90 @ 125kHz	6A	10A	6MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
760308101302 TX 1 COIL 1 LAYER 5.3UH 8A Würth Elektronik	2,004	21.34	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	5.3µH	±10%	33mOhm	100 @ 125kHz	8A	10A	27MHz	-20°C ~ 105°C	1.97" Dia x 0.19" H (50.0mm x 4.7mm)
760308100143 TX 1 COIL 2 LAYER 6UH 12A Würth Elektronik	4,993	21.40	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	6µH	±10%	18mOhm Max	180 @ 125kHz	12A	24A	16MHz	-20°C ~ 105°C	1.97" Dia x 0.26" H (50.0mm x 6.7mm)
WCT38466-N0E0SST101 PATTERNED TX COIL FOR WPT TDK Corporation	4,827	24.41	RFQ	Datasheet	WCT	Tray	Active	Transmitter	1 Coil, 2 Layer	10.6µH	±0.5µH	149mOhm Max	-	-	-	-	-40°C ~ 85°C	3.35" L x 2.64" W x 0.03" H (85.1mm x 67.0mm x 0.8mm)
760308100141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	1,633	24.04	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	180 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C	1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)
760308141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	4,493	24.04	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	140 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)
760308106 TX 3 COIL 1 LAYER 10A Würth Elektronik	1,608	35.18	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	-	65mOhm	140 @ 125kHz	10A	10A	-	-	5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm)
WTSC-6R3K-A11 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	3,250	8.05	RFQ	Datasheet	WCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C	1.97" Dia x 0.14" H (50.0mm x 3.5mm)
WR483265-13F5-G RX 1 COIL, 1 LYR 10.1UH TDK Corporation	3,880	6.30	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	10.1µH	-	270mOhm	-	-	-	-	-	1.90" L x 1.27" W x 0.05" H (48.2mm x 32.2mm x 1.3mm)
760308105 TX 1 COIL 2 LYR BILFILAR 6.3UH Würth Elektronik	3,354	13.60	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	24mOhm Max	55 @ 125kHz	13A	16A	20MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
WT1005690-10F2-M8-G2 TX 3 COIL, 1 LYR 7.5UH, 8.5UH TDK Corporation	3,681	13.95	RFQ	Datasheet	WT	Tray	Active	Transmitter	3 Coil, 1 Layer	7.5µH, 8.5µH	-	50mOhm	-	-	-	-	-	4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm)
760308103148 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,724	22.53	RFQ	Datasheet	WE-WPCC	Bulk	Active	Receiver, Transmitter	2 Coil, 1 Layer	6.9µH, 6.4µH	±10%	52mOhm Max	120 @ 125kHz, 115 @ 125kHz	8.5A	20A	15MHz, 19MHz	-20°C ~ 105°C	2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
760308103149 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,012	23.58	RFQ	Datasheet	WE-WPCC	Tray	Active	Transmitter	3 Coil, 1 Layer	10.2µH, 9.8µH, 10.2µH	±10%	55mOhm	110 @ 125kHz	9A	18A	8MHz	-20°C ~ 105°C	4.17" L x 2.24" W x 0.17" H (106.0mm x 57.0mm x 4.2mm)

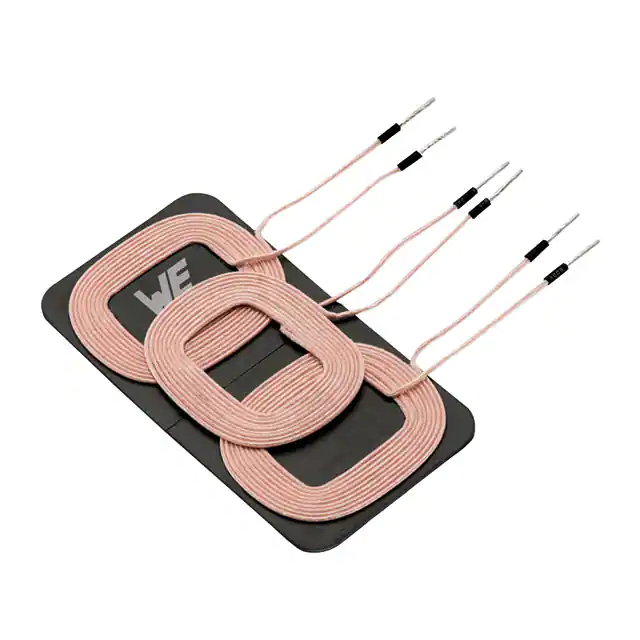

760308104120 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,319	30.78	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	3 Coil, 1 Layer	6.9µH, 6.4µH, 6.9µH	±10%	45mOhm	100 @ 125kHz	9A	12A	15MHz	-20°C ~ 105°C	-
760308103305 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	4,620	14.24	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	2 Coil, 1 Layer	8.8µH, 1.4µH	±10%	220mOhm Max, 100mOhm Max	30 @ 125Khz, 47 @ 125kHz	2.6A, 5A	5A, 5A	22MHz, 16MHz	-20°C ~ 105°C	1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
IWTX47R0DAEB6R3JF1 IWTX-47R0DA-F1 6.3 5% EB E2 Vishay Dale	4,470	3.43	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C	1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm)
IWAS4832ADEB150JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	4,657	3.43	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	15µH	±5%	240mOhm	65 @ 200kHz	-	-	-	-40°C ~ 105°C	1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.9mm)
IWTX47R0EBEB240JF1 IWTX-47R0EB-F1 24 5% EB E2 Vishay Dale	2,618	3.79	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.85" Dia x 0.21" H (47.0mm x 5.3mm)

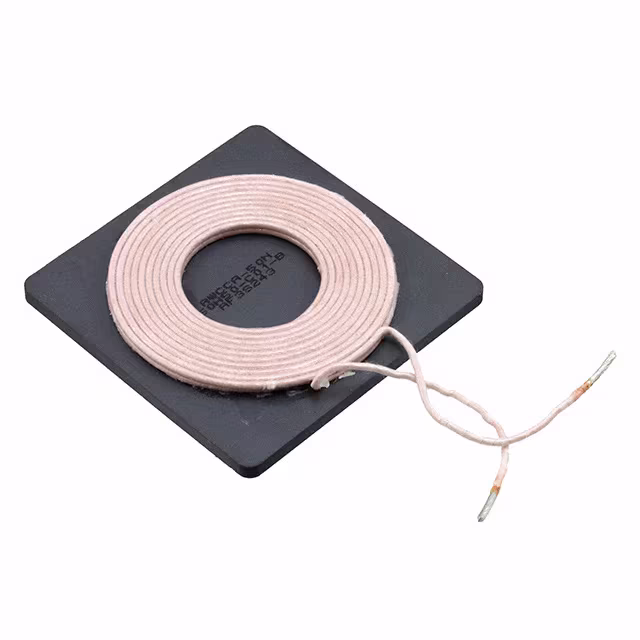

AWCCA-50N50H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	2,253	10.11	RFQ	Datasheet	AWCCA-50N50	Bulk	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	163 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)

FAQ

Frequently Asked Questions

What are Wireless Charging Coils components used for?

Wireless Charging Coils components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Wireless Charging Coils part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Wireless Charging Coils parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
