Wireless Charging Coils
Explore Wireless Charging Coils parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WR121210-27M8-IDRX 1 COIL 1 LYR 8.32UH |
3,181 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 8.32µH | ±5% | 950mOhm | - | - | - | - | - | 0.47" Dia x 0.01" H (12.0mm x 0.3mm) |
|
IWAS4832ABEB110JF1IWAS-4832AB-F1 11 5% EB E2 |
1,021 |
|
Datasheet | - | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.8µH | ±5% | 187mOhm | 60 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.7mm) |
|
760308101221WE-WPCC WIRELESS POWER CHARGING |
3,119 |
|
Datasheet | WE-WPCC | Bulk | Active | Receiver | 1 Coil, 6 Layer | 24µH | ±10% | 1.15Ohm Max | 16 @ 125kHz | 400mA | 1A | 10MHz | -20°C ~ 105°C | 0.24" Dia x 0.16" H (6.0mm x 4.0mm) |
|
760308101217RX 1 COIL 6 LAYER 24.2UH 400MA |
1,439 |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 24.2µH | ±10% | 1.4Ohm Max | 13 @ 125kHz | 400mA | 1A | 14.5MHz | -20°C ~ 105°C | 0.41" Dia x 0.07" H (10.3mm x 1.9mm) |
|
760308101216RX 1 COIL 6 LAYER 7.2UH 500MA |
2,241 |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 7.2µH | ±10% | 440mOhm Max | 10 @ 125kHz | 500mA | 1A | 32MHz | -20°C ~ 105°C | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) |
|
760308105309WE-WPCC WIRELESS POWER CHARGING |
3,639 |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 450mOhm | 19 @ 125kHz | 1.5A | 3A | 18.5MHz | -20°C ~ 105°C | 1.035" Dia x 0.019" H (26.30mm x 0.49mm) |
|
760308101106WE-WPCC WIRELESS POWER CHARGING |
3,025 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 2.5µH | ±10% | 90mOhm | 30 @ 125kHz | 2.5A | 8A | 38MHz | -20°C ~ 105°C | 0.807" Dia x 0.110" H (20.50mm x 2.80mm) |
|
760308103206RX 1 COIL 1 LAYER 7.5UH 1.55A |
3,194 |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 340mOhm | 16 @ 125kHz | 1.55A | 3A | 23MHz | -20°C ~ 105°C | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm) |
|
760308102210RX 1 COIL 1 LAYER 7.5UH 3A |
4,523 |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 180mOhm Max | 45 @ 125kHz | 3A | 6A | 22MHz | -20°C ~ 105°C | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
|
760308101107WE-WPCC WIRELESS POWER CHARGING |
3,974 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 315mOhm | 55 @ 125kHz | 2A | 8A | 7.5MHz | -20°C ~ 105°C | 1.220" Dia x 0.098" H (31.00mm x 2.50mm) |
|
760308104113TX 1 COIL 1 LAYER 12UH 7A |
4,622 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 12µH | ±10% | 72mOhm Max | 120 @ 125kHz | 7A | 12A | 16MHz | -20°C ~ 105°C | 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm) |
|
760308102142TX 1 COIL 1 LYR BIFIL 5.8UH 18A |
1,957 |
|
Datasheet | WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 5.8µH | ±10% | 12mOhm Max | 100 @ 125kHz | 18A | 30A | 12MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
|
760308101311WE-WPCC WIRELESS POWER CHARGING |
4,532 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 5.8µH | ±10% | 14mOhm | 220 @ 125kHz | 21A | - | 13MHz | -20°C ~ 105°C | 2.76" Dia x 0.33" H (70.0mm x 8.5mm) |
|
WTSC-24R0K-A10SINGLE-COIL WIRELESS CHARGING CO |
1,152 |
|
Datasheet | WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 85mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|
WR524830-16F3-NF-GRX 1 COIL, 1 LYR 19.5UH |
4,559 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.5µH | - | 800mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm) |
|
760308101312WE-WPCC WIRELESS POWER CHARGING |
2,259 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 24µH, 700nH | ±10% | 90mOhm, 30mOhm | 125 @ 125kHz, 30 @ 125kHz | 6A, 13A | - | 7MHz, 63MHz | -20°C ~ 105°C | 2.13" Dia x 0.16" H (54.0mm x 4.0mm) |
|
760308103307WE-WPCC WIRELESS POWER CHARGING |
1,580 |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 7.8µH, 1.6µH | ±10% | 340mOhm Max, 90mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 1.5A, 4A | 3A, 7A | 22MHz, 24MHz | -20°C ~ 105°C | 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) |
|

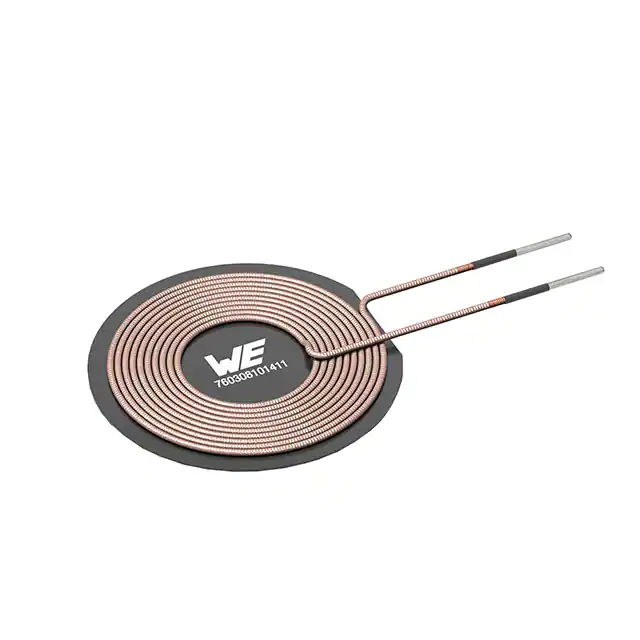

760308101411WE-WPCC WIRELESS POWER CHARGING |
1,612 |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm | 110 @ 125kHz | 7.5A | 10A | 20MHz | -20°C ~ 105°C | 1.97" Dia x 0.11" H (50.0mm x 2.8mm) |
|
760308103109WE-WPCC WIRELESS POWER CHARGING |
3,403 |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.2µH | ±10% | 50mOhm | 130 @ 125kHz | 9A | 18A | 11MHz | -20°C ~ 105°C | 2.244" L x 2.008" W x 0.165" H (57.00mm x 51.00mm x 4.20mm) |
|
760308102306WE-WPCC WIRELESS POWER CHARGING |
2,100 |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 8µH, 1.4µH | ±10% | 400mOhm Max, 100mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 2A, 5A | 5A, 5A | 17.5MHz, 19MHz | -20°C ~ 105°C | 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm) |
Frequently Asked Questions
What are Wireless Charging Coils components used for?
Wireless Charging Coils components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Wireless Charging Coils part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Wireless Charging Coils parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
