TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.0SMCJ6.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
726 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 291.3A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
3.0SMCJ13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
480 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 139.4A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMBJ48CA R5GTVS DIODE 48VWM 77.4VC DO214AA |
3,280 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 48V | 53.3V | 77.4V | 8.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SRV05-4.TCTSOT23-6 |
1,465 |
|
Datasheet | SOT-23-6 | UMW | Cut Tape (CT) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 3A (8/20µs) | 60W | Yes | Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
BZW06-376RLTVS DIODE 376VWM 776VC DO15 |
1,059 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW06, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 376V | 418V | 776V | 5.7A (8/20µs) | 600W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
L35UN-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
240 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D35P-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
240 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D35N-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
240 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L35UP-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
236 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

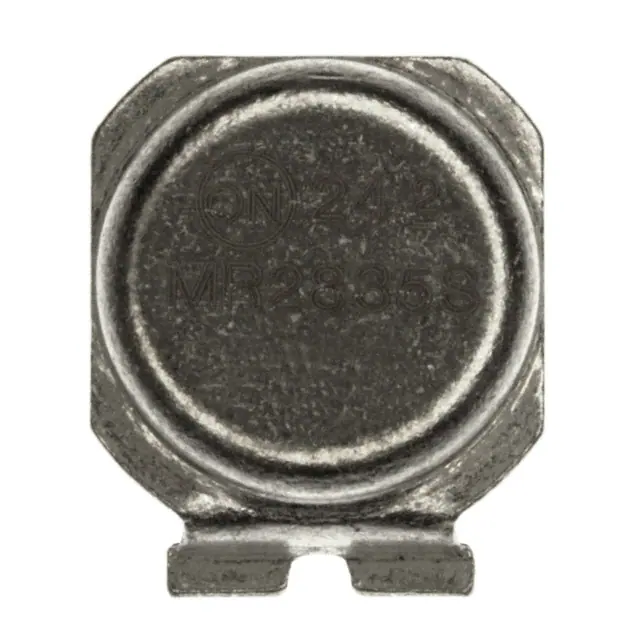

MR2835SKTVS DIODE 23VWM TOP CAN |
5,333 |
|
Datasheet | Top Can | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 23V | 24V | - | - | - | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TOP CAN |
|
1.5SMC100A TR13 PBFREETVS DIODE 85.5VWM 137VC SMC |
2,970 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMB10J15CA R5GTVS DIODE 15VWM 24.4VC DO214AA |
2,550 |
|
Datasheet | DO-214AA, SMB | SMB10J | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 15V | 16.7V | 24.4V | 41A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
3.0SMCJ12CATVS DIOD 3000W DO-214AB 12V |
1,718 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
F35UP-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
240 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F35UN-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
239 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMBJ15CA R5GTVS DIODE 15VWM 24.4VC DO214AA |
220 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 15V | 16.7V | 24.4V | 25.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ58CA-13TVS DIODE 58VWM 93.6VC SMB |
9,000 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6KE540CA-TPTVS DIODE 459VWM 740VC DO15 |
3,925 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 459V | 513V | 740V | 810mA | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SMBJ85CA-13TVS DIODE 85VWM 137VC SMB |
3,000 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 85V | 94.4V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMDJE40AHTVS DIODE 40VWM 64.5VC UNI |
2,800 |
|
Datasheet | DO-214AB, SMC | SMDJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
