TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB8.2CATVS DIODE 7.02VWM 12.1VC DO214AA |
1,425 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 50.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESD7410N2T5GTVS DIODE 8VWM 20VC 2X2DFN |
67,390 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 8V (Max) | 10V | 20V (Typ) | - | - | No | RF Antenna | 0.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X2DFN (1x0.6) |
|
TPD1E05U06DPYRX1SON ESD PROTECTION DEVICES ROH |
10,000 |
|
Datasheet | 0402 (1006 Metric) | UMW | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 3.5A (8/20µs) | 45W | No | General Purpose | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-X1SON (1x0.6) |
|
SMA6J24AFL-TPTVS DIODE 24VWM 38.9VC DO221AC |
9,997 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC (SMA-FL) |
|
SA15CA-TPTVS DIODE 15VWM 24.4VC DO15 |
9,728 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 15V | 16.7V | 24.4V | 20.9A | 500W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Through Hole | DO-15 |
|
P6SMB200AHE3_A/HTVS DIODE 171VWM 274VC DO214AA |
7,150 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
P6KE91CATVS DO15 77.8V 600W BIDIR |
1,444 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 77.8V | 86.5V | 125V | 4.8A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
ATV04A400J-HFTVS DIODE 40VWM 64.5VC SMA |
5,000 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 6.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE12CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
P6KE62CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,000 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 7.1A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
SA120ATVS DIODE 120VWM 193VC DO204AC |
3,594 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 2.6A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
10BJ17ATVS DIODE 17VWM 27.6VC SMB |
2,966 |
|
Datasheet | DO-214AA, SMB | 10BJ | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 36.3A | 1000W (1kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

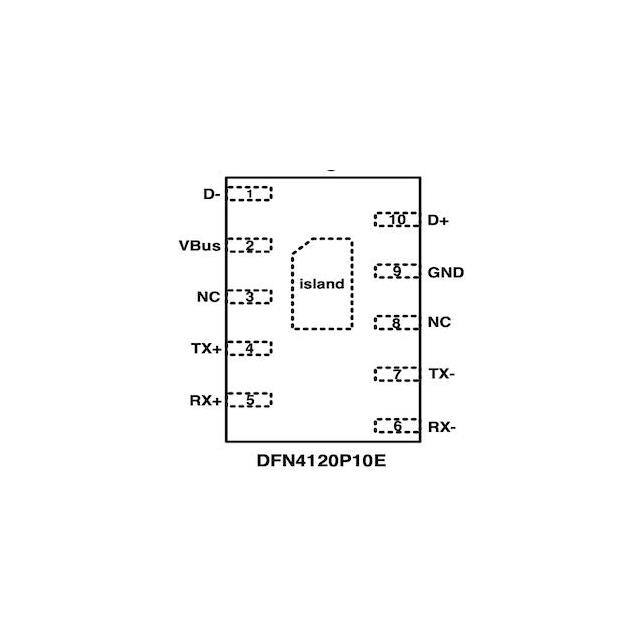

AZ1365-06FLOW CAP ESD HIGH SPEED 6-CH 2.2V |
2,950 |
|
Datasheet | 10-UDFN Exposed Pad | - | Strip | Active | Zener | 6 | - | 2.2V (Max) | 4.5V | - | - | - | No | USB | - | -40°C ~ 85°C (TC) | - | - | Surface Mount | DFN4120P10E |
|
|
10BJ6-0CATVS DIODE 6VWM 10.3VC SMB |
2,883 |
|
Datasheet | DO-214AA, SMB | 10BJ | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 97.1A | 1000W (1kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ90CATVS DIODE 90VWM 146VC SMB |
7,984 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 4.11A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
10BJ11ATVS DIODE 11VWM 18.2VC SMB |
2,528 |
|
Datasheet | DO-214AA, SMB | 10BJ | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 55A | 1000W (1kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMCJ12CATVS DIODE 12VWM 19.9VC SMC |
2,138 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 75.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P4SMA170CA R3GTVS DIODE 145VWM 234VC DO214AC |
1,800 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 145V | 161.5V | 234V | 1.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ7.5CATVS DIODE 7.5VWM 12.9VC SMC |
1,525 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1.5KE36ATVS, UNI-DIR, 1500W, 30.8V, DO-2 |
4,190 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
