TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PACDN043Y4RTVS DIODE 5.5VWM 8VC SOT143-4 |
5,848 |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Obsolete | Zener | 3 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-143-4 |
|

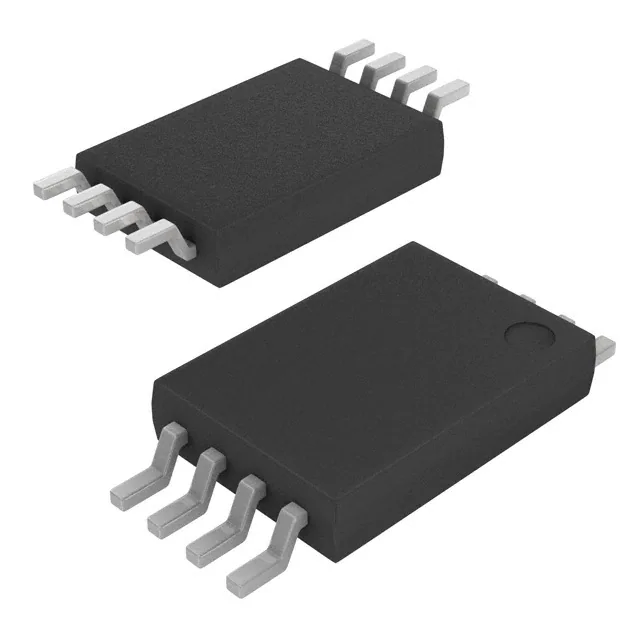

PACDN044TRTVS DIODE 5.5VWM 8VC 8-TSSOP |
9,519 |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
SMCJ36CA1500W SURFACE MOUNT TRANSIENT VO |
28,662 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5KP6.5CATVS DIODE 6.5VWM 11.2VC D6 |
19,200 |
|
Datasheet | D-6, Axial | - | Bag | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 447A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | D6 |
|
PACDN045Y6RTVS DIODE 5.5VWM 8VC SOT23-6 |
4,049 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
.jpg "SZ1SMB7.5AT3G")
|
SZ1SMB7.5AT3GTVS DIODE 7.5VWM 12.9VC SMB |
9,708 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | - | 1890pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMA6S15AHTVS DIODE 15VWM 24.4VC SOD128 |
9,195 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.8V | 24.4V | 24.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
RSBC6.8CST2RATVS DIODE 3.5VWM VMN2 |
6,964 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V | 6.62V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | VMN2 |
|
|
SMA6S18AHTVS DIODE 18VWM 29.2VC SOD128 |
6,931 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20.1V | 29.2V | 20.5A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
|
SMA6S36AHTVS DIODE 36VWM 58.4VC SOD128 |
6,353 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.2V | 58.4V | 10.3A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
SMCJ13A1500W TRANSIENT VOLTAGE SUPPRESS |
5,392 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 69.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMA6S56AHTVS DIODE 56VWM 90.9VC SOD128 |
5,019 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 56V | 62.6V | 90.9V | 6.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
P4SMA11CATVS DIODE 9.4VWM 15.6VC DO214AC |
4,723 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 9.4V | 10.5V | 15.6V | 26.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE250A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
3,977 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 1.8A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
PE1805C4E6_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
3,323 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | - | Yes | DVI, Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
SMCJ15ATVS DIODE 15VWM 24.4VC SMC |
2,795 |
|
Datasheet | DO-214AC, SMA | - | Cut Tape (CT) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 61.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMA6L14ATVS DIODE 14VWM 23.2VC DO221AC |
2,790 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
SMA6L150ATVS DIODE 150VWM 243VC DO221AC |
2,688 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 1.65A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
ESD5004MXTBGTVS DIODE 3.3VWM 9.1VC 4X3DFN |
2,501 |
|
Datasheet | 4-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3.3V (Max) | 3.9V | 9.1V | - | - | No | General Purpose | 3.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X3DFN (0.53x0.93) |
|
P6SMB160ATVS DIODE 136VWM 219VC DO214AA |
2,460 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 2.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
