TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ100A-13-FTVS DIODE 100VWM 162VC SMA |
25,667 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ7.0ATVS DIODE 7VWM 12VC DO214AC |
21,979 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NUP5120X6T1GTVS DIODE 5VWM SOT563 |
20,364 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.2V | - | - | 90W | No | General Purpose | 54pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
.jpg "PESD3V3U1UB,115")
|
PESD3V3U1UB,115TVS DIODE 3.3VWM SOD523 |
19,461 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | - | 2.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
STS321033U202TVS DIODE 3.3VWM 15VC SOD323 |
19,342 |
|
Datasheet | SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4V | 15V | 25A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ70ATVS DIODE 70VWM 113VC DO214AC |
18,334 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

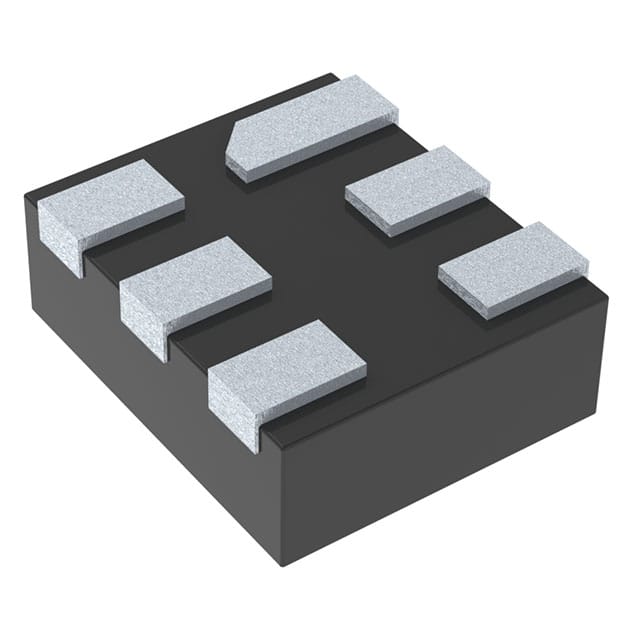

ESDR0502NMUTAGTVS DIODE 5.5VWM 6UDFN |
18,098 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
|
SMAJ48A-QTVS DIODE 48VWM 77.4VC SMA |
16,955 |
|
Datasheet | DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
D5V0S1U2WS-7TVS DIODE 5.5VWM 16VC SOD323 |
12,587 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 16V | 70A (8/20µs) | 1000W (1kW) | No | - | 950pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PESD2USB3UX-TRTVS DIODE 3.3VWM TO236AB |
12,270 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V | - | - | 4A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SP36-01WTG-C-HVTVS DIODE 36VWM 48VC 2FLIPCHIP |
12,045 |
|
Datasheet | 2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | 40V | 48V | 1.5A (8/20µs) | 100W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
DF2S6P2FU,H3FTVS DIODE 5.5VWM 23.7VC USC |
10,569 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.6V | 23.7V | 80A (8/20µs) | 1900W (1.9kW) | No | General Purpose | 600pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | USC |
|
DT2636-04S-7TVS DIODE 5.5VWM 9VC SOT363 |
10,477 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 9V (Typ) | 5A (8/20µs) | 60W | No | HDMI | 0.75pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363 |
|
PESD12VS2UT,215TVS DIODE 12VWM 35VC TO236AB |
9,455 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | 180W | No | General Purpose | 38pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
P6KE68CATVS DIODE 58.1VWM 92VC DO204AC |
8,833 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PESD3V3L1BAFTVS DIODE 3.3VWM 26VC SOD323 |
8,529 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | General Purpose | 101pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P6SMB27CATVS DIODE 23.1VWM 37.5VC DO214AA |
8,186 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ85ATVS DIODE 85VWM 137VC DO214AC |
7,631 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ5.0CA-TPTVS DIODE 5VWM 9.2VC DO214AA |
7,468 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
VCAN16A2-03G-E3-08TVS DIODE 16VWM 28VC SOT323 |
7,271 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 140W | No | CAN | 15.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
