TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "PESD12VS1UB,115")
|
PESD12VS1UB,115TVS DIODE 12VWM 35VC SOD523 |
15,732 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | 180W | No | General Purpose | 38pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
STS321033B401TVS DIODE 3.3VWM 15VC SOD323 |
14,713 |
|
Datasheet | SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 15V | 30A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

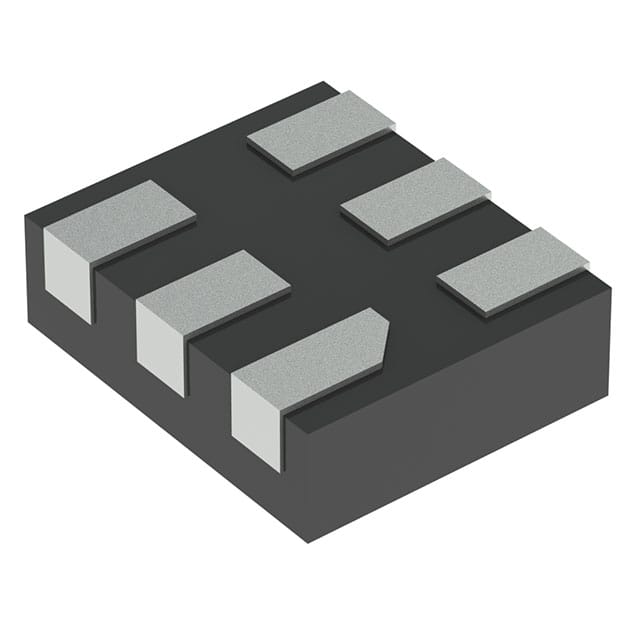

ESDR0502NMUTBGTVS DIODE 5.5VWM 6UDFN |
13,663 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
, SC-88A, SOT-353.jpg "DF5A5.6LFU(TE85L,F")
|
DF5A5.6LFU(TE85L,FTVS DIODE 3.5VWM USV |
12,104 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.5V | 5.3V | - | - | - | No | General Purpose | 8pF @ 1MHz | - | - | - | Surface Mount | USV |
|
STS521050B331TVS DIODE 5VWM 18VC SOD523 |
11,849 |
|
Datasheet | SC-79, SOD-523 | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 18V | 20A (8/20µs) | 350W | No | General Purpose | 33pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
PESD5V0X1BT,215TVS DIODE 5VWM TO236AB |
10,326 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.8V | - | - | - | No | - | 0.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
-Type-C;-;-2.jpg "D24V0L1B2LPSQ-7B")
|
D24V0L1B2LPSQ-7BTVS DIODE 24VWM 46VC DFN1006-2 |
9,277 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26V | 46V | 2A (8/20µs) | 90W | No | - | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
DF2B18FU,H3XHFAUTO AEC-Q BIDIRECTIONAL ESD PRO |
8,863 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | USC |
|
SZNUP1301ML3T1GTVS DIODE SOT23-3 |
7,934 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | - | 70V | - | - | - | No | - | 0.9pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
PESD5V0L2UM,315TVS DIODE 5VWM 15VC SOT883 |
5,423 |
|
Datasheet | SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.46V | 15V | 2.5A (8/20µs) | 30W | No | General Purpose | 16pF @ 1MHz | - | Automotive | AEC-Q100 | Surface Mount | SOT-883 |
|
PESD5V0L5UY,115TVS DIODE 5VWM 12VC 6TSSOP |
3,038 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|
VS4V5BU1QST18RTVS DIODE 4.5VWM 12VC SMD1006 |
2,754 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V (Max) | 5.3V | 12V | 50A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD1006 |
|
PESD2IVN27-UXTVS DIODE 27VWM 45VC SOT323 |
1,552 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMAJ30A-13-FTVS DIODE 30VWM 48.4VC SMA |
544,079 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ6.0A-13-FTVS DIODE 6VWM 10.3VC SMA |
278,342 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMBJ40A-13-FTVS DIODE 40VWM 64.5VC SMB |
183,566 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
D12V0H1U2LP1610-7TVS DIODE 12VWM 20VC U-DFN1610-2 |
179,215 |
|
Datasheet | 0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13V | 20V | 50A (8/20µs) | 1000W (1kW) | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
DT6250-06MR-13TVS DIODE 5VWM 10VC 8-MSOP |
164,582 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5V (Max) | 6V | 10V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
SMAJ13A-13-FTVS DIODE 13VWM 21.5VC SMA |
150,843 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMBJ16A-13-FTVS DIODE 16VWM 26VC SMB |
144,561 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
