TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg "5.0SMDJ8.0A-Q")
|
5.0SMDJ8.0A-QTVS DIODE 8VWM 13.6VC SMC |
4,599 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 367.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ10A-QTVS DIODE 10VWM 17VC SMC |
5,784 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 294.2A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ78A-QTVS DIODE 78VWM 126VC SMC |
5,126 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 39.7A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
5.0SMDJ45A-QTVS DIODE 45VWM 72.7VC SMC |
6,276 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
CLCS145V0-GTVS DIODE 5VWM 13VC SOT143 |
6,002 |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 5V | 6V | 13V | 5.1A (8/20µs) | - | No | General Purpose | - | -55°C ~ 155°C (TJ) | - | - | Surface Mount | SOT-143 |
|
BZW04-33BTVS DO15 33.3V 400W UNIDIR |
1,466 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 7.4A | 400W | No | General Purpose | 225pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
BZW04-13BTVS DO15 12.8V 400W UNIDIR |
9,183 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 19A | 400W | No | General Purpose | 600pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-15BTVS DO15 15.3V 400W UNIDIR |
9,911 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 16A | 400W | No | General Purpose | 487.5pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-70BTVS DO15 70.1V 400W UNIDIR |
4,006 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 70.1V | 77.9V | 113V | 3.5A | 400W | No | General Purpose | 115pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
BZW06-15TVS DO15 15.3V 600W UNIDIR |
4,297 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW06, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | 1 | - | 15.3V | 17.1V | 32.5V | 123A (8/20µs) | 600W | No | General Purpose | 1600pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

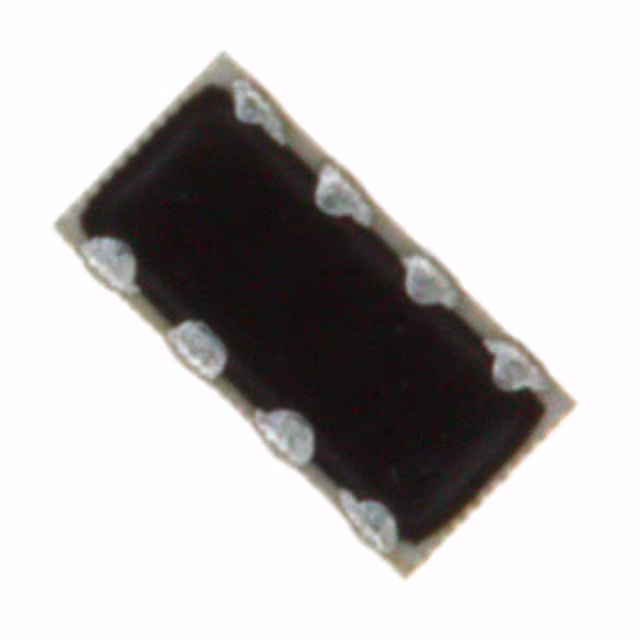

PESD1206Q-140TVS DIODE 14VWM 75VC 1206 |
7,468 |
|
Datasheet | 1206 (3216 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 14V | - | 75V | - | - | No | General Purpose | - | -55°C ~ 110°C (TJ) | - | - | Surface Mount | 1206 |
|
PRTR5V0U8S,118TVS DIODE 5.5VWM 10TSSOP |
6,447 |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | - | - | - | Yes | General Purpose | 1pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TSSOP |
.jpg "SMCJ6.0CAE3/TR13")
|
SMCJ6.0CAE3/TR13TVS DIODE 6VWM 10.3VC DO214AB |
7,834 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 145.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
USB50805CE3/TR13TVS DIODE 5VWM 13VC 8-SO |
9,828 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6V | 13V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
;;2.jpg "TP6KE18CA")
|
TP6KE18CATVS DIODE 15.3VWM 25.2VC DO204AC |
7,641 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 24.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
.jpg "TPSMB51CA-VR")
|
TPSMB51CA-VRTVS DIODE 51VWM 82.4VC DO214 TR |
6,720 |
|
Datasheet | DO-214AA, SMB | TPSMB-VR | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
P6SMB200AHM3_A/HTVS DIODE 171VWM 274VC DO214AA |
8,679 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB39AHM3_A/HTVS DIODE 33.3VWM 53.9VC DO214AA |
5,234 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 11.1A | 600W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
;;2.jpg "SMBJ3V3HE3_A/H")
|
SMBJ3V3HE3_A/HTVS DIODE 3.3VWM 10.3VC DO214AA |
6,134 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V | 4.1V | 10.3V | 200A (8/20µs) | 600W | No | - | 5200pF @ 1MHz | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
UES08A05L04TVS ESD SOIC-08 5V 13.5VE |
4,967 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | UES08A05L04 | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 6V | 13.5V | 20A (8/20µs) | 500W | No | Ethernet | 5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
