TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "SMCJ6036E3/TR13")
|
SMCJ6036E3/TR13TVS DIODE 5.5VWM 11.7VC DO214AB |
5,213 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.5V | 6.75V | 11.7V | 128A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ6040E3/TR13TVS DIODE 8.5VWM 16.2VC DO214AB |
3,655 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 8.5V | 9.9V | 16.2V | 93A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
VBUS054B-HS3-GS08TVS DIODE 5VWM 15VC LLP75-6A |
8,636 |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Min) | 6.3V | 15V | 3A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-6A |

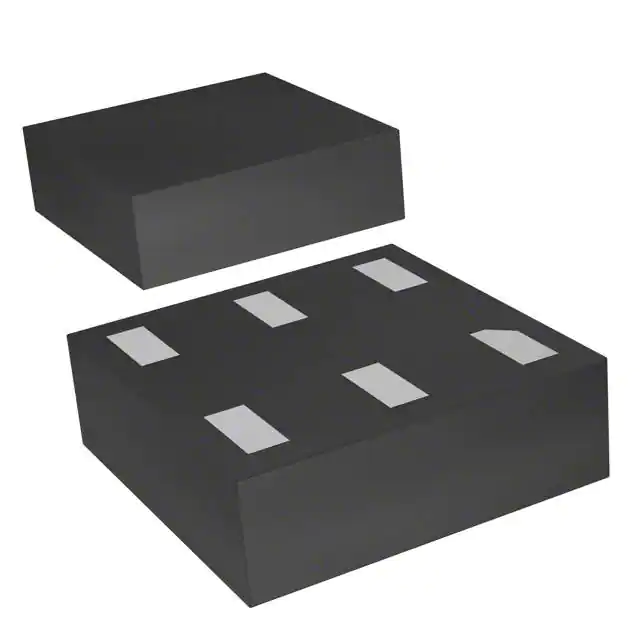

.jpg "ESDALC6V1-5T6")
|
ESDALC6V1-5T6TVS DIODE 3VWM 6MICRO DFN |
6,217 |
|
Datasheet | 6-XFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 3V | 6.1V | - | - | 25W | No | General Purpose | - | - | - | - | Surface Mount | 6-Micro DFN (1x1) |
|
|
SMCJ130AE3/TR13TVS DIODE 130VWM 209VC DO214AB |
3,176 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 7.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ54AE3/TR13TVS DIODE 54VWM 87.1VC DO214AB |
3,229 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 17.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDB15TVS DIODE 15VWM 24VC 8-SO |
4,620 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 4 | - | 15V (Max) | 16.7V | 24V | 1A | 500W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SMF90A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,413 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 1.2A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
CDNBS08-SRDA05-6TVS DIODE 5VWM 13.5VC 8-SOIC |
9,207 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 6 | - | 5V | 6V | 13.5V | 42A (8/20µs) | 500W | Yes | Ethernet | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
CDNBS08-SRDA3.3-6TVS DIODE 3.3VWM 10.9VC 8-SOIC |
9,795 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 6 | - | 3.3V | 4V | 10.9V | 43A (8/20µs) | 500W | Yes | Ethernet | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
CDNBS08-SMDA05-6TVS DIODE 5VWM 18VC 8-SOIC |
3,356 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 6 | 5 | 5V (Max) | 6V | 18V | 17A (8/20µs) | 350W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
5.0SMDJ12ASURFACE MOUNT TRANSIENT VOLTAGE |
9,393 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
|
5.0SMDJ13ASURFACE MOUNT TRANSIENT VOLTAGE |
2,897 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
SMDA36C-4TVS DIODE 36VWM 60VC 8-SO |
2,473 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SMDAXXC-4 | Tape & Reel (TR) | Active | Zener | - | 4 | 36V (Max) | 40V | 60V | 1A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
P6KE250CARLTVS DIODE 213VWM 442VC DO15 |
2,020 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 213V | 237V | 442V | 9A (8/20µs) | 600W | No | General Purpose | 155pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg "1.5SMC170A")
|
1.5SMC170ATVS DIODE 145VWM 234VC DO214AB |
4,074 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 145V | 162V | 234V | 6.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
P4SMA33CA R3GTVS DIODE 28.2VWM 45.7VC DO214AC |
1,104 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 28.2V | 31.35V | 45.7V | 9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESDA6V1M6TVS DIODE 3VWM 6UQFN |
8,309 |
|
Datasheet | 6-UFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V | 6.1V | - | - | 100W | No | General Purpose | 70pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-µQFN (1.45x1.0) |
|
P6KE440CATVS DIODE 376VWM 602VC DO15 |
6,853 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 1A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
SMA6J100A-TRTVS DIODE 100VWM 172VC SMA |
7,339 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 100V | 111V | 172V | 19A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
