TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA6V5CA-TTVS DIODE 6.5VWM 11.2VC DO15 |
2,100 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 44.7A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SA10CA-TTVS DIODE 10VWM 17VC DO15 |
7,933 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10V | 11.1V | 17V | 29.4A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SA12CA-TTVS DIODE 12VWM 19.9VC DO15 |
7,368 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V | 13.3V | 19.9V | 25.1A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SA15CA-TTVS DIODE 15VWM 24.4VC DO15 |
3,039 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V | 16.7V | 24.4V | 20.6A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
SA30CA-TTVS DIODE 30VWM 48.4VC DO15 |
7,091 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 30V | 33.3V | 48.4V | 10.3A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
1PMT12AT1GTVS DIODE 12VWM 19.9VC POWERMITE |
8,339 |
|
Datasheet | DO-216AA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 19.9V | - | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Powermite |
|
|
1PMT5.0AT1GTVS DIODE 5VWM 9.2VC POWERMITE |
2,422 |
|
Datasheet | DO-216AA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | - | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Powermite |
|
P6KE300ATVS DIODE 256VWM 414VC DO15 |
9,092 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 256V | 285V | 414V | 1.5A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
1.5SMC51AT3GTVS DIODE 43.6VWM 70.1VC SMC |
4,197 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 21.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
ESDALC6V1F2TVS DIODE 3VWM 5FLIPCHIP |
7,710 |
|
Datasheet | 5-WFBGA, FCBGA | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V | 6.1V | - | - | 25W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-FlipChip (1.32x0.95) |
|
TV06B120JB-GTVS DIODE 12VWM 19.9VC DO214AA |
7,960 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.15A | 600W | No | General Purpose | - | - | - | - | Surface Mount | DO-214AA (SMB) |
|
|
TV06B130JB-GTVS DIODE 13VWM 21.5VC DO214AA |
6,671 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 27.91A | 600W | No | General Purpose | - | - | - | - | Surface Mount | DO-214AA (SMB) |
.jpg "SMCJ8.5AE3/TR13")
|
SMCJ8.5AE3/TR13TVS DIODE 8.5VWM 13.6VC DO214AB |
7,476 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
UCLAMP3311Z.TNTTVS DIODE 3.3V 7.5V SLP0603P2X3A |
7,368 |
|
Datasheet | 0201 (0603 Metric) | uClamp®, Z-Pak™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 3.65V | 7.5V | 4A (8/20µs) | 30W | No | General Purpose | 6pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP0603P2X3 |
|

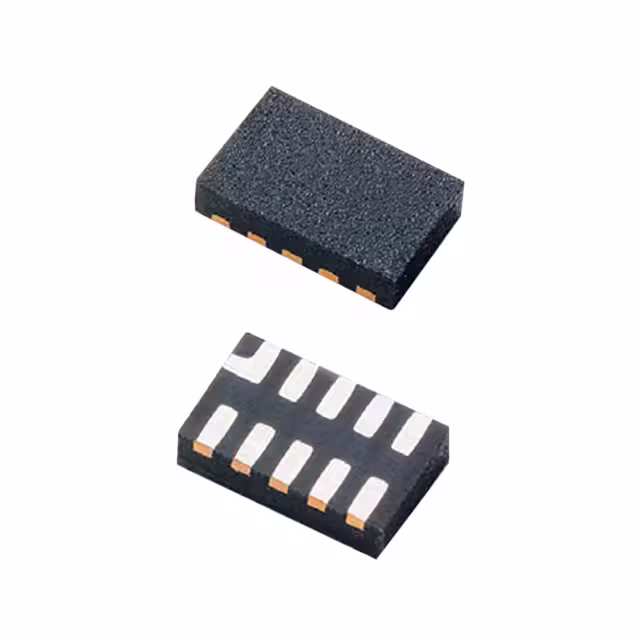

SP8142-04UTGTVS DIODE 5VWM 10.3VC 10UDFN |
4,410 |
|
Datasheet | 10-UFDFN | SP814X, SPA® | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | - | 10.3V (Typ) | 2A (8/20µs) | - | Yes | HDMI | 1pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-µDFN (2.2x1.35) |
|
P6KE350A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
5,949 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 300V | 332V | 482V | 1.3A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
DS9502P+TVS DIODE 7.5VWM 6TSOC |
6,515 |
|
Datasheet | 6-SMD, J-Lead | - | Tube | Obsolete | Zener | 1 | - | 7.5V | 9V (Typ) | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOC |
|
P4SMA24AHM3_A/ITVS DIODE 20.5VWM 33.2VC DO214AC |
4,729 |
|
Datasheet | DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 12A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMDJ90CA1CH 90V BIDIRECTIONAL 3000W SMD |
2,102 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 20.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
|
SMDJ160CA1CH 160V BIDIRECTIONAL 3000W SMD |
2,321 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 11.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
