TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0L6UAS,118TVS DIODE 5VWM 15VC 8-TSSOP |
4,284 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 6 | - | 5V (Max) | 6.4V | 15V | 2.5A (8/20µs) | 35W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
1.5SMC56AT3GTVS DIODE 47.8VWM 77VC SMC |
3,744 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 47.8V | 53.2V | 77V | 19.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
DMF05LCFLP-7TVS DIODE 5VWM 12.5VC 6DFN1616 |
3,868 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Min) | 6V | 12.5V | - | 70W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1616-6 |
|
ESDLC12VD3-TPTVS DIODE 12VWM 28.6VC SOD323 |
6,110 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 28.6V | 11A (8/20µs) | 350W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

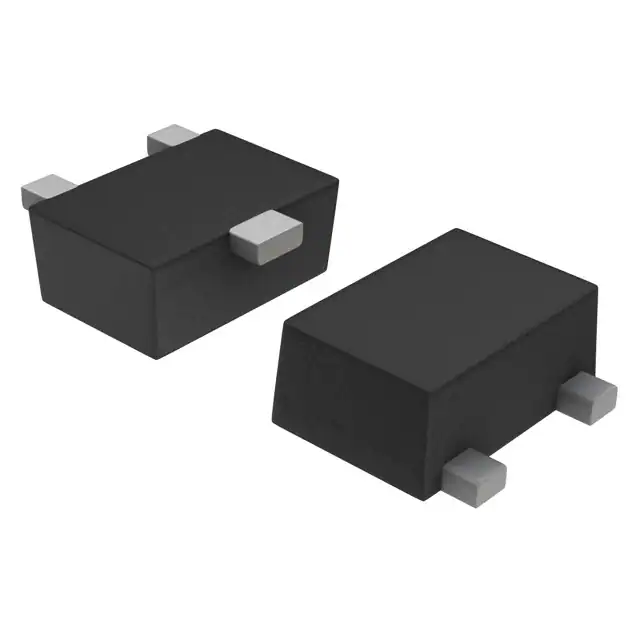

ESDLC5V0T7-TPTVS DIODE 5VWM 20VC SOT723 |
8,947 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V (Max) | 5.6V | 20V | 5A (8/20µs) | 110W | No | General Purpose | 2.8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-723 |
|
ESDLC5V0T5-TPTVS DIODE 5VWM 20VC SOT523 |
8,405 |
|
Datasheet | SOT-523 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V (Max) | 5.6V | 20V | 5A (8/20µs) | 125W | No | General Purpose | 1.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
;;2.jpg "SMA6F18A")
|
SMA6F18ATVS DIODE 18VWM 29.2VC SMAFLAT |
5,186 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18V | 20V | 29.2V | 21.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F85ATVS DIODE 85VWM 137VC SMAFLAT |
6,714 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 85V (Max) | 95V | 137V | 4.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
P6SMB100CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
8,015 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB10CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,930 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB68CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,608 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMF160A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
6,249 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 700mA | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
P6SMB9.1CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
6,422 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB18CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,363 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB110CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,548 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB62CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,654 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 7.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB47CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,624 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 40.2V | 44.7V | 64.8V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB20CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,161 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 17.1V | 19V | 27.7V | 22A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB75CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
6,931 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 64.1V | 71.3V | 103V | 5.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB82CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,175 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 5.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
