TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PGSMAJ5.0CAHE3GTVS DIODE 5VWM 9.2VC DO214AC |
4,921 |
|
Datasheet | DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
;;2.jpg "SMA4F12A")
|
SMA4F12ATVS DIODE 12VWM 25.3VC SMAFLAT |
2,602 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.3V | 25.3V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F15ATVS DIODE 15VWM 32.5VC SMAFLAT |
4,247 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 16.7V | 32.5V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F18ATVS DIODE 18VWM 39.3VC SMAFLAT |
3,431 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18V | 20V | 39.3V | 13.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F26ATVS DIODE 26VWM 53.5VC SMAFLAT |
2,412 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 26V | 28.9V | 53.5V | 9.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F31ATVS DIODE 31VWM 65VC SMAFLAT |
7,769 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 31V | 34.2V | 65V | 8A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F5.0ATVS DIODE 5VWM 13.4VC SMAFLAT |
5,611 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 13.4V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F11ATVS DIODE 11VWM 18VC SMAFLAT |
2,748 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 11V | 12.3V | 18V | 33.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F20ATVS DIODE 20VWM 32.4VC SMAFLAT |
2,908 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20V | 22.2V | 32.4V | 19.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F22ATVS DIODE 22VWM 35.5VC SMAFLAT |
4,296 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 22V | 24.4V | 35.5V | 17.7A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F31ATVS DIODE 31VWM 50.2VC SMAFLAT |
2,758 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 31V | 34.2V | 50.2V | 12.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F33ATVS DIODE 33VWM 53.3VC SMAFLAT |
6,902 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|

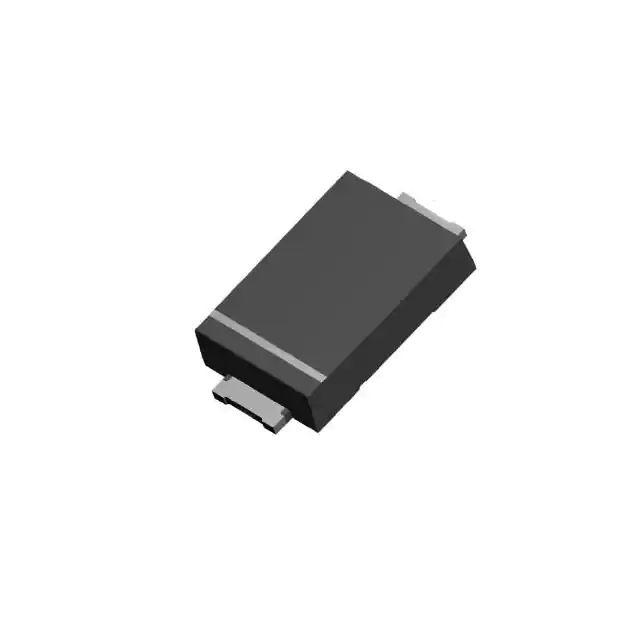

SMA6F30ATVS DIODE 30VWM 48.4VC SMAFLAT |
8,235 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30V | 33.2V | 48.4V | 13A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA6F6.0ATVS DIODE 6VWM 10.3VC SMAFLAT |
2,472 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V | 6.7V | 10.3V | 61A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
ESDL1531MX4T5GTVS DIODE 3.3VWM 6.5VC 2X4DFN |
9,653 |
|
Datasheet | 01005 (0402 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V | 5.5V | 6.5V | 5.7A (8/20µs) | - | No | General Purpose | 0.15pF @ 1MHz | -55°C ~ 150°C | - | - | Surface Mount | 2-X4DFN (0.45x0.24) |
|
RESD1CANT116TVS DIODE 24VWM 44VC SSD3 |
6,849 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.2V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 30pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SSD3 |
|
P1CH6.5A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
3,290 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 13.4A | 150W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323HE |
|
P6KE18A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
9,900 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
P1CH12A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
5,632 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 7.5A | 150W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323HE |
|
|
P1CH33A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
4,459 |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 2.8A | 150W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323HE |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
