TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF36AT1GTVS DIODE 36VWM 58.1VC SOD123FL |
6,929 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 36V | 40V | 58.1V | 3.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF58AT1GTVS DIODE 58VWM 93.6VC SOD123FL |
9,414 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF6.5AT1GTVS DIODE 6.5VWM 11.2VC SOD123FL |
8,286 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 17.9A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|

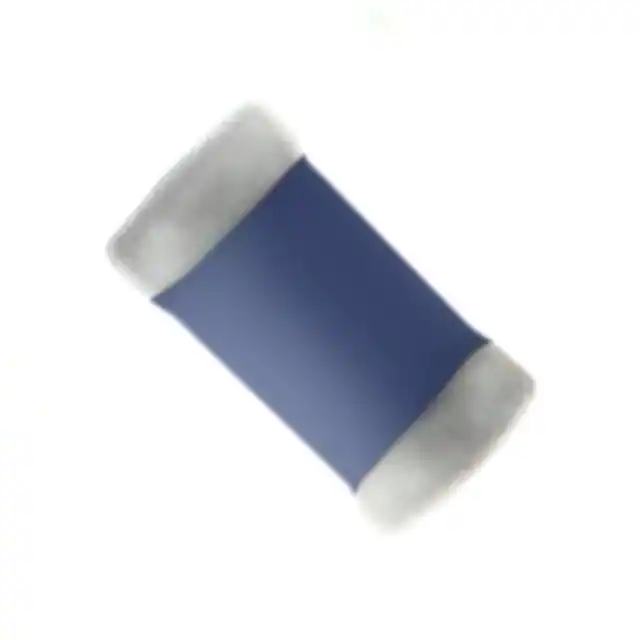

PESD0402-060TVS DIODE 6VWM 0402 |
3,186 |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 6V | - | - | - | - | No | RF Antenna | - | -55°C ~ 110°C (TJ) | - | - | Surface Mount | 0402 |
|
1SMA11AT3GTVS DIODE 11VWM 18.2VC SMA |
5,074 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | General Purpose | 1000pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
1SMA20CAT3GTVS DIODE 20VWM 32.4VC SMA |
5,814 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | 305pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
1SMB48CAT3GTVS DIODE 48VWM 77.4VC SMB |
3,849 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

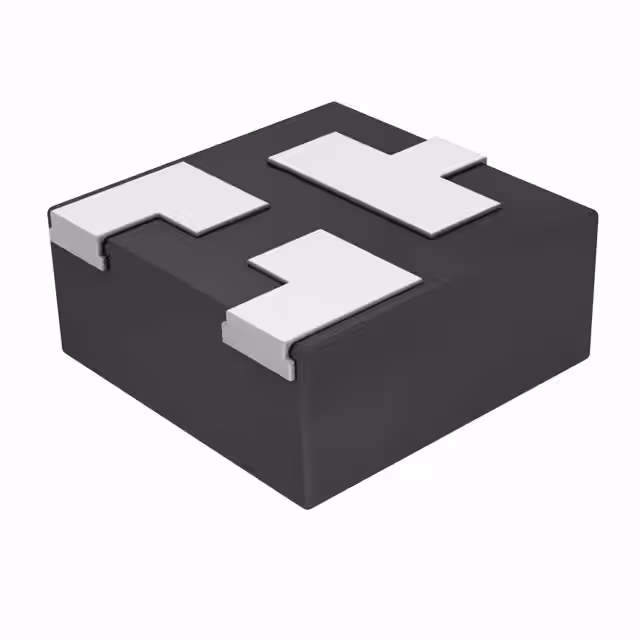

GL15-HT3-GS08TVS DIODE 15VWM 33VC LLP75-3B |
7,801 |
|
Datasheet | 3-WDFN | - | Cut Tape (CT) | Obsolete | Zener | 1 | - | 15V | 16.7V | 33V | 10A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | LLP75-3B |
|
GSOT03-HT3-GS08TVS DIODE 3.3VWM 12.3VC LLP75-3B |
9,461 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Min) | 4V | 12.3V | 30A (8/20µs) | 369W | No | - | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT05-HT3-GS08TVS DIODE 5VWM 16VC LLP75-3B |
5,900 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Min) | 6V | 16V | 30A (8/20µs) | 480W | No | - | 260pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT12-HT3-GS08TVS DIODE 12VWM 26VC LLP75-3B |
7,118 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V (Min) | 13.5V | 26V | 12A (8/20µs) | 312W | No | - | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
|
GSOT15-HT3-GS08TVS DIODE 15VWM 28.8VC LLP75-3B |
7,891 |
|
Datasheet | 3-WDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V (Min) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | - | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LLP75-3B |
|
AOZ8205KITVS DIODE 5VWM 7.5VC SC89-6 |
8,101 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Max) | 6V | 7.5V | 5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-89-6 |
|
PESD3V3L1UA,115TVS DIODE 3.3VWM 11VC SOD323 |
6,832 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5.3V | 11V | 4.5A (8/20µs) | 45W | No | - | 34pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
;;2.jpg "P6SMB11CA-E3/5B")
|
P6SMB11CA-E3/5BTVS DIODE 9.4VWM 15.6VC DO214AA |
7,858 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 9.4V | 10.5V | 15.6V | 38.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB130CA-E3/52TVS DIODE 111VWM 179VC DO214AA |
8,793 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 3.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB170CA-E3/52TVS DIODE 145VWM 234VC DO214AA |
2,394 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 2.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMB180CA-E3/52TVS DIODE 154VWM 246VC DO214AA |
7,591 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6SMB22CA-E3/52TVS DIODE 18.8VWM 30.6VC DO214AA |
4,772 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB9.1CA-E3/52TVS DIODE 7.78VWM 13.4VC DO214AA |
7,089 |
|
Datasheet | DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 44.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
