TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

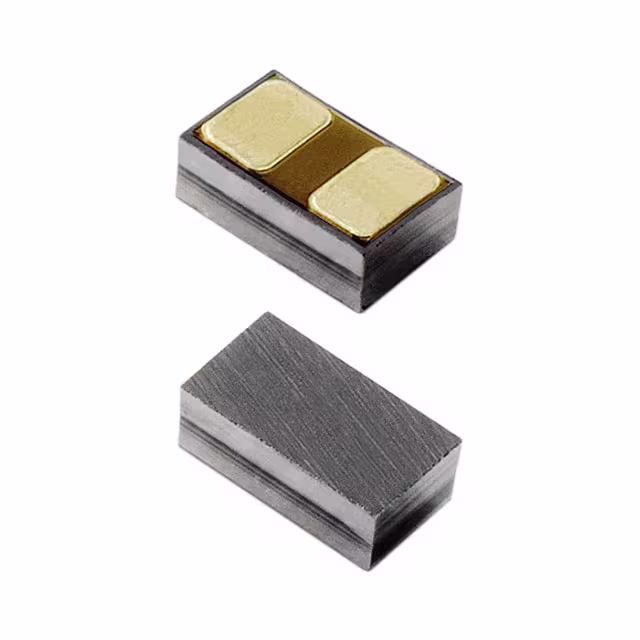

SP1014-01WTGTVS DIODE 5VWM 11VC 2FLIPCHIP |
3,372 |
|
Datasheet | 0201 (0603 Metric) | SP1014, SPA® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 7V | 11V | 2A (8/20µs) | - | No | General Purpose | 6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
P4SMA82CATVS DIODE 70.1VWM 113VC DO214AC |
6,647 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 3.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD2NFC-SFYLTVS DIODE 24VWM DSN0603-2 |
5,120 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 24V (Max) | - | - | - | - | No | - | - | - | - | - | Surface Mount | DSN0603-2 |
|
P4SMAJ9.0ADF-13TVS DIODE 9VWM 15.4VC D-FLAT |
3,657 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ7.5ADF-13TVS DIODE 7.5VWM 12.9VC D-FLAT |
8,928 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 31A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ22ADF-13TVS DIODE 22VWM 35.5VC D-FLAT |
7,669 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ28ADF-13TVS DIODE 28VWM 45.4VC D-FLAT |
9,562 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
P6KE180A A0GTVS DIODE 154VWM 246VC DO204AC |
6,801 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 154V | 171V | 246V | 2.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE200A A0GTVS DIODE 171VWM 274VC DO204AC |
3,322 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE36A A0GTVS DIODE 30.8VWM 49.9VC DO204AC |
2,206 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE43A A0GTVS DIODE 36.8VWM 59.3VC DO204AC |
7,063 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE62A A0GTVS DIODE 53VWM 85VC DO204AC |
2,700 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMAJ17A-QTVS DIODE 17VWM 27.6VC SMA |
6,311 |
|
Datasheet | DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
VESD33A2-03SHG3-08TVS DIODE 33VWM 62.5VC SOT23 |
5,454 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 33V (Max) | 35.5V | 62.5V | 1.6A (8/20µs) | 100W | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
P4SMAJ33CA-AU_R1_000A1SMA, TVS |
6,337 |
|
Datasheet | DO-214AC, SMA | P4SMAJ33CA-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

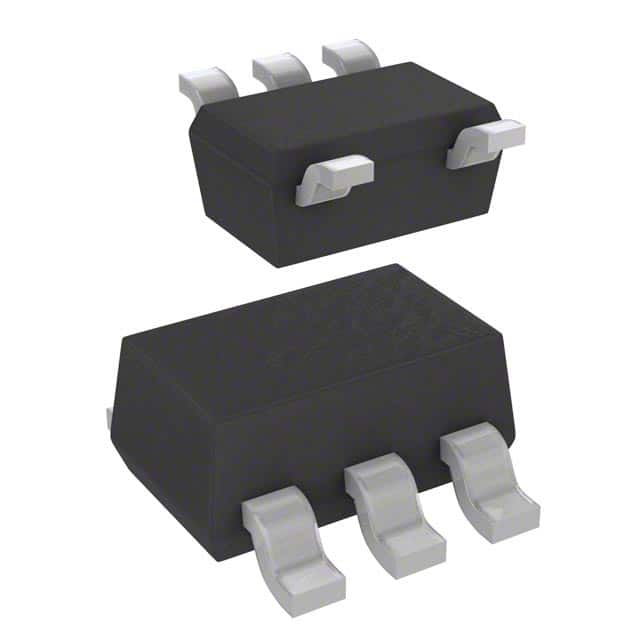

PE1805C4C5_R1_00001ULTRA LOW CAPACITANCE ESD PROTEC |
5,326 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 28V | 5A (8/20µs) | - | Yes | Ethernet, USB | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-353 |
|
SZESD7571N2T5GBI-DIRECTIONAL, 7V ESD PROTECTIO |
5,616 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 7V | 15V | - | - | No | USB | 3500pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 2-X2DFN (1x0.6) |
|
SMBG10CAHE3/5BTVS DIODE 10VWM 17VC DO215AA |
2,106 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG11CAHE3/5BTVS DIODE 11VWM 18.2VC DO215AA |
7,681 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 33A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG12CAHE3/5BTVS DIODE 12VWM 19.9VC DO215AA |
6,089 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
