TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE11ATVS DIODE 9.4VWM 15.6VC DO15 |
8,416 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9.4V | 10.5V | 15.6V | 38A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
P6KE68ATVS DIODE 58.1VWM 92VC DO15 |
5,483 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
P6KE9V1ATVS DIODE 7.78VWM 13.4VC DO15 |
8,167 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.78V | 8.65V | 13.4V | 45A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
P6KE8V2ATVS DIODE 7.02VWM 12.1VC DO15 |
6,386 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.02V | 7.79V | 12.1V | 50A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
P6KE7V5ATVS DIODE 6.4VWM 11.3VC DO15 |
5,429 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 53.1A | 600W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|

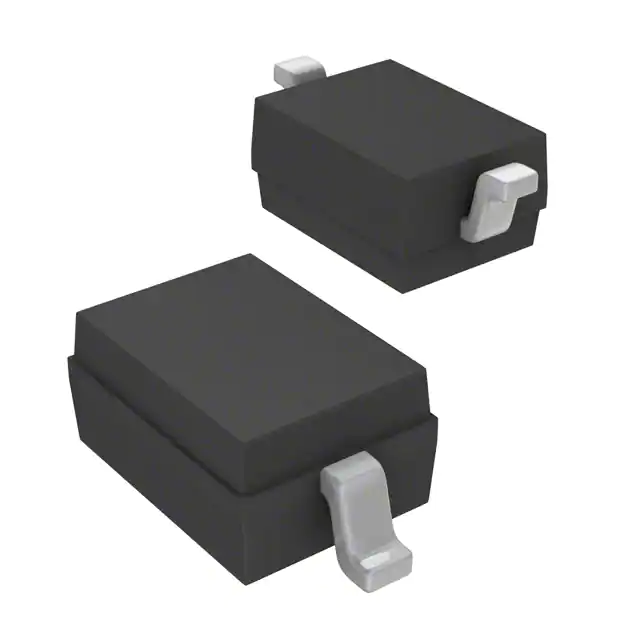

ESD5V0S1U03WE6327HTSA1TVS DIODE 5VWM 14VC SOD323-2 |
5,988 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.5V | 14V | 40A (8/20µs) | 600W | No | General Purpose | 430pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOD323-3D |
|
|
P6SMB7.5AT3GTVS DIODE 6.4VWM 11.3VC SMB |
3,655 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 53A | 600W | No | General Purpose | 2180pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
TV04A151JB-GTVS DIODE 150VWM 243VC SMA |
6,309 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167V | 243V | 1.65A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
TV04A5V0JB-GTVS DIODE 5VWM 9.2VC SMA |
2,582 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.46V | 9.2V | 43.48A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD3V3U1U-02LRH E6327TVS DIODE 3.3VWM 28VC TSLP-2-7 |
7,982 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5V | 28V (Typ) | 3A (8/20µs) | - | No | Ethernet, HDMI | 0.4pF @ 1GHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-7 |
|
|
ESD5V3U1U-02LRH E6327TVS DIODE 5.3VWM 28VC TSLP-2-7 |
6,164 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V (Max) | 6V | 28V (Typ) | 3A (8/20µs) | - | No | Ethernet, HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-7 |
|
|
ESD5V3S1B02LRHE6327XTSA1TVS DIODE 5.3VWM 13VC TSLP-2 |
4,874 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 6V | 13V | 5.5A (8/20µs) | 80W | No | General Purpose | 17.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-17 |
|
ESD1P0RFWH6327XTSA1TVS DIODE 70VWM 15VC SOT323-3 |
3,878 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 70V (Max) | - | 15V | 10A (8/20µs) | - | No | Ethernet, HDMI, RF Antenna | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
|
ESD5V3S1U-02LRH E6327TVS DIODE 5.3VWM 11VC TSLP-2-17 |
2,769 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V (Max) | 5.7V | 11V | 5.5A (8/20µs) | 66W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-17 |
|
|
ESD3V3S1B02LRHE6327XTSA1TVS DIODE 3.3VWM 6.8VC TSLP-2-17 |
8,212 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | - | 6.8V (Typ) | 8A (8/20µs) | - | No | General Purpose | 14pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-17 |
|
ESD203B102ELSE6327XTSA1TVS DIODE 13.2VWM 23VC TSSLP-2-4 |
6,754 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 13.2V (Max) | 13.7V | 23V | 5A (8/20µs) | 115W | No | General Purpose | 6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-4 |
|
ATV02W240-HFTVS DIODE 24VWM 38.9VC SOD123 |
7,135 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.14A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
ATV02W260-HFTVS DIODE 26VWM 42.1VC SOD123 |
5,413 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 4.75A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
ATV02W400-HFTVS DIODE 40VWM 64.5VC SOD123 |
3,662 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 3.1A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|

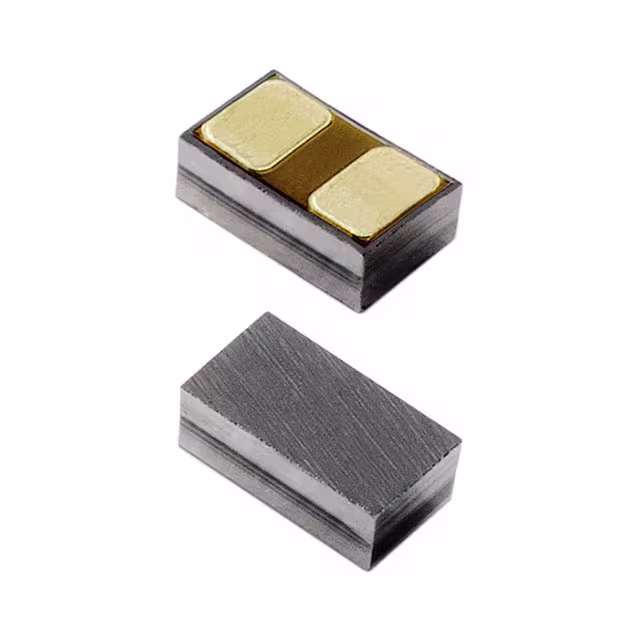

SP1013-01WTGTVS DIODE 5VWM 9.5VC 2FLIPCHIP |
8,072 |
|
Datasheet | 0201 (0603 Metric) | SP1013, SPA® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 7V | 9.5V | 2A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
