TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE51CA-E3/54TVS DIODE 43.6VWM 70.1VC DO204AC |
5,165 |
|
Datasheet | DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
ESDS302DBVRTVS DIODE 3.6VWM 3VC SOT23-5 |
3,864 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 4.5V | 3V (Typ) | 12A (8/20µs) | 85W | No | General Purpose | 2.3pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SM6T10CATVS DIODE 8.55VWM 14.5VC SMB |
3,502 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

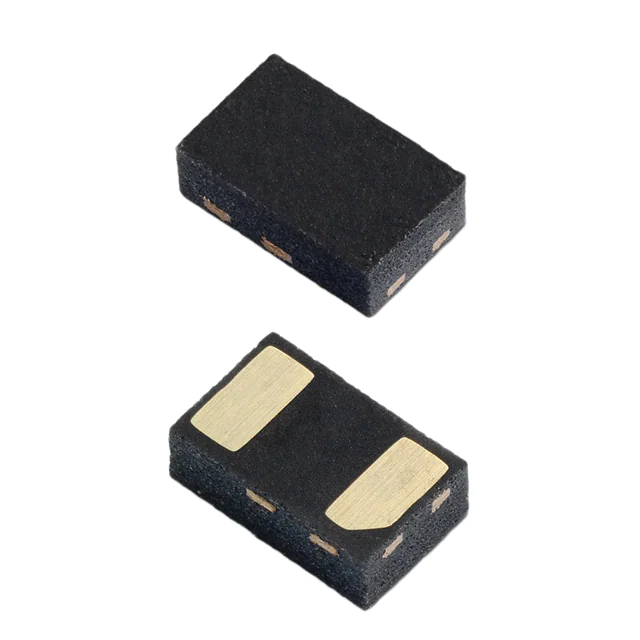

SC1105-01UTGTVS DIODE 5VWM 11.8VC 2DFN |
3,304 |
|
Datasheet | 0603 (1610 Metric) | SC11xx | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 11.8V (Typ) | 80A (8/20µs) | - | No | General Purpose | 660pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
1.5KE18ATVS DIODE 15.3VWM 32.5VC DO201 |
3,056 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 15.3V | 17.6V | 32.5V | 308A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4300pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SMCJ170ATVS DIODE 170VWM 275VC DO214AB |
3,020 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMF4L28ATVS DIODE 28VWM 45.4VC SOD123FL |
27,757 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
;;2.jpg "SMCJ24CA-Q")
|
SMCJ24CA-QTVS DIODE 24VWM 38.9VC DO214AB |
23,722 |
|
Datasheet | DO-214AB, SMC | SMCJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SMCJ43CATVS DIODE 43VWM 69.4VC DO214AB |
23,026 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 21.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD3E001DRYRTVS DIODE 5.5VWM 6SON |
20,848 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 11V | - | - | 90W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMS24CT1GTVS DIODE 24VWM 44VC 6TSOP |
18,055 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PESD2ETH1GXT-QRTVS DIODE 24VWM TO236AB |
17,703 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | - | - | 2.3A (8/20µs) | - | No | General Purpose | 7.7pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SMBJ5V0CATVS DIODE 5VWM 9.2VC DO214AA |
17,493 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ6V5ATVS DIODE 6.5VWM 11.2VC DO214AA |
15,410 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6KE13CATVS DIODE 11.1VWM 18.2VC DO204AC |
14,431 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TPD4E1B06DRLRTVS DIODE 5.5VWM 14.5VC 6SOT |
13,881 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 14.5V (Typ) | 3A (8/20µs) | 45W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
1.5SMC30CATVS DIODE 25.6VWM 41.4VC DO214AB |
12,629 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 36.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SA6.0CATVS DIODE 6VWM 10.3VC DO204AC |
11,399 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 49.5A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PTVS5V0P1UTP,115TVS DIODE 5VWM 9.2VC SOD128/CFP5 |
10,803 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMF5V0TRTVS DIODE 5VWM 9.2VC PMDU |
9,923 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9.2V | 21.7A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
