TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQ15C-01FTGTVS DIODE 15VWM 31VC SOD323 |
12,940 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | - | 31V | 12A (8/20µs) | 450W | No | CAN | 75pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMAJ30CA-E3/5ATVS DIODE 30VWM 48.4VC DO214AC |
12,083 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ440CATVS DIODE 440VWM 713VC DO214AA |
11,898 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | 492V | 713V | 1.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6KE43ATVS DO15 36.8V 600W UNIDIR |
11,690 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
SMBJ18CA-TRTVS DIODE 18VWM 29.2VC SMB |
11,667 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 21.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
CPDU12V0U-HFTVS DIODE 12VWM 24V 0603/SOD523F |
10,780 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
P6KE27ATVS DIODE 23.1VWM 37.5VC DO204AC |
10,700 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMBJ48A-TRTVS DIODE 48VWM 77.4VC SMB |
10,582 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 8.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
TPSMA6L24ATVS SMAF 24V 600W UNIDIR |
10,326 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
|
SMAJ12CA-E3/61TVS DIODE 12VWM 19.9VC DO214AC |
9,789 |
|
Datasheet | DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE39ATVS DIODE 33.3VWM 53.9VC DO204AC |
9,550 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
AQ1250-01ETGTVS DIODE ESD UNI 5V 50A SOD882 |
9,448 |
|
Datasheet | SOD-882 | AQ1250, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.2V | 10V | 50A (8/20µs) | - | No | - | 118pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
|
P6KE62ATVS DO15 53V 600W UNIDIR |
8,879 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
1.5SMC39CATVS DIODE 33.3VWM 53.9VC DO214AB |
8,856 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP3022-01ETG-NM5.3V 3A 20KV SOD882 BI-DIR TVS |
8,786 |
|
Datasheet | SOD-882 | SP3022 | Tape & Reel (TR) | Active | Zener | - | 1 | 5.3V (Max) | 7V | 13V (Typ) | 3A (8/20µs) | - | No | Ethernet, HDMI, USB | 0.35pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-882 |
.jpg "SZ1SMB36AT3G")
|
SZ1SMB36AT3GTVS DIODE 36VWM 58.1VC SMB |
8,559 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | - | 470pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
P6SMB36CAHTVS DIODE 30.8VWM 49.9VC DO214AA |
8,545 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 12.6A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ40CA-TRTVS DIODE 40VWM 64.5VC SMB |
7,985 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
;;2.jpg "P6KE18A")
|
P6KE18ATVS DIODE 15.3VWM 25.2VC DO204AC |
7,975 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

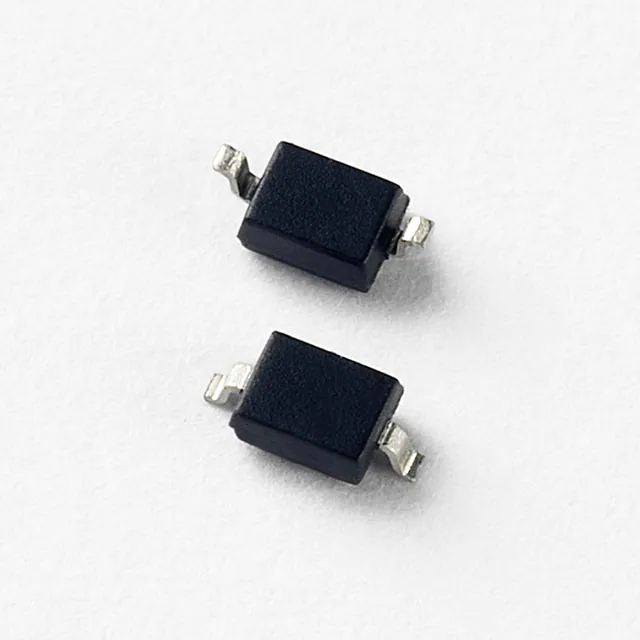

AQ3530-01FTGTVS DIODE 5VWM 15VC SOD323 |
7,652 |
|
Datasheet | SC-76, SOD-323 | AQ3530, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 7.5V | 15V | 2.5A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
