TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5SMC91A-E3/57TTVS DIODE 77.8VWM 125VC SMC |
3,692 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 12A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SM15T33A-E3/57TTVS DIODE 28.2VWM 45.7VC DO214AB |
9,558 |
|
Datasheet | DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 33A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE16CATVS DIODE 13.6VWM 22.5VC DO201AD |
2,696 |
|
Datasheet | DO-201AD, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 1 | 13.6V | 15.2V | 22.5V | 67A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
SMM4F13A-TRTVS DIODE 13VWM 27.2VC DO222-AA |
2,714 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.3V | 27.2V | 85A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat (DO222-AA) |
|
1.5KE30CA-TPTVS DIODE 25.6VWM 41.4VC DO201AE |
6,898 |
|
Datasheet | DO-201AE, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE110CATVS DIODE 94VWM 152VC DO201AD |
8,347 |
|
Datasheet | DO-201AD, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 1 | 94V | 105V | 152V | 9.9A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
VS24VUA1LAMTFTRTVS DIODE 24VWM 38.9VC PMDTM |
3,042 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.4A | 600W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDTM |
|
SMBJ48CA-QTVS DIODE 48VWM 77.4VC SMB |
4,170 |
|
Datasheet | DO-214AA, SMB | SMBJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
SMBG18A-E3/52TVS DIODE 18VWM 29.2VC DO215AA |
9,725 |
|
Datasheet | DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBG) |
|
|
SMCJ14CA-E3/57TTVS DIODE 14VWM 23.2VC DO214AB |
2,113 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 64.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ54CA-TPTVS DIODE 54VWM 87.1VC DO214AB |
3,391 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 17.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC13CA-E3/57TTVS DIODE 11.1VWM 18.2VC SMC |
8,618 |
|
Datasheet | DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 82.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
.jpg "SMCJ1.5KE27A-TP")
|
SMCJ1.5KE27A-TPTVS DIODE 23.1VWM 37.5VC DO214AB |
6,915 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 40.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ1.5KE47A-TPTVS DIODE 40.2VWM 64.8VC DO214AB |
6,724 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 23.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMCJ1.5KE68CA-TPTVS DIODE 58.1VWM 92VC DO214AB |
2,874 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 16.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

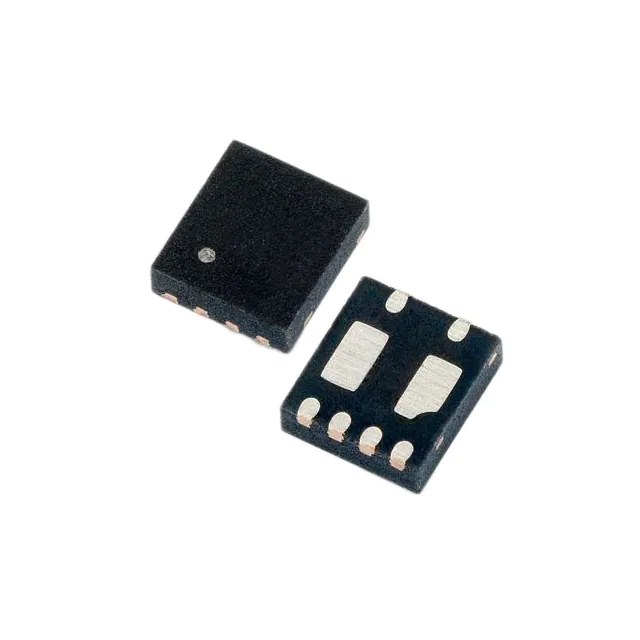

SP1224-01UTGTVS DIODE 22VWM 37VC 6UDFN |
8,198 |
|
Datasheet | 6-UFDFN Exposed Pad | SP1220, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24V | 37V | 100A (8/20µs) | 3700W (3.7kW) | No | General Purpose | 770pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-µDFN (1.8x2) |
|
|
SMCJ58CATVS DIODE 58VWM 93.6VC SMC |
6,369 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMA6J70A-TRTVS DIODE 70VWM 120VC SMA |
5,252 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 120V | 27A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE400ARLTVS DIODE 342VWM 706VC DO15 |
5,154 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 706V | 5.7A (8/20µs) | 600W | No | General Purpose | 360pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMM4F10A-TRTVS DIODE 10VWM 21.7VC DO222-AA |
8,016 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.4V | 21.7V | 106A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat (DO222-AA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
