TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg "1.5SMC10A")
|
1.5SMC10ATVS DIODE 8.55VWM 14.5VC DO214AB |
7,646 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 8.55V | 9.5V | 14.5V | 104.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMBJ6.0A-TPTVS DIODE 6VWM 10.3VC DO214AA |
2,901 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ60A-TPTVS DIODE 60VWM 96.8VC DO214AA |
5,569 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 6.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ90CA-TPTVS DIODE 90VWM 146VC DO214AA |
9,141 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 4.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
;;2.jpg "SM6T220A-E3/52")
|
SM6T220A-E3/52TVS DIODE 188VWM 328VC DO214AA |
2,999 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 188V | 209V | 328V | 2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SZP6SMB51AT3GTVS DIODE 43.6VWM 70.1VC SMB |
9,574 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | - | 395pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
.jpg "SZ1SMB6.5AT3G")
|
SZ1SMB6.5AT3GTVS DIODE 6.5VWM 11.2VC SMB |
4,870 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | - | 2140pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMBJ26CD-M3/ITVS DIODE 26VWM 41.6VC DO214AA |
9,630 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 29.3V | 41.6V | 14.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ28CD-M3/ITVS DIODE 28VWM 44.7VC DO214AA |
7,542 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.6V | 44.7V | 13.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
TPSMB22CA-VRTVS DIODE 22VWM 35.5VC DO214 TR |
6,821 |
|
Datasheet | DO-214AA, SMB | TPSMB-VR | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 16.9A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SMF7V0TRTVS DIODE 7VWM 12VC PMDU |
4,787 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.78V | 12V | 16.7A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
SMA6F18A-M3/6ATVS DIODE 18VWM 33.2VC DO221AC |
9,480 |
|
Datasheet | DO-221AC, SMA Flat Leads | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 33.2V | 102A (8/20µs) | 4000W (4kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-221AC (SlimSMA) |
|
SMPC40AN-M3/HTVS DIODE 40VWM 64.5VC TO277A |
8,936 |
|
Datasheet | TO-277, 3-PowerDFN | TransZorb®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 23.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-277A (SMPC) |
|
|
SMF11VTRTVS DIODE 11VWM 18.2VC PMDU |
6,239 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 11V (Max) | 12.2V | 18.2V | 11A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
SA28ATVS DIODE 28VWM 45.4VC DO204AC |
2,096 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 11.2A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

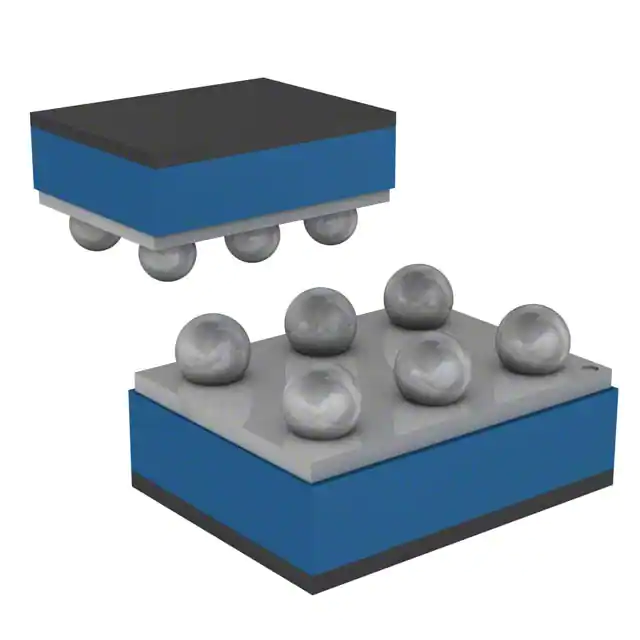

DSILC6-4F2TVS DIODE 5VWM 6FLIPCHIP |
2,387 |
|
Datasheet | 6-UFBGA, FCBGA | DSI | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | - | - | 120W | Yes | General Purpose | 2.5pF @ 1MHz | - | - | - | Surface Mount | 6-FlipChip (1.57x1.1) |
|
|
SM6T24A-E3/52TVS DIODE 20.5VWM 33.2VC DO214AA |
7,221 |
|
Datasheet | DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 18A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMA6J5.0A-TPTVS DIODE 5VWM 9.2VC DO214AC |
2,945 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 175°C | - | - | Surface Mount | DO-214AC (SMA) |
|
SMA6J30AFL-TPTVS DIODE 30VWM 48.4VC DO221AC |
7,062 |
|
Datasheet | DO-221AC, SMA Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC (SMA-FL) |
|
P6KE9.1CA-TPTVS DIODE 7.78VWM 13.4VC DO15 |
8,476 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 45A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
