TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg "SMBJ54D-M3/H")
|
SMBJ54D-M3/HTVS DIODE 54VWM 85.9VC DO214AA |
2,653 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60.9V | 85.9V | 7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ78D-M3/ITVS DIODE 78VWM 124VC DO214AA |
6,966 |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 88.1V | 124V | 4.86A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
VTVS12ASMF-HM3-08TVS DIODE 12.4VWM 20.1VC DO219AB |
8,871 |
|
Datasheet | DO-219AB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 12.4V | 14V | 20.1V | 19.01A | 400W | No | - | 807pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
|
VTVS36ASMF-HM3-08TVS DIODE 36VWM 61VC DO219AB |
5,458 |
|
Datasheet | DO-219AB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.9V | 61V | 6.24A | 400W | No | - | 342pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
ESDBV5V0D5-TPTVS DIODE 5VWM 13VC SOD523 |
6,679 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | 13V | 4A (8/20µs) | 52W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMAJ40CA-HFTVS DIODE 40VWM 64.5VC DO214AC |
7,023 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF22VTFTRTVS DIODE 22VWM 35.5VC PMDU |
1,955 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 5.6A | 200W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDU |
|
SMCJ6.0A-E3/57TTVS DIODE 6VWM 10.3VC DO214AB |
5,075 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 145.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMBJ9.0CATVS DIODE 9VWM 15.4VC SMB |
2,308 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 9V | 10V | 15.4V | 39A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|

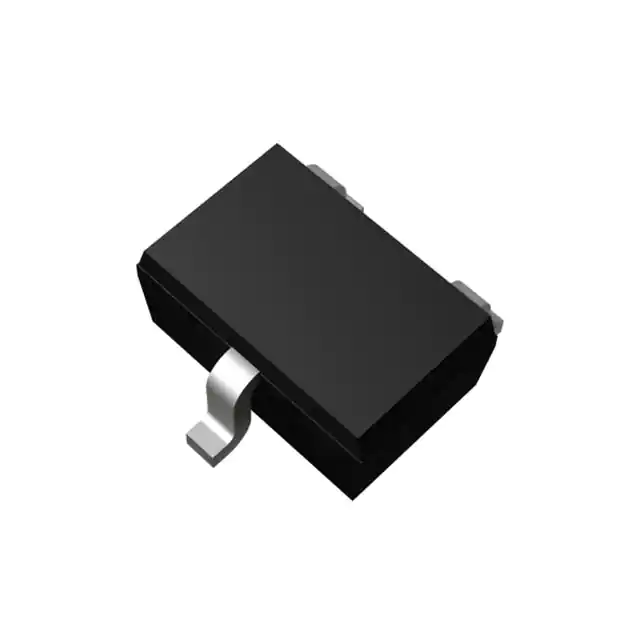

UMZC6.8NFHT106TVS DIODE 3.5VWM UMD3 |
2,142 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.5V | 6.47V | - | - | - | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | UMD3 |
|
ESDA14V2-4BF3TVS DIODE 12VWM 5FLIPCHIP |
2,316 |
|
Datasheet | 5-WFBGA, FCBGA | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 12V | 14.2V | - | - | 50W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-FlipChip (0.94x0.94) |
|
SM4T82CAYTVS DIODE 70VWM 146VC SMA |
2,655 |
|
Datasheet | DO-214AC, SMA | SM4TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 146V | 16A (8/20µs) | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMA6F7.5A-M3/6ATVS DIODE 7.5VWM 17VC DO221AC |
4,327 |
|
Datasheet | DO-221AC, SMA Flat Leads | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 17V | 235A (8/20µs) | 4000W (4kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-221AC (SlimSMA) |
|
P4SMA39CA-QTVS DIODE 33.3VWM 53.9VC SMA |
3,672 |
|
Datasheet | DO-214AC, SMA | P4SMA-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 7.6A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P4SMA170ATVS DIODE 145VWM 234VC DO214AC |
3,377 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 145V | 162V | 234V | 1.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
;;2.jpg "P6KE33A-B")
|
P6KE33A-BTVS DIODE 28.2VWM 45.7VC DO204AC |
3,873 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SM24B-TPTVS DIODE 24VWM 50VC SOT23 |
7,231 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 27V | 50V | 4A (8/20µs) | 300W | No | General Purpose | 20pF @ 1MHz | - | - | - | Surface Mount | SOT-23 |
|
TPSMA36AHE3_B/HTVS DIODE 30.8VWM 49.9VC DO214AC |
6,538 |
|
Datasheet | DO-214AC, SMA | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
PESD4USB3U-TBRXTVS DIODE 3.3VWM DFN2510A-10 |
8,999 |
|
Datasheet | 10-XFDFN | - | Tape & Reel (TR) | Active | - | - | 4 | 3.3V | - | - | 7A (8/20µs) | - | No | - | 0.34pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | DFN2510A-10 |
|
P6SMB300CA/TR13P6SMB, DO-214AA, 256V, 414V, REE |
2,202 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 256V | 285V | 414V | 1.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
