TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ13CA-TRTVS DIODE 13VWM 21.5VC SMB |
6,020 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 29A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
MSMP8.0A-M3/89ATVS DIODE 8VWM 13.6VC MICROSMP |
5,509 |
|
Datasheet | DO-219AD | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 11A | 150W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-219AD (MicroSMP) |
|
VESD01A2-03GHG3-08TVS DIODE 1VWM 6.9VC SOT323 |
4,159 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 1V (Max) | 2.5V | 6.9V | 14.6A (8/20µs) | 100W | No | - | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
PESD15VS2UAT,215TVS DIODE 15VWM 40VC TO236AB |
4,058 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | General Purpose | 32pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
DF5A6.2F(TE85L,F)TVS DIODE 3VWM SMV |
7,489 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 5.8V | - | - | - | No | General Purpose | 55pF @ 1MHz | - | - | - | Surface Mount | SMV |
|
VS3V3BN1HST15RTVS DIODE 3.3VWM 19VC DSN0603-2 |
3,750 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6V | 19V | 3.5A (8/20µs) | 66W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | DSN0603-2, SOD-962, SMD0603 |
;;2.jpg "P6KE530CA")
|
P6KE530CATVS DIODE 451VWM 725VC DO204AC |
2,916 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 451V | 503.5V | 725V | 800mA | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
VESD01A2-03G-G3-08TVS DIODE 1VWM 6.9VC SOT323 |
6,115 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 1V (Max) | 2.5V | 6.9V | 14.6A (8/20µs) | 100W | No | - | 192pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
VESD16A2-03GHG3-08TVS DIODE 16VWM 28VC SOT323 |
3,829 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 16V (Max) | 17V | 28V | 3.6A (8/20µs) | 100W | No | - | 27pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
VESD33A2-03G-G3-08TVS DIODE 33VWM 62.5VC SOT23 |
6,798 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 33V (Max) | 35.5V | 62.5V | 1.6A (8/20µs) | 100W | No | - | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
STS321070U162TVS DIODE 7VWM 20VC SOD323 |
4,504 |
|
Datasheet | SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 20V | 25A (8/20µs) | 350W | No | General Purpose | 165pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
PESD2CANFD27U-QBZTVS DIODE 27VWM 45VC DFN1110D-3 |
4,198 |
|
Datasheet | 3-XDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 2 | 27V (Max) | 28V | 45V | 1.8A (8/20µs) | - | No | CAN | 3.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1110D-3 |
|
|
MMBZ33VCL,215TVS DIODE 26VWM 46VC TO236AB |
4,996 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 26V (Max) | 31.35V | 46V | 870mA | 40W | No | - | 45pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
VS3V3BT1FST27NTVS DIODE 3.3VWM 7.5VC SMD0402 |
8,128 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 7.5V | 2.8A (8/20µs) | 21W | No | General Purpose | 4.3pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD0402 |
|

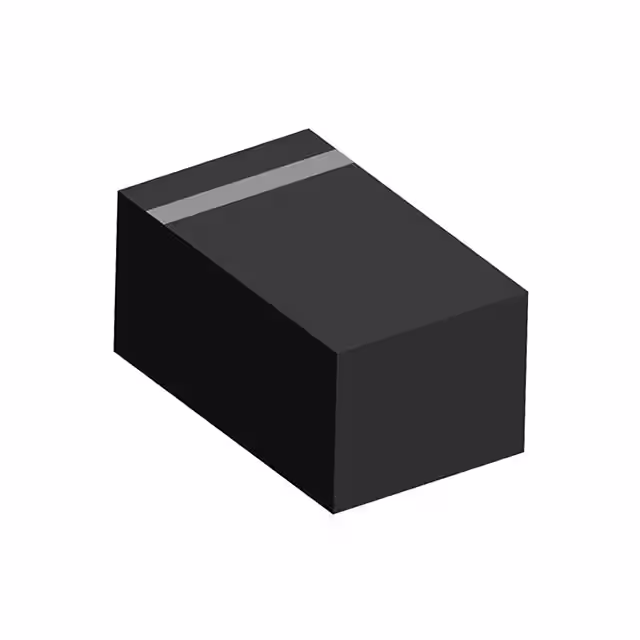

STN102050UL80TVS DIODE 5VWM 12VC DFN1006-2L |
3,475 |
|
Datasheet | 0402 (1006 Metric) | ST | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | Yes | DVI, USB | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2L |
|
|
VESD12A2-03GHG3-08TVS DIODE 12VWM 22.7VC SOT323 |
9,127 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 13.9V | 22.7V | 4.4A (8/20µs) | 100W | No | - | 33pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
ACPDZC12V0B-HFAUTOMOTIVE DIODE ESD 12VWM 20VC |
3,251 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 12.2V | 28V | 4A (8/20µs) | 112W | No | - | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0201/DFN0603 |
|
|
ACPDUC5V0USP-HFTVS DIODE 5VWM 20V 0603C/SOD523F |
3,482 |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.4V | 20V | 3A (8/20µs) | 60W | No | - | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0603C/SOD-523F |
|
824521700TVS DIODE 7VWM 12VC DO214AA |
2,283 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 8.19V (Typ) | 12V | 50A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521431TVS DIODE 43VWM 69.4VC DO214AA |
4,359 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 43V (Max) | 50.3V (Typ) | 69.4V | 8.7A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
