TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3KASMC33AHE3_B/HTVS DIODE 33VWM 53.3VC DO214AB |
3,306 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 56.3A | 3000W (3kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
SMC5K54CA-M3/HTVS DIODE 54VWM 87.1VC DO214AB |
1,042 |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 57.4A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
RCLAMP03354P.ATVS DIODE |
8,556 |
|
Datasheet | 10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5.5V | 7V | 10A (8/20µs) | 70W | No | HDMI2, USB 3.2 | 0.28pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
824551131TVS DIODE 13VWM 21.5VC DO214AB |
6,863 |
|
Datasheet | DO-214AB, SMC | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 13V (Max) | 15.15V (Typ) | 21.5V | 139.5A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
|
824550541TVS DIODE 54VWM 87.1VC DO214AB |
6,647 |
|
Datasheet | DO-214AB, SMC | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 54V (Max) | 63.15V (Typ) | 87.1V | 34.4A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB |
|
S1605-8TVS DIODE 5VWM 9.8VC 16SO |
2,648 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | S16XX-8 | Tape & Reel (TR) | Active | Zener | 8 | - | 5V (Max) | 6V | 9.8V | 1A | 300W | No | Ethernet, Telecom | 600pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
|
S16LC05-8TVS DIODE 5VWM 9.8VC 16SO |
7,298 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | S16LCXX-8 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6V | 9.8V | 1A | 300W | Yes | Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | - | Surface Mount | 16-SO |
|
6KPE15AHTVS DIODE 15VWM 24.4VC UNI |
4,326 |
|
Datasheet | Axial | 6KPExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 270.5A | 6600W (6.6kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | - |
|
|
5KASMC13AHM3_A/HTVS DIODE 13VWM 21.5VC DO214AB |
3,577 |
|
Datasheet | DO-214AB, SMC | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | - | 5000W (5kW) | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
SLD8S40ATVS DIODE 40VWM 64.5VC SMTO-263 |
1,662 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 108A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SLD8S20ATVS DIODE 20VWM 32.4VC SMTO-263 |
2,548 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 216A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
SLD43-018-BTVS DIODE 43VWM 69.4VC P600 |
4,846 |
|
Datasheet | P600, Axial | SLD | Bulk | Active | Zener | - | 1 | 43V | 49V | 69.4V | 73.5A | 5000W (5kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | P600 |
|
|
MSMCJLCE6.5AE3/TRTVS DIODE 6.5VWM 11.2VC SMCJ |
3,014 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 100A | 1500W (1.5kW) | No | General Purpose | 100pF @ 1MHz | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|

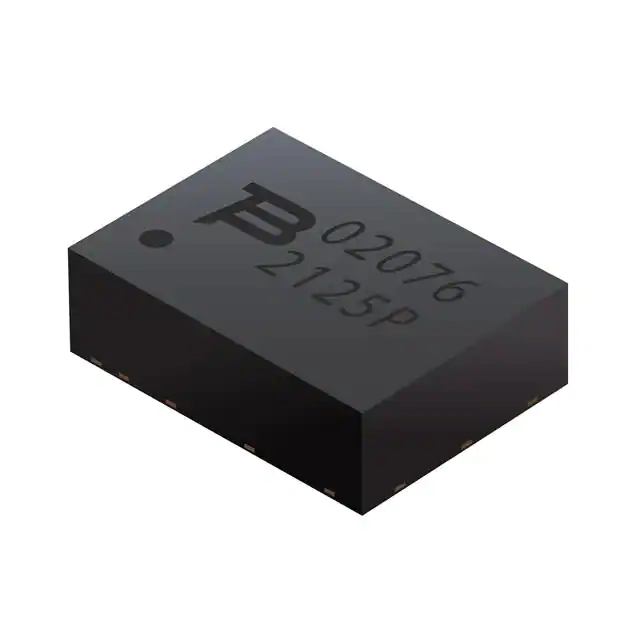

PTVS2-076C-HTVS DIODE 76VWM 91VC 2DFN |
6,588 |
|
Datasheet | 2-SMD, No Lead | PTVS | Tape & Reel (TR) | Active | Zener | - | 1 | 76V | 85V | 91V (Typ) | 2000A (2kA) (8/20µs) | - | No | General Purpose | 1100pF @ 10kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (8x6) |
|
15KP48CA-TPTVS DIODE 48VWM 77.7VC R6 |
8,402 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.7V | - | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
15KP200A-TPTVS DIODE 200VWM 322VC R6 |
4,244 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | 222V | 322V | - | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
15KP36A-TPTVS DIODE 36VWM 59.7VC R6 |
3,108 |
|
Datasheet | R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 59.7V | - | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
PTVS1-190C-THLTVS DIODE 190VWM 227VC AXIAL |
2,016 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 190V (Max) | 200V | 227V (Typ) | 1000A (1kA) (8/20µs) | - | No | General Purpose | 274pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PTVS6-058C-THTVS DIODE 58VWM 110VC AXIAL |
2,250 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Bulk | Active | Zener | - | 1 | 58V (Max) | 64V | 110V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 4500pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
PTVS3-058C-THTVS DIODE 58VWM 110VC AXIAL |
3,347 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 58V (Max) | 64V | 110V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2300pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
