TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ45ATVS DIODE 45VWM 72.7VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMF16ATVS DIODE 16VWM 26VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.69A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF64ATVS DIODE 64VWM 103VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 64V | 71.1V | 103V | 1.94A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF78ATVS DIODE 78VWM 126VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 78V | 86.7V | 126V | 1.59A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF90ATVS DIODE 90VWM 146VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 90V | 100V | 146V | 1.37A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF8.5ATVS DIODE 8.5VWM 14.4VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 13.89A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ17CATVS DIODE 17VWM 27.6VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 21.74A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ6.5CATVS DIODE 6.5VWM 11.2VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 53.57A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF14ATVS DIODE 14VWM 23.3VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 14V | 15.6V | 23.3V | 8.62A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF43ATVS DIODE 43VWM 69.4VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 2.88A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|

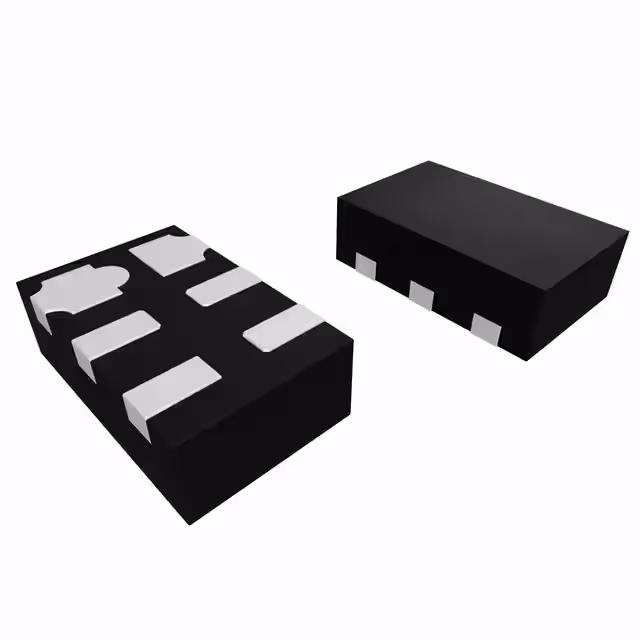

H04X525V0LESD PROTECTION DIODE |
280 |
|
Datasheet | 6-UDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | No | DVI, HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1610-6 |
|
|
SMBJ70CATVS DIODE 70VWM 113VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 70V | 77.8V | 113V | 5.31A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ7.0ATVS DIODE 7VWM 12VC |
180 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.33A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ51CATVS DIODE 51VWM 82.4VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.28A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ54CATVS DIODE 54VWM 87.1VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 54V | 60V | 87.1V | 6.89A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF18CATVS DIODE 18VWM 29.2VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 18V | 20V | 29.2V | 6.85A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF30CATVS DIODE 30VWM 48.4VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 4.13A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMF40CATVS DIODE 40VWM 64.5VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 3.1A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF64CATVS DIODE 64VWM 103VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 64V | 71.1V | 103V | 1.94A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF17CATVS DIODE 17VWM 27.6VC |
200 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 7.25A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
