TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTX1N5663ATVS DIODE 145VWM 234VC DO202AA |
3,206 |
|
Datasheet | DO-13 | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 145V | 162V | 234V | 6.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|
|
JANTXV1N5665ATVS DIODE 171VWM 274VC DO13 |
4,024 |
|
Datasheet | DO-202AA, DO-13, Axial | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|

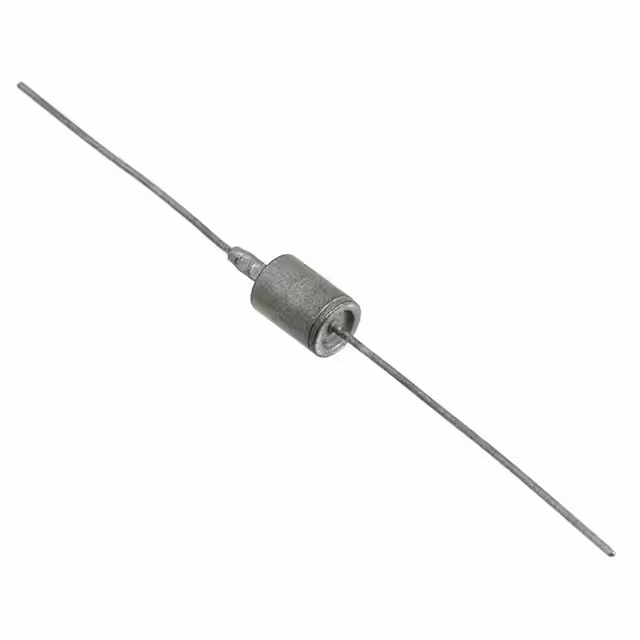

JANTXV1N5650ATVS DIODE 43.6VWM 70.1VC DO13 |
1,526 |
|
Datasheet | DO-202AA, DO-13, Axial | - | Bulk | Discontinued at Digi-Key | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 21.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/500 | Through Hole | DO-13 (DO-202AA) |
|
JANTXV1N5613TVS DIODE 175VWM 265VC G AXIAL |
4,405 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | 1 | - | 175V | 191V | 265V | 5.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/434 | Through Hole | G, Axial |
|
1.5SMC39CA V7GTVS DIODE 33.3VWM 53.9VC DO214AB |
371 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 29A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
H04D55V0ULESD PROTECTION DIODE |
830 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 4A (8/20µs) | 60W | No | DVI, USB | 0.7pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H1A5D536VUESD PROTECTION DIODE |
474 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 55V | 1.5A (8/20µs) | 80W | No | Telecom | 28pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H05D53V3BESD PROTECTION DIODE |
240 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 12V | 5A (8/20µs) | 60W | No | Telecom | 15pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H07D53V3UESD PROTECTION DIODE |
150 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 14V | 7A | 100W | No | CAN, Telecom | 105pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMAJ7.5ATVS DIODE 7.5VWM 12.9VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 31.01A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H04X25V0BUESD PROTECTION DIODE |
488 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 25V | 4A (8/20µs) | 100W | No | DVI, USB | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
H02X212VBUESD PROTECTION DIODE |
200 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 30V | 2A (8/20µs) | 60W | No | Telecom | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
SMAJ15CATVS DIODE 15VWM 24.4VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.39A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC |
200 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.51A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ20ATVS DIODE 20VWM 32.4VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.35A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ6.5CATVS DIODE 6.5VWM 11.2VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 35.71A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ8.0ATVS DIODE 8VWM 13.6VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 29.41A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ10ATVS DIODE 10VWM 17VC |
200 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.53A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ10CATVS DIODE 10VWM 17VC |
150 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 10V | 11.1V | 17V | 23.53A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H08D320VBESD PROTECTION DIODE |
780 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 22.3V | 50V | 8A | 350W | No | Telecom | 52pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
