TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSA12LTE25TVS DIODE 12V PMDS |
269 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 12V (Max) | 13.3V | 19.5V | 31A | 600W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDS |
|
SMBJ22A R5GTVS DIODE 22VWM 35.5VC DO214AA |
1,080 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 22V | 24.4V | 35.5V | 17.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMCJ78CA R7GTVS DIODE 78VWM 126VC DO214AB |
750 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 78V | 86.7V | 126V | 12.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SZ1SMB17CAT3GTVS DIODE 17VWM 27.6VC SMB |
307 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 21.7A | 600W | No | - | 490pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
SMCJ36A R7GTVS DIODE 36VWM 58.1VC DO214AB |
100 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 36V | 40V | 58.1V | 27A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SM15T24A-E3/57TTVS DIODE 20.5VWM 33.2VC DO214AB |
4,697 |
|
Datasheet | DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 45A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5SMCJ70A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
796 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 13.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ58A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
795 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
1.5SMCJ58CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
794 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ28A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
780 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 33A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ24CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
775 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 38.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
SMBJ58A R5GTVS DIODE 58VWM 93.6VC DO214AA |
768 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
1.5SMCJ36A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
740 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ33CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
685 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 28.1A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
BZW06-23BTVS DIODE 23.1VWM 48.3VC DO15 |
643 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW06, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 23.1V | 25.7V | 48.3V | 83A (8/20µs) | 600W | No | General Purpose | 575pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
1.5SMCJ33A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
600 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 28.1A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
SMBJ43A R5GTVS DIODE 43VWM 69.4VC DO214AA |
383 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 43V | 47.8V | 69.4V | 9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ13A R5GTVS DIODE 13VWM 21.5VC DO214AA |
246 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 13V | 14.4V | 21.5V | 29A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|

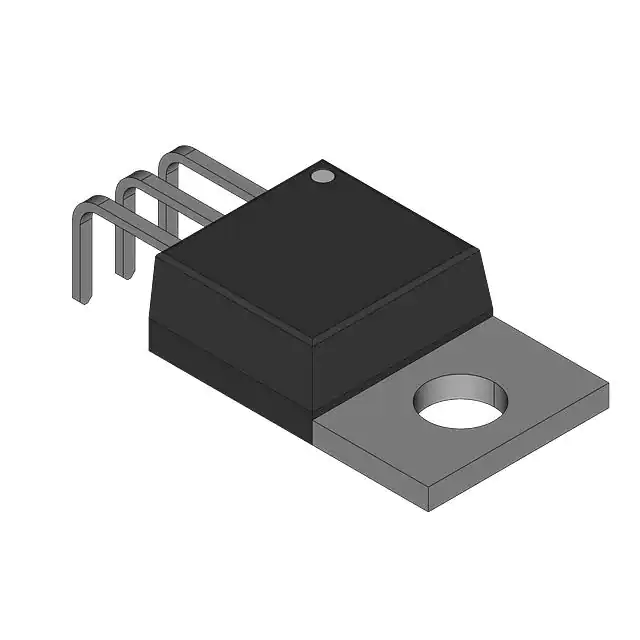

HRP2540RECTIFIER DIODE |
600 |
|
Datasheet | TO-220-3 | - | Bulk | Active | Zener | 1 | - | 23V | 24V | - | - | - | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
SMBJ28A R5GTVS DIODE 28VWM 45.4VC DO214AA |
1,085 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
