TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSMA6L43ATVS DIODE 43VWM 69.4VC DO221AC |
282 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 8.7A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
3.0SMI100CATVS DIODE 100VWM 162VC SMC |
215 |
|
Datasheet | DO-214AB, SMC | 3.0SMI | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 18.5A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMI10CATVS DIODE 10VWM 17VC SMC |
146 |
|
Datasheet | DO-214AB, SMC | 3.0SMI | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 176.5A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ26CA R7GTVS DIODE 26VWM 42.1VC DO214AB |
825 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 26V | 28.9V | 42.1V | 37A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
ESD5V0K5-TPTVS DIODE 5VWM 12.5VC SOT363 |
834 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Last Time Buy | Zener | 5 | - | 5V (Max) | 6V | 12.5V | 5A (8/20µs) | 100W | Yes | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
SMBJ24A R5GTVS DIODE 24VWM 38.9VC DO214AA |
268 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 24V | 26.7V | 38.9V | 16A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMCJ78CA-13TVS DIODE 78VWM 126VC SMC |
128 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 78V | 86.7V | 126V | 11.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5KE7V5A-TTVS DIODE 6.4VWM 11.3VC DO201 |
597 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 132A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SMDB03TVS DIODE 3.3VWM 7VC 8-SO |
418 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 4V | 7V | 1A | 500W | No | General Purpose | 800pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
P6KE51CA-TTVS DIODE 43.6VWM 70.1VC DO15 |
197 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
1.5KE120ATVS D5.4X7.5 102V 1500W UNIDIR |
154 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 102V | 114V | 165V | 9.1A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|

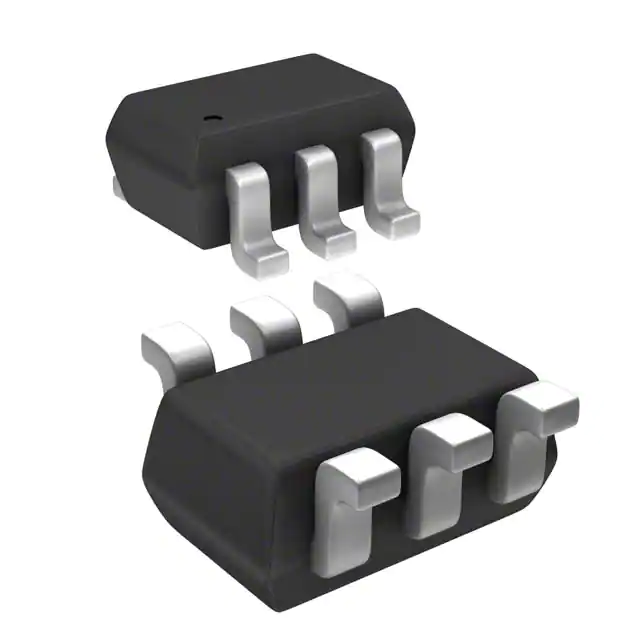

CMKTVS5-4 TR PBFREETVS DIODE 5VWM 23VC SOT363 |
1,640 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V | 6V | 23V | 5A (8/20µs) | - | Yes | Ethernet, HDMI | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
1.5SMCJ200CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,290 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 200V | 220V | 324V | 4.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ22A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
799 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ14A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
796 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 64.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ190CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 190V | 209V | 308V | 4.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ90CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ170CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ45CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
775 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMCJ36A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
770 |
|
Datasheet | DO-214AB, SMC | 1.5SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
