TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

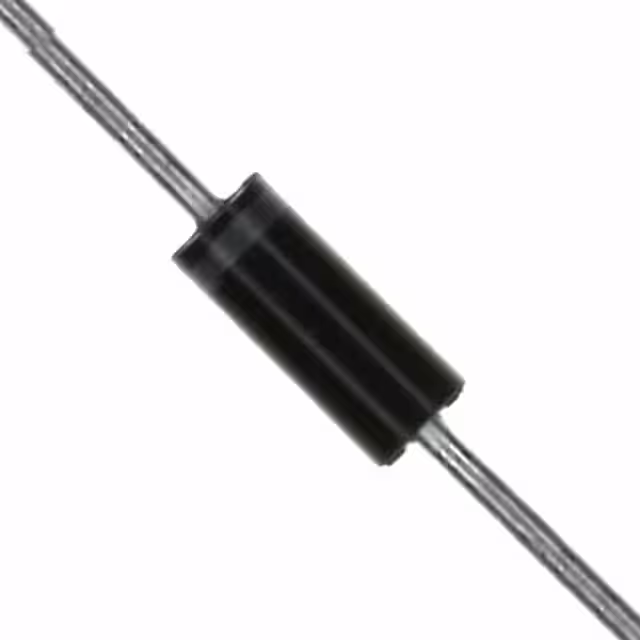

P6KE91AE3/TR13TVS DIODE 77.8VWM 125VC AXIAL |
731 |
|
Datasheet | T-18, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
;;2.jpg "TP6KE22CA")
|
TP6KE22CATVS DIODE 18.8VWM 30.6VC DO204AC |
575 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
.jpg "TPSMB13CA")
|
TPSMB13CATVS DIODE 11.1VWM 18.2VC DO214AA |
515 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ28A R3GTVS DIODE 28VWM 45.4VC DO214AC |
500 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
TP6KE24CATVS DIODE 20.5VWM 33.2VC DO204AC |
335 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
|
SMAJ33A R3GTVS DIODE 33VWM 53.3VC DO214AC |
270 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
TP6KE51CATVS DIODE 43.6VWM 70.1VC DO204AC |
266 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.7A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
|
TPSMB91CATVS DIODE 77.8VWM 125VC DO214AA |
243 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 77.8V | 86.5V | 125V | 4.9A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
TP6KE20ATVS DIODE 17.1VWM 27.7VC DO204AC |
167 |
|
Datasheet | DO-204AC, DO-15, Axial | TP6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 22A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
|
SMAJ15CAHR3GTVS DIODE 15VWM 24.4VC DO214AC |
2,733 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE250ATVS DO15 214V 600W UNIDIR |
568 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 1.75A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
PSMAJ400CA-13TVS DIODE 342VWM 548VC SMA |
464 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
.jpg "SMCJ18A-TP")
|
SMCJ18A-TPTVS DIODE 18VWM 29.2VC DO214AB |
231 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P6SMB100A R5GTVS DIODE 85.5VWM 137VC DO214AA |
3,823 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 85.5V | 95V | 137V | 4.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1.5KE30A-TPTVS DIODE 25.6VWM 41.4VC DO201AE |
885 |
|
Datasheet | DO-201AE, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
P6SMBJ10A_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
791 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ14CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 25.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ90A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 4.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6SMB18A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
780 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB130A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
775 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 111V | 124V | 179V | 3.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
