TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ18CATVS DIODE 18VWM 29.2VC |
180 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.55A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P6SMB43CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB7.5CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 6.4V | 7.13V | 11.3V | 53A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB39CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 11.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB33CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 13.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB220A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
797 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
;;2.jpg "SMA4F14A")
|
SMA4F14ATVS DIODE 14VWM 29VC SMAFLAT |
670 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 14V | 15.7V | 29V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SMA4F10ATVS DIODE 10VWM 21.7VC SMAFLAT |
426 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 10V | 11.1V | 21.7V | 23.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
SA14CATVS DIODE 14VWM 23.2VC DO204AC |
517 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 22A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
.jpg "TPSMB130A")
|
TPSMB130ATVS DIODE 111VWM 179VC DO214AA |
363 |
|
Datasheet | DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 111V | 124V | 179V | 3.4A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ78AHR3GTVS DIODE 78VWM 126VC DO214AC |
244 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
ESD7102BT1GTVS DIODE 5VWM 30VC SC75 SOT416 |
230 |
|
Datasheet | SC-75, SOT-416 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 16.5V | 30V (Typ) | - | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-75, SOT-416 |
|

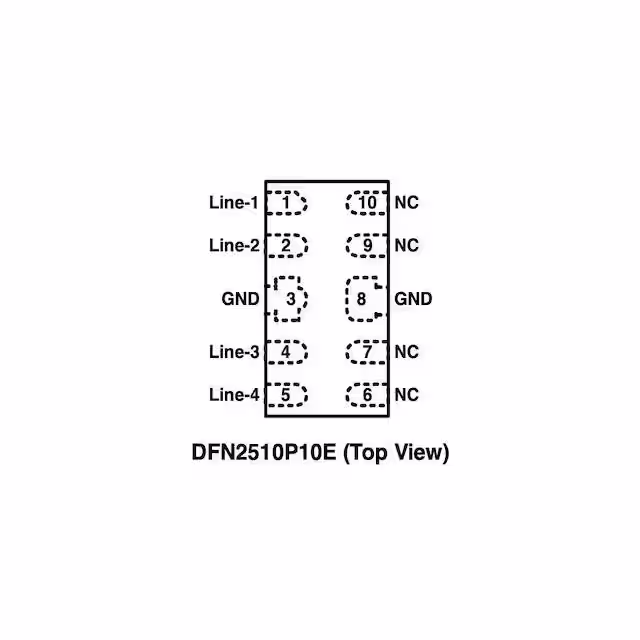

AZ1043-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
1,000 |
|
Datasheet | 10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | 10.5V (Typ) | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
SZ1SMB14AT3GTVS DIODE 14VWM 23.2VC SMB |
925 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.8A | 600W | No | - | 1085pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
P6SMB20A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 22A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB62A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SZP6SMB62CAT3GTVS DIODE 53VWM 85VC SMB |
316 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 7.1A | 600W | No | - | 170pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
P6KE82CATVS DIODE 70VWM 146VC DO15 |
131 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | - | 1 | 70V | 77.9V | 146V | 27A (8/20µs) | 600W | No | General Purpose | 275pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6SMB15CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB51CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
