TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMBJ12CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
780 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ16A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
775 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.1A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ60CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
756 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ15A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
745 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ24A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
700 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ45CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
650 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
P6SMBJ33A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
530 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ17CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
500 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 21.7A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ22CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
450 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 16.9A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
SMAJ400CATVS DIODE 400VWM 648VC |
180 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 400V | 447V | 648V | 620mA | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
STRVS118X02CTVS DIODE 85VWM 118VC SMC |
951 |
|
Datasheet | DO-214AB, SMC | STRVS | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 85V | 95V | 118V | 2A (8/20µs) | - | No | MOSFET Protection | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5KE170A/B1.5KE, DO-201, 145V, 234V, BOX |
1,000 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Box | Active | Zener | 1 | - | 145V | 162V | 234V | 6.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-201 |
|
|
P6SMB170AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
790 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 145V | 162V | 234V | 2.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB250AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
760 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 214V | 237V | 344V | 1.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ160AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
760 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 2.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB100AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
700 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB220AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
660 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|

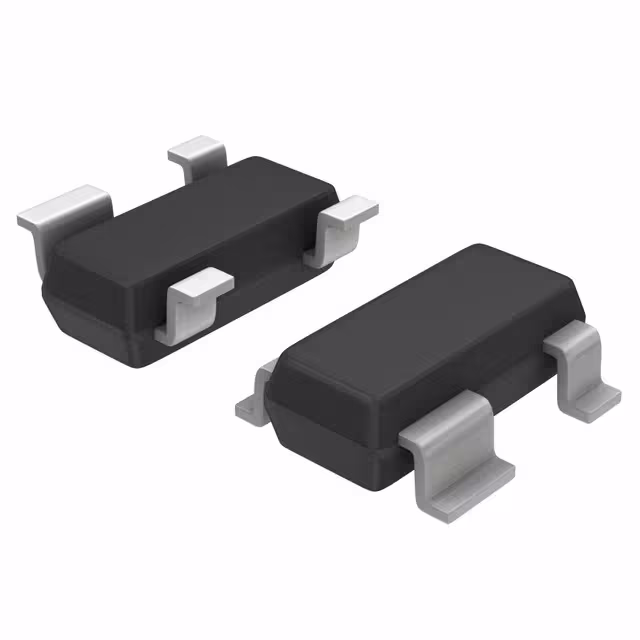

PE1805C2A4_R1_00001SOT-143, TVS/ESD |
488 |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 2 | - | 5V (Max) | 5V | 30V | 3A (8/20µs) | - | Yes | General Purpose | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-143 |
|
ESD7272LT1GTVS DIODE 24VWM 40VC SOT23-3 |
354 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 24V (Max) | 27V | 40V | 16A | - | No | General Purpose | 2pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
1.5KE20A/B1.5KE, DO-201, 17.1V, 27.7V, BOX |
282 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Box | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 54.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-201 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
