TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMBJ40CA_R1_00001SMB, TVS |
447 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6SMBJ18AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
440 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 20.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
D30V0S1UG3LP20-7SURGEPROTECTIONPPU-DFN2020-3(TYP |
323 |
|
Datasheet | 3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V (Max) | 30.5V | 31V (Typ) | 180A (8/20µs) | 5580W (5.58kW) | No | USB | 500pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-3 (Type C) |
|
|
P6SMBJ12AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
283 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ6.0CA-TPTVS DIODE 6VWM 10.3VC DO214AA |
250 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ40A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
250 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJ188AHR3GTVS DIODE 188VWM 328VC DO214AC |
143 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 188V | 209V | 328V | 900mA | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P6SMBJ24CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
120 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ30CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
103 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
ATV04A480J-HFTVS DIODE 48VWM 77.4VC SMA |
914 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.17A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P4SMAJ26A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
800 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 9.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ13CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
784 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 18.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE15A A0GTVS DIODE 12.8VWM 21.2VC DO204AC |
650 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 29A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PE4136C2A-AU_R1_000A1HI-SURGE ESD PROTECTION |
145 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 75V | 9A (8/20µs) | - | No | - | 100pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
P6SMBJ64A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,450 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 5.8A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ51CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,400 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|

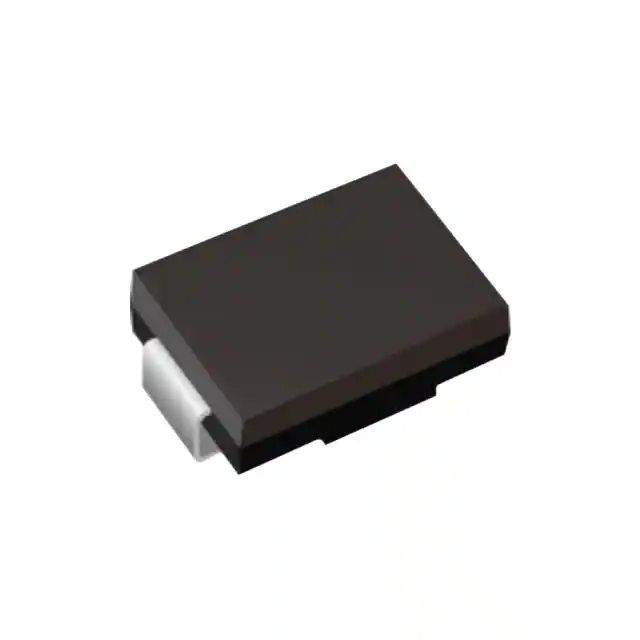

P6SMBJ60A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,394 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 6.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ54A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
795 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 6.9A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ13CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 27.9A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMBJ10CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
790 |
|
Datasheet | DO-214AA, SMB | P6SMBJ-AU | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
