TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE1605C4C6-AU_R1_000A1ULTRA LOW CAPACITANCE ESD PROTEC |
350 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | 6V | 15V | 4A (8/20µs) | - | Yes | - | 0.6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
MMBZ5V6ALT116TVS DIODE 3VWM 8VC SSD3 |
140 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3V (Max) | 5.32V | 8V | 3A | 24W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | SSD3 |
|
SMF45CATVS DIODE 45VWM 72.7VC |
160 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 45V | 50V | 72.7V | 2.75A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF51CATVS DIODE 51VWM 82.4VC |
160 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 2.43A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF60CATVS DIODE 60VWM 96.8VC |
140 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 2.07A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMF13CATVS DIODE 13VWM 21.5VC |
120 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 9.3A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
CDSOT236-T24TVS DIODE 24VWM 58.3VC SOT23-6 |
802 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 24V | 26.7V | 58.3V | 6A (8/20µs) | 350W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
SMF8.0CATVS DIODE 8VWM 13.6VC |
180 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 14.71A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ10CABIDIRECTIONAL TVS DIODES 600W 10 |
750 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ15AUNIDIRECTIONAL TVS DIODES 600W15 |
750 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ36CABIDIRECTIONAL TVS DIODES 600W 36 |
750 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ6.5CABIDIRECTIONAL TVS DIODES 600W 6. |
750 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ8.5CATVS DIODE 8.5VWM 14.4VC |
140 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 41.67A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMBJ26CAUNIDIRECTIONAL TVS DIODES 600W 2 |
750 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
824520781TVS DIODE 78VWM 126VC DO214AA |
490 |
|
Datasheet | DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 78V (Max) | 91.25V (Typ) | 126V | 4.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|

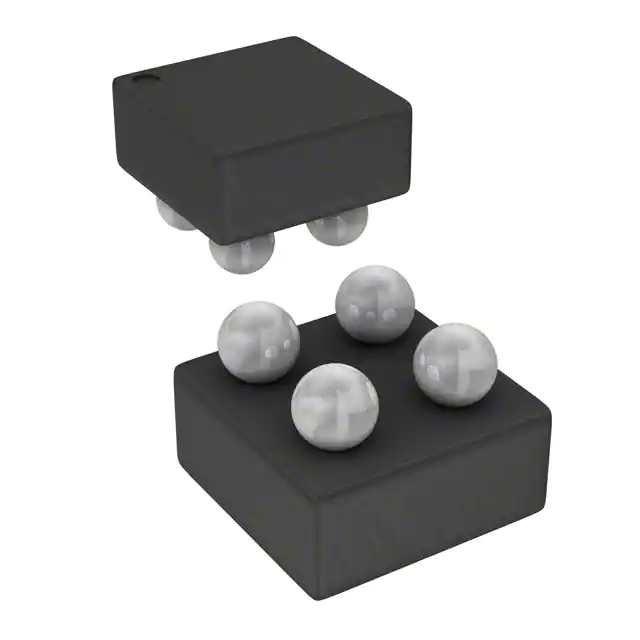

BGF120AE6327XTSA1TVS DIODE 5.3VWM 31VC |
223 |
|
Datasheet | 4-WFBGA | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5.3V (Max) | 6V | 31V | 30A (8/20µs) | - | No | Ethernet, HDMI, RF Antenna | 1.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | - |
|
P4KE13A A0GTVS DIODE 11.1VWM 18.2VC DO204AL |
170 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Cut Tape (CT) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 23A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
SMBJ130CATVS DIODE 130VWM 209VC SMB |
260 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ8.0CATVS DIODE 8VWM 13.6VC |
180 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 44.12A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P4SMAJ14A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
865 |
|
Datasheet | DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
