TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF28ATVS DIODE 28VWM 45.4VC |
160 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 4.41A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ13ATVS DIODE 13VWM 21.5VC |
160 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H18D35V0BLESD PROTECTION DIODE |
550 |
|
Datasheet | SC-76, SOD-323 | HxxxD3xVxBL | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 18A | 350W | No | Ethernet, USB | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
MMBZ27VALT116TVS DIODE 22VWM 40VC SOT23 |
486 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 22V (Max) | 25.65V | 40V | 1A | 40W | No | General Purpose | 42pF @ 1MHz | - | - | - | Surface Mount | SSD3 |
|
SMBJ170CATVS DIODE 170VWM 275VC |
180 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 170V | 189V | 275V | 2.18A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMAJ33ATVS DIODE 33VWM 53.3VC |
140 |
|
Datasheet | DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
STRVS241X02ETVS DIODE 171VWM 241VC DO15 |
356 |
|
Datasheet | DO-204AC, DO-15, Axial | STRVS | Tape & Box (TB) | Obsolete | Zener | 1 | - | 171V | 190V | 241V | 2A (8/20µs) | - | No | MOSFET Protection | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

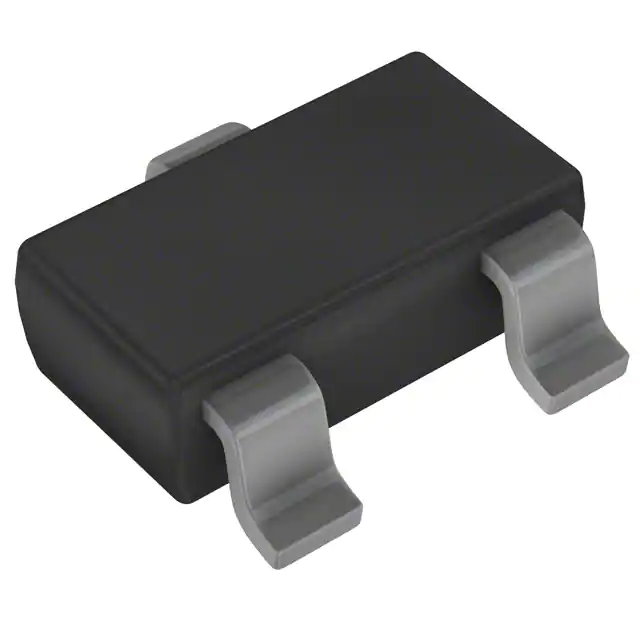

MMBZ20VAL-7TVS DIODE 17V 28V SOT23-3 |
547 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Cut Tape (CT) | Active | Zener | 2 | - | 17V | 19V | 28V | 1.4A | 40W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
SMF26ATVS DIODE 26VWM 42.1VC |
180 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 4.75A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE7V5ARLTVS DIODE 6.4VWM 14.5VC DO201 |
286 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 14.5V | 690A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 8500pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
ESDZX051-1BF4TVS DIODE 10.5VWM 10VC ST0201 |
959 |
|
Datasheet | 0201 (0603 Metric) | ESDZ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 10.5V (Max) | 9.6V (Typ) | 10V (Typ) | 4A (8/20µs) | 20W | No | Ethernet, USB | 0.28pF @ 3GHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ST0201 |
|

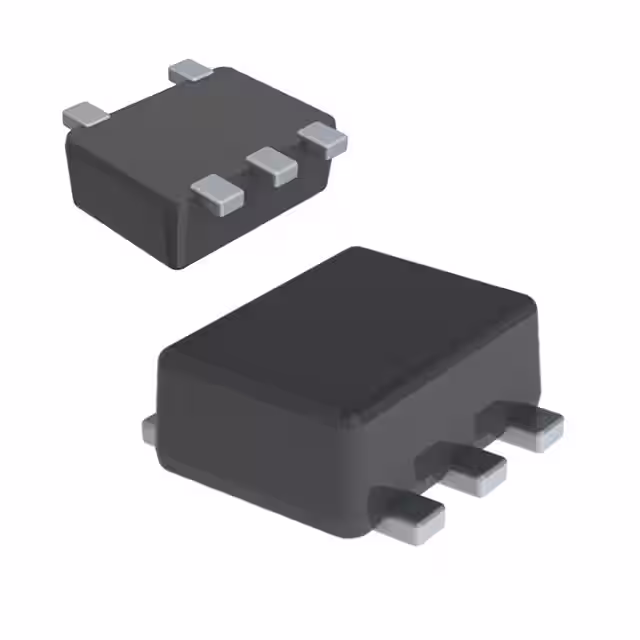

PEC2305C4E5_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
943 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V (Max) | 5.5V | 15V | 2A (8/20µs) | - | No | General Purpose | 3.5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
DF3A3.3FV,L3FTVS DIODE VESM |
290 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | - | 3.1V | - | - | - | No | General Purpose | 115pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|
|
SMBJ64ATVS DIODE 64VWM 103VC |
160 |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 64V | 71.1V | 103V | 5.83A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ6.8CABIDIRECTIONAL TVS DIODES 600W 6. |
747 |
|
Datasheet | - | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMBJ15CABIDIRECTIONAL TVS DIODES 600W 15 |
730 |
|
Datasheet | DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ5.0AUNIDIRECTIONAL TVS DIODES 600W 5 |
630 |
|
Datasheet | DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJ40CABIDIRECTIONAL TVS DIODES 600W 40 |
530 |
|
Datasheet | DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
S23C24TVS DIODE 24VWM 44VC SOT23 |
258 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | S23CXX | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 1A | 300W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
SMF100ATVS DIODE 100VWM 162VC |
170 |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 100V | 111V | 162V | 1.23A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
