Surge Protection Devices (SPDs)
Explore Surge Protection Devices (SPDs) parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2910332SPD TYPE 1 264VAC MCOV 1 POLE |
5,684 |
|
Datasheet | GDT | Bulk | Active | Type 1 | Module Only | 1 | 264VAC | 50 kA | 50 kA | - | 1.2 kV | 1.7 kV | -40°C ~ 80°C | - | Base Mount | cUR, cURus, UR |
|
SPP40SP3480WYGSPD TYPE 1 |
7,492 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPP40SP3600WYGSPD TYPE 1 |
2,409 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2736430000SPD TYPE 2 750VAC MCOV 2 POLE |
3,572 |
|
Datasheet | - | Box | Active | Type 2 | Base + Module | 2 | 750VAC | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
HEPD80WSPD TYPE 1 150VAC MCOV 1 POLE |
8,631 |
|
Datasheet | - | Box | Active | Type 1 | Module Only | 1 | 150VAC | 10 kA | - | 25 kA | - | - | - | - | Free Hanging | - |
|
|
HEPD80SPD TYPE 1 150V MCOV 1 POLE |
6,439 |
|
Datasheet | - | Box | Active | Type 1 | Module Only | 1 | 150V | 10 kA | - | - | - | - | -40°C ~ 65°C | - | Free Hanging | - |
|
|
SPD2-300-1P1SPD TYP 1/TYP 2 300V MCOV 1 POLE |
4,304 |
|
Datasheet | SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|
|
M9L22480SPD TYPE 1 550VAC MCOV 1 POLE |
8,203 |
|
Datasheet | - | Box | Active | Type 1 | Base + Module | 1 | 550VAC | 20 kA | 75 kA | - | - | 1.8 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
AGDN60020RSPD TYPE 1 750VAC MCOV 2 POLE |
2,103 |
|
Datasheet | - | Bulk | Active | Type 1 | Base + Module | 2 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
2591390000SPD TYPE 1/TYPE 2 300VAC MCOV |
7,906 |
|
Datasheet | - | Box | Active | Type 1, Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cURus, VDE |
|
|
2730790000SPD TYPE 2 75VAC MCOV 2 POLE |
7,223 |
|
Datasheet | - | Box | Active | Type 2 | Base + Module | 2 | 75VAC | 20 kA | 50 kA | 200 kA | 330 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
BSPM3275TNCSPD TYPE 2 275VAC MCOV 3 POLE |
2,396 |
|
Datasheet | BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 275VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | Thermally Protected | DIN Rail | CE, KEMA |
|
|
SPP40SP2240PNSPD TYPE 1 |
4,312 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPP40SP3208WYGSPD TYPE 1 |
4,373 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2801042SPD TYPE 1/TYPE 2 335VAC MCOV |
6,930 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 335VAC | 12.5 kA | 50 kA | 25 kA | - | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | EAC |
|
2801240SPD TYP1/TYP2 75VAC/100VDC MCOV |
3,532 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VAC, 100VDC | 12.5 kA | 30 kA | 25 kA | 400 V | 400 V | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR, VDE |
|
|
2905638SPD TYP 1/TYP 2 1KVDC MCOV 1POLE |
2,870 |
|
Datasheet | VAL | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1kVDC | 20 kA | 40 kA | - | - | 3.3 kV | -40°C ~ 80°C | - | DIN Rail | CB |
|
|
HEPD108SPD |
9,755 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPD2-350-1P1SPD TYP 1/TYP 2 350V MCOV 1 POLE |
6,164 |
|
Datasheet | SPD2 1P+1 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350V | 20 kA | 50 kA | 200 kA | 1 kV | 1.75 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

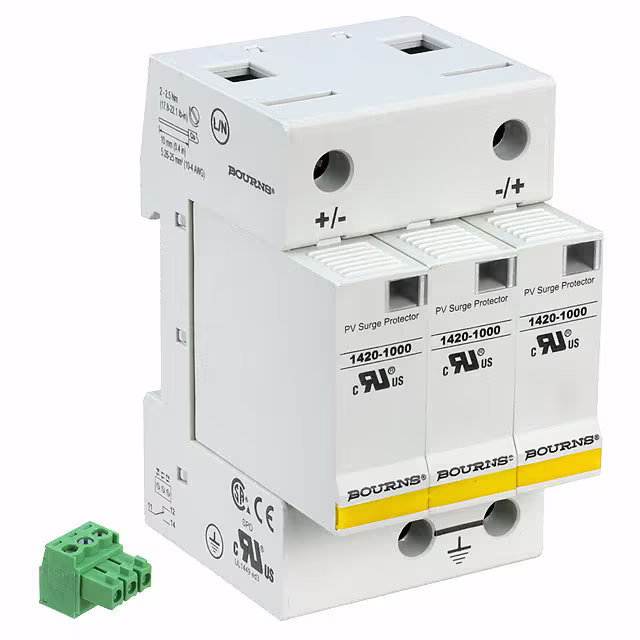

1420-PV-1000SPD TYPE 2/TYPE 4 1.2KVDC MCOV |
7,556 |
|
Datasheet | 1420 | Bulk | Active | Type 2, Type 4 | Module Only | 3 | 1.2kVDC | 20 kA | - | - | - | 3.6 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
Frequently Asked Questions
What are Surge Protection Devices (SPDs) components used for?
Surge Protection Devices (SPDs) components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Surge Protection Devices (SPDs) part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Surge Protection Devices (SPDs) parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
