Switching Converter, SMPS Transformers
Explore Switching Converter, SMPS Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750317236XFMR FLYBACK DC/DC CONV 84UH SMD |
2,355 |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|
750311524XFMR LED DR AC/DC CONV 180UH TH |
4,986 |
|
Datasheet | MID-LLIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL2101 | NXP Semiconductors | 230V | - | 1000Vrms | 180µH @ 100kHz, 95µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.505" (12.83mm) | 0.550" L x 0.550" W (13.97mm x 13.97mm) | - |
|

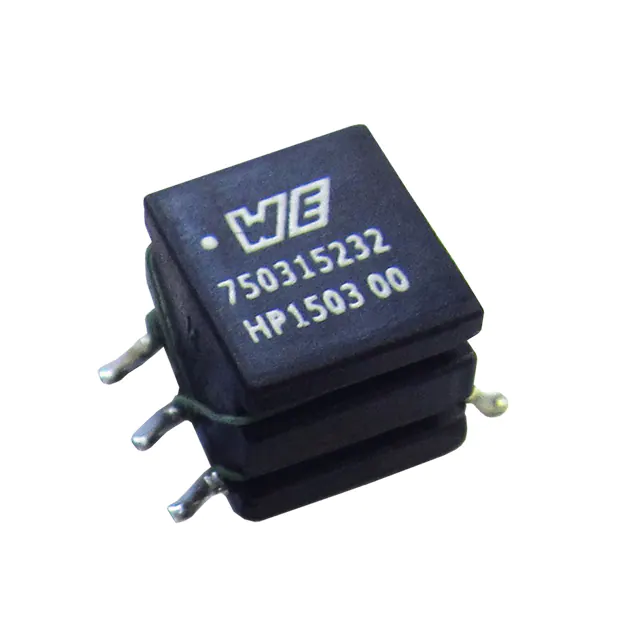

750315232XFMR FWD P-P SMD |
3,360 |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
ECO2020SEO-D10V017XFMR FLYBACK AC/DC CONV 770UH TH |
4,735 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 276V | 15V @ 150mA, 18V @ 150mA | 3000Vrms | 770µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
|
7491199331XFMR POE DC/DC CONV 127UH SMD |
2,201 |
|
Datasheet | WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750310007XFMR POE DC/DC CONV 127UH SMD |
4,594 |
|
Datasheet | WE-PoE, MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072 | National Semiconductor | 35 ~ 57V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
7491194501XFMR POE DC/DC CONV 42UH SMD |
3,769 |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V | 1500Vrms | 42µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.910" L x 1.044" W (23.11mm x 26.52mm) | 0.450" (11.43mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
|
749119450XFMR POE DC/DC CONV 65UH SMD |
4,062 |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 15V @ 20mA | 1500Vrms | 65µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
7508170310XFMR FLYBCK AC/DC CONV 1.99MH SM |
4,002 |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.99mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|

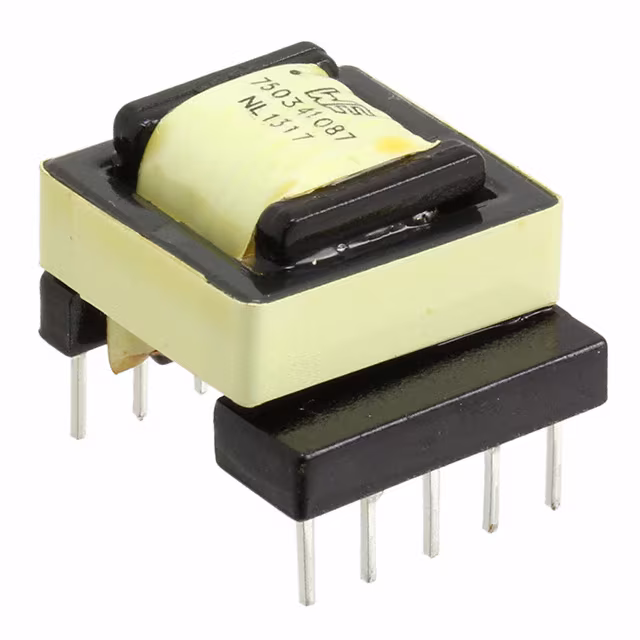

750341087XFMR LED DR AC/DC CONV 3MH TH |
2,825 |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 180 ~ 265V | 22V @ 10mA | 4500Vrms | 3mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750342860XFMR FLYBACK DC/DC CONV 80UH SMD |
1,118 |
|
Datasheet | WE-FB, MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 18 ~ 36V | 24V @ 100mA | 1875Vrms | 80µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750313959XFMR ISOL AC/DC CONV 1.8MH TH |
4,117 |
|
Datasheet | WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 120 ~ 375V | 18V @ 10mA | 4500Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.540" L x 0.805" W (13.72mm x 20.45mm) | 0.405" (10.29mm) | 0.540" L x 0.805" W (13.72mm x 20.45mm) | - |
|
7491196331XFMR POE DC/DC CONV 128UH SMD |
4,229 |
|
Datasheet | WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 10V | 1500Vrms | 128µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|
VPH4-0047-RXFMR 7.94UH SMD |
4,294 |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
B78304B1031A003XFMR DC/DC CONV 1MH SMD |
3,798 |
|
Datasheet | B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 1mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
7508112330XFMR LED DR AC/DC CONV 800UH TH |
4,049 |
|
Datasheet | WE-UNIT, MID-OLEDF | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|
749118205XFMR LED DR AC/DC CONV 900UH TH |
1,300 |
|
Datasheet | WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.709" L x 0.650" W (18.00mm x 16.50mm) | 0.709" (18.00mm) | 0.709" L x 0.650" W (18.00mm x 16.50mm) | - |
|
750319565XFMR FLYBACK DC/DC CONV 256UH SM |
2,110 |
|
Datasheet | WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 15V | - | 4000V | 256µH @ 10kHz | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
750311567XFMR FLYBACK DC/DC CONV 7UH SMD |
1,647 |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 40V | 10V @ 20mA | 1500Vrms | 7µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750319020XFMR POE DC/DC CONV 17UH SMD |
4,908 |
|
Datasheet | MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 17µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
