Switching Converter, SMPS Transformers
Explore Switching Converter, SMPS Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750343466XFMR FLYBACK AC/DC CONV 280UH TH |
4,288 |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 85 ~ 400V | 16.5V @ 100mA | 3000V | 280µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.984" L x 0.874" W (25.00mm x 22.20mm) | 0.650" (16.50mm) | - | Laminated Core |
|
|
750817436XFMR FLYBACK AC/DC CONV 2.3MH TH |
3,754 |
|
Datasheet | MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 375 ~ 420V | 15V @ 250mA | 3000V | 2.3mH @ 10kHz | 115kHz | -40°C ~ 125°C | - | - | Through Hole | 0.728" L x 0.650" W (18.50mm x 16.50mm) | 0.740" (18.80mm) | - | Laminated Core |
|
750312279XFMR FLYBACK DC/DC CONV 750UH TH |
4,125 |
|
Datasheet | MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | 120 ~ 375V | 14V | 3750Vrms | 750µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.906" L x 0.866" W (23.00mm x 22.00mm) | 0.690" (17.53mm) | - | - |
|
750311959XFMR FLYBACK AC/DC CONV TH |
1,923 |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120V | - | 1875Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Through Hole | 1.025" L x 1.050" W (26.04mm x 26.67mm) | - | - | - |
|
750871630XFMR LED DR AC/DC CONV 500UH TH |
2,293 |
|
Datasheet | WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1623PH | NXP Semiconductors | 120 ~ 385V | 12V @ 30mA | 4000Vrms | 500µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.827" L x 0.984" W (21.00mm x 25.00mm) | 0.635" (16.13mm) | 0.827" L x 0.984" W (21.00mm x 25.00mm) | - |
|
750811291XFMR FLYBACK AC/DC CONV 400UH TH |
4,876 |
|
Datasheet | WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 85 ~ 265V | 20V @ 10mA | 4500Vrms | 400µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.989" (25.12mm) | 1.220" L x 1.220" W (31.00mm x 31.00mm) | - |
|
750811616XFMR FLYBACK DC/DC CONV 770UH SM |
2,286 |
|
Datasheet | MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 770µH @ 10kHz | 68 ~ 120kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.551" (14.00mm) | - | - |
|
750343108XFMR FLYBACK AC/DC CONV 600UH TH |
3,884 |
|
Datasheet | WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 90 ~ 264V | 14V | - | 600µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 1.024" W (22.20mm x 26.00mm) | 0.635" (16.13mm) | 0.874" L x 1.024" W (22.20mm x 26.00mm) | - |
|
|
DR12-C302XFMR FLYBACK |
1,809 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
750318383XFMR FLYBACK DC/DC CONV 680UH TH |
4,178 |
|
Datasheet | MID-OLTI | Tray | Active | For DC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | 15V @ 20mA | 3750V | 680µH @ 10kHz | 66kHz | -40°C ~ 125°C | - | - | Through Hole | 1.142" L x 0.846" W (29.00mm x 21.50mm) | 0.490" (12.45mm) | - | Laminated Core |
|
|
DR12-C321XFMR FLYBACK |
100 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ECO2430SEO-D01H0110XFMR FLYBACK AC/DC CONV 450UH TH |
2,517 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 390 V | 12V @ 2A, 17V @ 500mA | 3000Vrms | 450µH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 1.181" L x 1.417" W (30.00mm x 36.00mm) | 0.984" (25.00mm) | 1.181" L x 1.417" W (30.00mm x 36.00mm) | - |
|
|
750318938XFMR POE DC/DC CONV 150UH SMD |
1,158 |
|
Datasheet | WE-PoE++ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | - | 1500Vrms | 150µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.450" (11.43mm) | - | Laminated Core |
|
|
750316708XFMR FLYBACK DC/DC CONV 42UH TH |
1,960 |
|
Datasheet | MID-FLYTI | Tray | Active | For DC/DC Converters | Flyback Converters | - | Texas Instruments | 12 ~ 60V | 12V @ 20mA | 1000V | 42µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.050" L x 1.025" W (26.67mm x 26.04mm) | 0.571" (14.50mm) | - | Laminated Core |
|
|
750315046XFMR FLYBACK AC/DC CONV 1MH TH |
1,407 |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 200 ~ 570V | 24V @ 20mA | 3000V | 1mH @ 10KHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.900" (22.86mm) | - | Laminated Core |
|
|
750817251XFMR FLYBACK AC/DC CONV 250UH TH |
2,262 |
|
Datasheet | MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 85 ~ 305V | 24V @ 20mA | 4500Vrms | 250µH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.984" (25.00mm) | - | Laminated Core |
|
POE26W3.3VS5-RXFMR POE CONFIG DC/DC 160UH SMD |
2,683 |
|
Datasheet | PoE | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Power Over Ethernet (PoE) | - | - | - | - | 1500Vrms | 160µH @ 100kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.846" L x 0.866" W (21.50mm x 22.00mm) | 0.425" (10.80mm) | 0.846" L x 1.161" W (21.50mm x 29.50mm) | - |
|
750343004XFMR FLYBACK AC/DC CONV TH |
4,617 |
|
Datasheet | MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | - | - | 3750Vrms | - | 65kHz | -40°C ~ 125°C | - | - | Through Hole | - | 1.299" (33.00mm) | - | - |
|
|
750317463XFMR FLYBACK DC/DC CONV 440UH TH |
2,748 |
|
Datasheet | MID-OLLT | Tray | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 80 ~ 600V | 12V @ 20mA | 3000V | 440µH @ 1kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.240" L x 1.240" W (31.50mm x 31.50mm) | 0.807" (20.50mm) | - | Laminated Core |
|

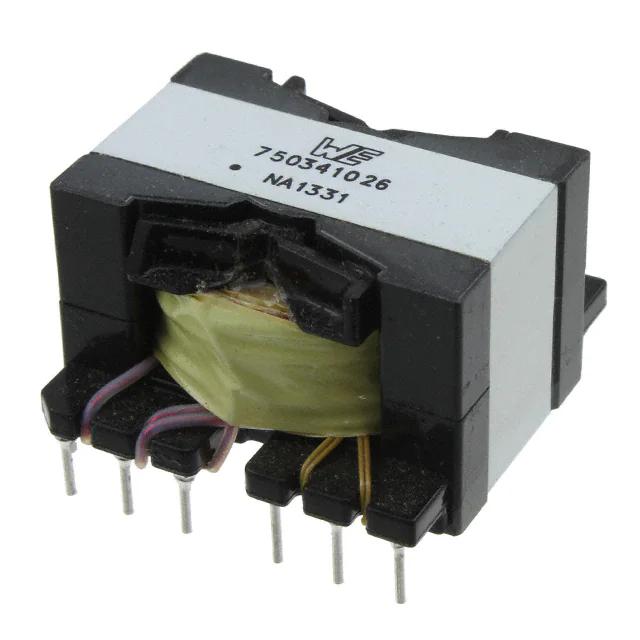

750341026XFMR LED DR AC/DC CONV 710UH TH |
2,809 |
|
Datasheet | WE-FB | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL4101 | - | - | - | - | 710µH @ 10kHz | - | - | - | - | Through Hole | - | 0.865" (21.97mm) | 1.339" L x 1.350" W (34.00mm x 34.30mm) | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
