Switching Converter, SMPS Transformers
Explore Switching Converter, SMPS Transformers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO2230SEO-D04V016XFMR FLYBACK AC/DC CONV TH |
2,635 |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.417" (36.00mm) | - | - |
|
750342779XFMR FLYBACK DC/DC CONV 50UH SMD |
4,159 |
|
Datasheet | MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7V @ 100mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.374" W (9.78mm x 9.50mm) | - |
|
7508112514XFMR FLYBACK DC/DC CONV 460UH TH |
2,705 |
|
Datasheet | MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 460µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.551" (14.00mm) | - | - |
|
PG1895NLTXFMR FLYBACK 48UH SMD |
2,709 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 12 ~ 36V | 23V @ 30mA | 2420V | 48µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.004" L x 1.063" W (25.50mm x 27.00mm) | 0.472" (12.00mm) | 1.157" L x 1.004" W (29.40mm x 25.50mm) | Wirewound |
|
7491195501XFMR POE DC/DC CONV 21UH SMD |
2,331 |
|
Datasheet | WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|
PA0808NLXFMR DC/DC CONV SMD |
1,524 |
|
Datasheet | PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
|

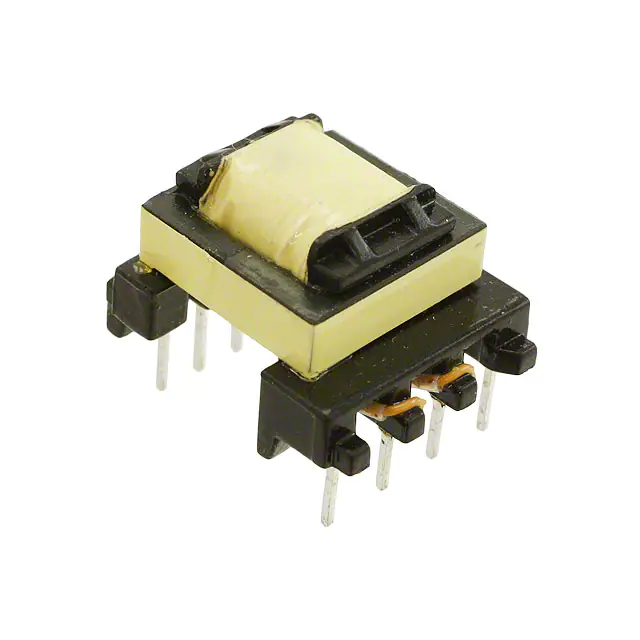

7491182124XFMR LED DR AC/DC CONV 900UH TH |
1,590 |
|
Datasheet | WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
PH0810CNLXFMR DC/DC CONV SMD |
2,568 |
|
Datasheet | PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
749196541XFMR FLEX CONFIG DC/DC 7.6UH SMD |
2,017 |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 7.6µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
750343109XFMR FLYBACK AC/DC CONV 490UH TH |
3,717 |
|
Datasheet | WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 90 ~ 264V | 14V | 3000Vrms | 490µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 1.024" W (22.20mm x 26.00mm) | 0.635" (16.13mm) | 0.874" L x 1.024" W (22.20mm x 26.00mm) | - |
|
750315039XFMR ISOL BUCK DC/DC CON 40UH SM |
1,812 |
|
Datasheet | MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 1500Vrms | 40µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.955" (24.26mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
.jpg "PE-68414NL")
|
PE-68414NLXFMR FLYBACK DC/DC CONV SMD |
2,717 |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
760871333XFMR 250UH SMD |
3,062 |
|
Datasheet | WE-SLIM | Tray | Active | - | - | - | - | - | - | 4000Vrms | 250µH @ 50kHz | 130kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | 1.157" L x 1.870" W (29.40mm x 47.50mm) | - |
|
MTPL-2516-S24VXFMR PLANAR TH |
4,822 |
|
Datasheet | MTPL-2516 | Tray | Active | - | - | - | - | - | - | - | - | - | -55°C ~ 130°C | - | - | Through Hole | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 0.650" (16.51mm) | - | Planar |
|
750313054XFMR FLYBACK DC/DC CONV 500UH TH |
2,314 |
|
Datasheet | MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 4000Vrms | 500µH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.950" (24.13mm) | - | - |
|
VPH5-0067-RXFMR 9.65UH SMD |
2,282 |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
VPH4-0140-RXFMR 23.7UH SMD |
2,341 |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
VGT22EPC-200S6A12XFMR FLYBACK AC/DC CONV 2.5UH SM |
1,414 |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.5µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 1.299" L x 0.976" W (33.00mm x 24.80mm) | 0.539" (13.70mm) | 1.299" L x 1.055" W (33.00mm x 26.80mm) | Wirewound |
|
|
VPH4-0060-RXFMR 10.1UH SMD |
2,836 |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|

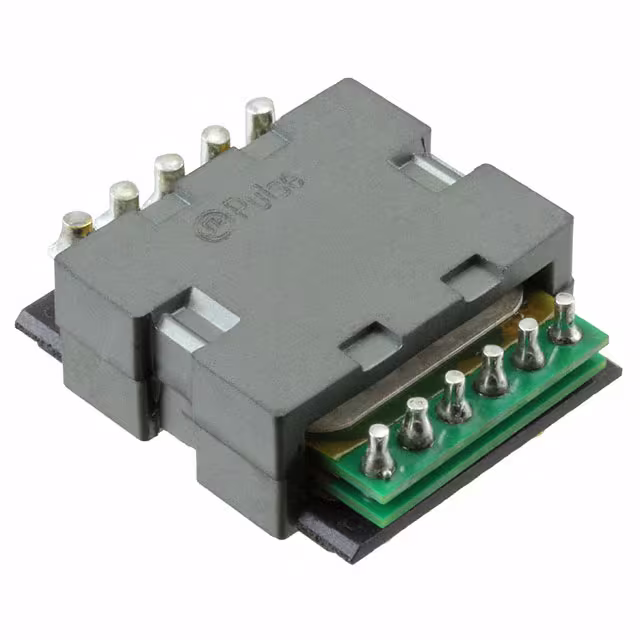

PA0907NLXFMR SMD |
1,760 |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
Frequently Asked Questions
What are Switching Converter, SMPS Transformers components used for?
Switching Converter, SMPS Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Switching Converter, SMPS Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
