RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFC025-200RF ANT 892MHZ/1.9GHZ FLAT 200MM |
807 |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
1461539300WIFI 6E AUTOMOTIVE FLEXIBLE ANT |
7,753 |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.2dBi | - | Cable - 300mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2108857-1PCB ANT, MHF, 50MM, WI-FI, 6E TR |
2,846 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
ANT-403-USPRF ANT 403MHZ CHIP SOLDER SMD |
1,998 |
|
Datasheet | microSplatch™ | Tube | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 406MHz | Chip | 1 | 1.9 | - | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | MICS |
|
2344654-7WLAN DUAL BAND ANTENNA PCB V 150 |
2,924 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
RFMTA271200NNAB001RF ANT 2.4GHZ STAMPED MET SLD |
154 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
2118909-8WLAN TRIPLE BAND ANT MHF4 CABLE |
2,445 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.52GHz, 5.5125GHz, 6.525GHz | 2.34GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.3dBi, 3.3dBi, 3.3dBi | - | Cable - 60mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
APAE1575R1340ABDD6-TRF ANT 1.575GHZ CER PATCH PIN |
981 |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.584GHz ~ 1.588GHz | Ceramic Patch | 1 | 1.5 | -15dB | - | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|

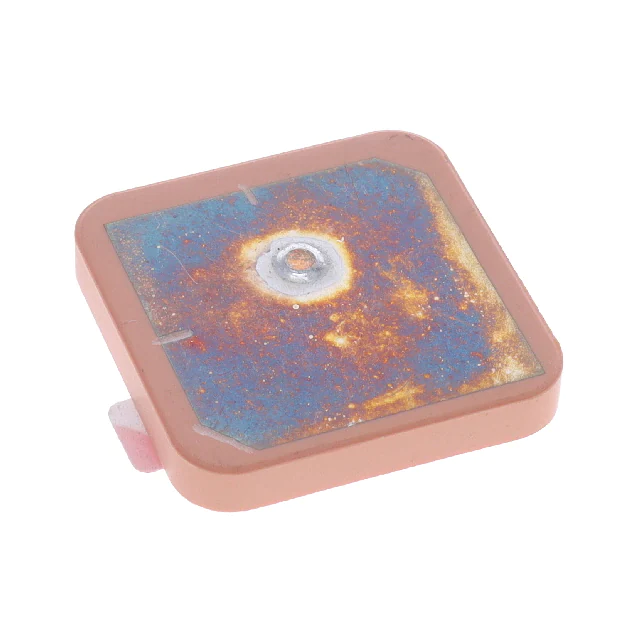

ANT2525B00FT1516SRF ANT 1.59GHZ CER PATCH PIN ADH |
460 |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 1 | 2 | - | 4.66dBi, 4.97dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
1513430-2RF ANT 2.4GHZ PCB TRACE SLDR SMD |
4,999 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.79mm) | Bluetooth, WLAN, Zigbee™ |
|
|
2108971-6FPC ANT, MHF 4L, 100MM, UWB 3~8. |
2,498 |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.9, 2.1 | - | 1.4dBi, 3.9dBi | 10 W | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108971-2FPC ANT, MHF, 100MM, UWB 3~8.5 G |
2,494 |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.9, 2.4 | - | 1.5dBi, 4.1dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
SLDA72-0R900G-31TFMULTILAYER LTCC ANTENNA, 858~928 |
3,997 |
|
Datasheet | SLDA | Tape & Reel (TR) | Active | Bluetooth | - | 900MHz | - | Chip | 1 | 2 | - | 2.7dBi | 3 W | LNA, Filter | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
2118909-2WLAN TRIPLE BAND ANT MHF CABLE 2 |
2,760 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.2dBi, 3.2dBi, 3.2dBi | - | Cable - 268.78mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2118909-4WLAN TRIPLE BAND ANT MHF4 CABLE |
2,621 |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 3.2dBi, 3.2dBi, 3.2dBi | - | Cable - 115.8mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT1818B00FTGNSSSANTENNA PATCH GNSS |
960 |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | - | 3dB | -2dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS |
|
RFPCA191515IMAB3G1RF ANT 2.4GHZ PCB TRACE IPEX ADH |
4,240 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
|
2108971-4FPC ANT, MHF, 200MM, UWB 3~8.5 G |
2,588 |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | 1.6, 1.7 | - | 1.1dBi, 3.5dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
|
2108971-8FPC ANT, MHF 4L, 200MM, UWB 3~8. |
2,348 |
|
Datasheet | - | Bag | Active | Ultra Wide Band | Wide Band | 4.05GHz, 7.2GHz | 3GHz ~ 8.5GHz | Flat Patch | 2 | - | - | - | 10 W | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
ACR1004GCGNSS+GPS(L5) MULTIBAND CHIP ANT |
1,952 |
|
Datasheet | ACR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | 1.166GHz ~ 1.186GHz, 1.561GHz ~ 1.61GHz | Chip | 4 | - | -12dB | 1.9dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
