RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
318020692LORA FIBERGLASS ANTENNA KIT; 863 |
141 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Whip, Straight | 1 | 2.5 | - | 8dBi | - | Cable - 1m | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
WA700/2700SMARF ANT MOLDED SMA MALE CHAS MT |
4,961 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | - | 700MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.11GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Molded | 4 | 2.5 | - | 2.5dBi, 3.5dBi | 2 W | Cable - 1m | SMA Male | - | - | - | Chassis Mount | 0.201" (5.10mm) | LTE |
|
LP406NMOBLACK NMO LOW PROFILE, UNITY, 40 |
4,645 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 413MHz | 406MHz ~ 420MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|
AP-DIPOLE-NEXT-C-O-S6-F-GRANTENNA PLUS NEXT 5G OUTDOOR DIP |
4,148 |
|
Datasheet | OMNIMAX® | Box | Active | Cellular | Wide Band | 617MHz, 850MHz, 1.45GHz, 1.75GHz, 1.95GHz, 2.25GHz, 2.45GHz, 3.7GHz, 5.5GHz | 600MHz ~ 6GHz | Whip, Straight | 9 | - | - | 1dBi, 1.8dBi, 1.5dBi, 0.8dBi, 3.2dBi, 4.3dBi, 3.8dBi, 4dBi, 3.5dBi | - | - | N Type Female | - | - | - | Connector Mount | 11.811" (300.00mm) | 2G, 3G, 4G, 5G, CDMA, DCS, GPRS, GSM, IoT, M2M, PCS |
|
GA.170.305111LTE MONSOON WITH 3000MM TGC-200 |
4,544 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 761MHz,869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 7 | - | -3dB | 2.28dBi, 2.74dBi, 1.47dBi, 2.36dBi, 3.28dBi, 3.28dBi, 5.93dBi | - | Cable - 3m | SMA Male | IP69K | - | - | Panel Mount | 1.220" (31.00mm) | LTE |
|
KGU825UDON GLASS, UNITY, 806 - 896 MHZ, |
2,897 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | 1.5 | - | 2dBi | 60 W | - | FME Female | - | - | - | Glass | 4.500" (114.30mm) | Cellular |
|
MA251.A.BI.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
300 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 750MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Module | 5 | - | -6dB | 5.6dBi | 5 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | LTE |
|
AECR1808X4S-3000SRF ANT 4IN1 4X5G NR / 4G / LTE D |
1,865 |
|
Datasheet | AECR | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Dome | 1 | 4 | - | 4dBi | 10 W | Cable - 3m | SMA Male (4) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 4G, 5G, LTE |
|
NMOWB450CCOIL/STAINLESS WHIP, 3.5 DB, 450 |
4,391 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 462.5MHz | 450MHz ~ 475MHz | Whip, Straight | 1 | - | - | 5.5dBi | 200 W | - | NMO | - | - | - | Magnetic | 35.500" (901.70mm) | - |
|
MA241.BI.001RF ANT 797MHZ/2.2GHZ FLAT BAR |
105 |
|
Datasheet | Genesis | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 797MHz, 2.2GHz | 698MHz ~ 896MHz, 1.71GHz ~ 2.7GHz | Flat Bar | 2 | 3.5 | -10dB | 5.87dBi | - | - | SMA Male | IP67 | - | - | Adhesive | 0.488" (12.40mm) | LTE |
|
8171D-HRRF ANT 1.5845GHZ PUCK TNC FEM TH |
2,340 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Puck | 1 | - | - | 2dBic | - | - | TNC Female | IP67 | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
OMB.8912.03F21RF ANT 892MHZ/1.9GHZ WHIP STR N |
4,490 |
|
Datasheet | - | Tube | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 2.13dBi, 4.89dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 20.748" (527.00mm) | CDMA, GSM |
|
MA231.LBC.003RF ANT 830MHZ/1.575GHZ BAR 3M |
118 |
|
Datasheet | Stream | Bag | Active | Navigation | Wide Band | 830MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.4GHz, 2.6GHz, 5.5GHz | 700MHz ~ 960MHz, 1.575GHz, 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz, 2.5GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Flat Bar | 6 | 3 | - | 2.9dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Adhesive | 0.354" (9.00mm) | Galileo, GLONASS, GPS |
|
MA104.C.AB.015RF ANT 892MHZ/1.9GHZ DOME SMA ML |
121 |
|
Datasheet | Hercules | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 5dBi, 4dBi | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GPS, GSM |
|

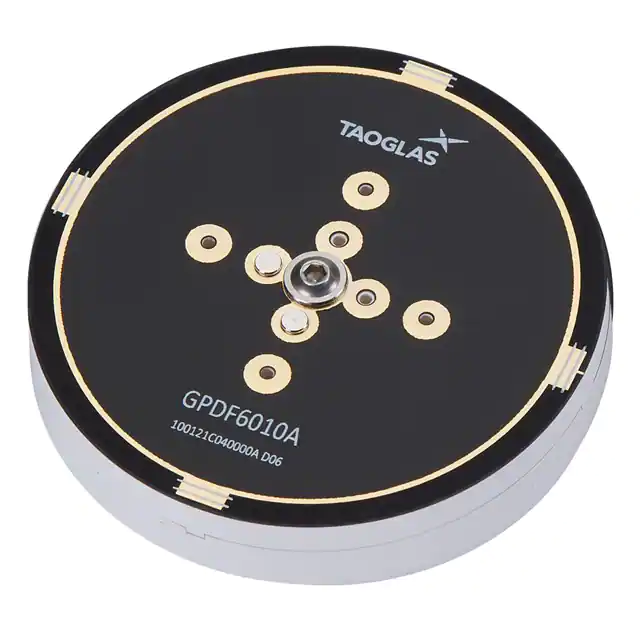

GPDF6010.ACIRCULAR TRIPLE BAND DUAL FEED S |
2,789 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.17645GHz, 1.2276GHz, 1.278GHz, 1.525GHz, 1.561GHz, 1.57542GHz, 1.602GHz | - | Ceramic Patch | 7 | 1.5 | - | -1.5dBic, 1.8dBic, -1.5dBic, 2.6dBic, 4.2dBic, 4dBic, 2.7dBic | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MAT.176A4-IN-1 5G MULTI-ANTENNA BOARD (6 |
3,253 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 6.37dBi, 6.3dBi, 5.89dBi, 5.29dBi, 3.59dBi, 5.79dBi, 6.34dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
VFD69383W1NJN-518QANT LOW PROFILE 2-PORT SHARKFIN |
2,052 |
|
Datasheet | - | Bulk | Active | Cellular, General ISM, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz | Dome | 12 | 2 | - | 0.9dBi, 1.7dBi, 1.9dBi, 3.7dBi, 4.7dBi, 5.6dBi, 4.3dBi, 3.8dBi, 3.8dBi, 5.1dBi, 5.5dBi, 7dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
|
MFB4605RF ANT 465MHZ WHIP STR N TYPE |
3,142 |
|
Datasheet | MFB | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 465MHz | 460MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 5dB | 250 W | - | N Type Male | - | - | - | Pole Mount | 77.000" (195.58cm) | ISM, LoRa, LPWAN |
|
ARM52211DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
1,839 |
|
Datasheet | ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
GPS-TMG-HR-26NRF ANT 1.575GHZ DOME N TYP F POL |
3,478 |
|
Datasheet | GPS-TMG-HR-26N | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
