RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA510.C.CG.005RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA |
746 |
|
Datasheet | Hercules | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz | 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz | Dome | 2 | 2 | -10dB | 3.9dBi, 3dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
MA520.A.BC.008RF ANT 850MHZ/900MHZ DOME PNL MT |
245 |
|
Datasheet | Hercules | Bag | Active | Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz | 850MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.825GHz | Dome | 7 | - | -8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB | 1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi | 10 W | Cable - 2m | SMA Male, RP-SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi |
|
MA501.C.AC.001RF ANT 1.575GHZ/2.4GHZ DOME CAB |
184 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.2GHz | 1.57GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz | Dome | 3 | 2, 1.8 | -12.1dB, -15.3dB | 2dBi, 4.05dBi, 4.37dBi | - | Cable - 3m, LNA, Filter | SMA Male (1), RP-SMA Male (1) | IP67, IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, GPS, WLAN, Zigbee™ |
|
PCTP915RF ANT 915MHZ WHP STR TNC M CONN |
3,897 |
|
Datasheet | PCTP | Bulk | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | 5 W | - | TNC Male | IP67 | - | - | Connector Mount | 12.992" (330.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, LTE, LMR/TETRA/P25, Wi-Fi |
|
MA841.A.BI.002RF ANT DOME SMA MALE |
4,057 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 7 | 3.5 | - | 1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | 2G, 3G, 4G, LTE |
|
OMB.6912.03F21RF ANT 829MHZ/2.2GHZ WHIP STR N |
1,366 |
|
Datasheet | - | Tube | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 3 | - | 4.5dBi | 150 W | - | N Type Female | IP65 | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|
33-2710-00-5000RF ANT 1.561/1.575GHZ DOME MAGNT |
2,374 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 4.75dBic | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 0.594" (15.10mm) | Beidou, Galileo, GLONASS, GPS |
|
33-3142-14-01PRE-FILTERED TIMING ANTENNA |
341 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 2 | - | 4.5dBic | - | LNA, Filter | - | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | GPS |
|
33-2712-00-5000PRE-FILTERED, BEIDOU B1 / GALILE |
3,982 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.75dBi | - | Cable - 5m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS, SBAS |
|

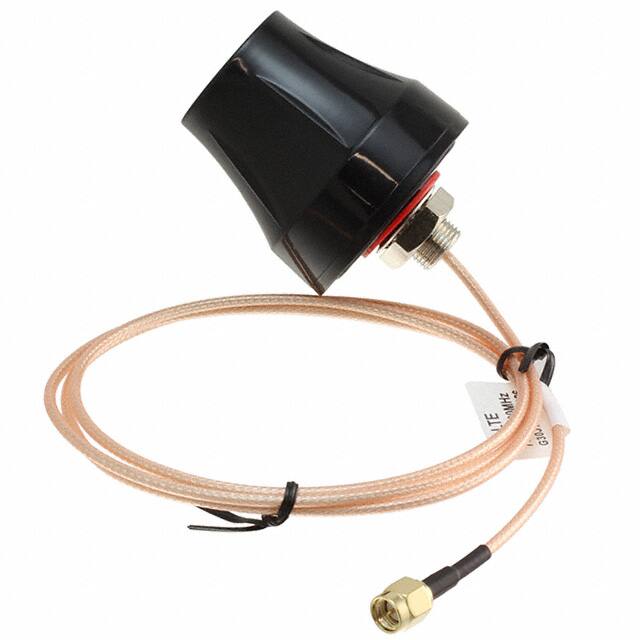

ANT-G30B108111RF ANT 700/850MHZ WHIP STR PANEL |
117 |
|
Datasheet | Olympian | Bulk | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 2.5GHz ~ 2.8GHz | Whip, Straight | 4 | 3 | - | 1.2dBi, 3.2dBi, 2.5dBi, 1.5dBi | 5 W | Cable - 1m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.890" (48.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA |
|
33-3710-01-01RF ANT 1.561GHZ/1.575GHZ DOME |
1,179 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 28dB | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
WDMP.2458.AWDMP.2458.A 2.4/5.8GHZ MECHANICA |
338 |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -6dB, -7dB | 5.5dBi, 7.3dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.278" (7.07mm) | Wi-Fi |
|
BGYD890KRF ANT 925MHZ YAGI N TYPE F POLE |
2,239 |
|
Datasheet | BGYD | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 7-Element | 1 | - | - | 10dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 23.800" (604.52mm) | ISM, LoRa, LPWAN |
|
GPSU15MRF ANT 1.575GHZ DOME NMO 1.5" |
3,431 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 26dB | - | - | NMO | - | - | - | Base Mount | 1.500" (38.10mm) | GPS |
|
MA140.A.LB.001RF ANT 829MHZ/1.575GHZ DOME 1M |
262 |
|
Datasheet | Olympian | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 2.1GHz, 2.65GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.8GHz | Dome | 5 | 3, 1.5, 1.5, 3, 3 | - | 1.58dBi, 2dBic 2.7dBi, 1.11dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 2G, 3G, 4G, GLONASS, GPS, LTE |
|
PCTHPDLTE-SFRF ANT 657.5MHZ DOME SMA MALE |
4,022 |
|
Datasheet | PCTHPDLTE-SF | Bulk | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4GHz, 5.55GHz | 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz, 5.15GHz ~ 5.95GHz | Dome | 9 | - | - | 3.8dBi, 5.2dBi, 6.2dBi, 7.5dBi, 8.9dBi, 9.4dBi, 5.4dBi, 9.4dBi, 8.1dBi | 50 W | Cable - 5.1816m | SMA Male | IP67 | - | - | Panel Mount | 5.197" (132.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
FG9023RF ANT 915MHZ WHIP STR N FEM |
2,244 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | 200 W | - | N Type Female | - | - | - | Bracket Mount | 23.125" (587.40mm) | - |
|
MA850.A.LBICG.001RF ANT 829MHZ/1.94GHZ DOME SMA |
4,396 |
|
Datasheet | - | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.59GHz, 5.38GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Dome | 4 | 3 | -10dB | 4.3dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
OMB.915.B03F21RF ANT 915MHZ WHIP STR N FEM |
252 |
|
Datasheet | - | Tube | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 3.5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|
33-1829-05-0150EMBEDDED, LIGHTWEIGHT GPS L1/L2 |
1,168 |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.575GHz, 1.602GHz | 1.215GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8 | - | 3.7dBi, 4dBi | - | Cable - 150mm, LNA | MCX Male | IP67 | - | - | Chassis Mount | 0.382" (9.70mm) | Beidou, Galileo, GLONASS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
