RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDA24700/2700RF ANT 829MHZ/1.9GHZ BLADE SMA |
251 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Blade, Tilt | 3 | 2.5 | - | 2dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 8.976" (228.00mm) | LTE |
|
TD.95.6H31868/915MHZ DIPOLE ANTENNA N-TYPE |
133 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Blade | 2 | - | - | 1.33dBi, 1.54dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 8.976" (228.00mm) | ISM, LoRa, Sigfox |
|
AGGBP.25A.07.0060ARF ANT 1.575/1.602GHZ CER 60MM |
1,609 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2 | - | -1dBi | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.311" (7.90mm) | Beidou, Galileo, GLONASS, GPS |
|
AGGBP.25B.07.0060ARF ANT 1.561/1.575GHZ CER 60MM |
289 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 2 | - | 27dBi, 25.5dBi, 26dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.311" (7.90mm) | Beidou, Galileo, GLONASS, GPS |
|

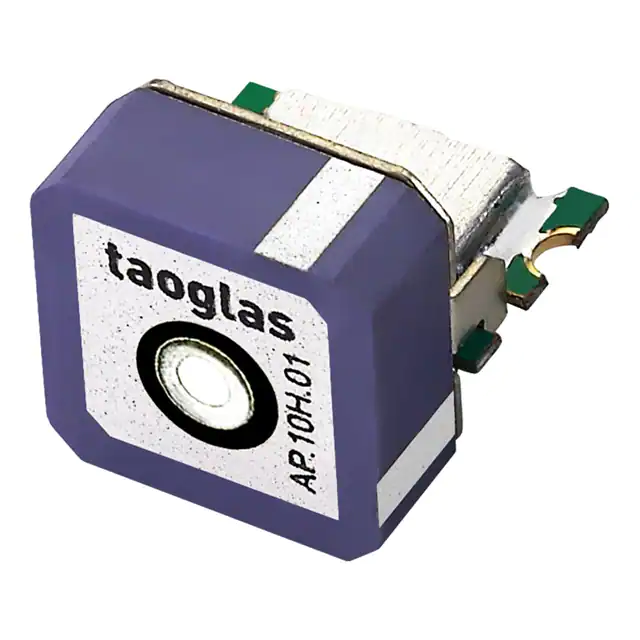

AP.10H.01RF ANT 1.575GHZ CER PATCH SLD |
996 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -10dBic | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
ANT-2.4-ID-2000-RPSRF ANT 2.4GHZ WHIP STR BRK MT 2M |
105 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 2m | RP-SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
TANGO25A/0.1M/SMAM/S/RP/29RF ANT 2.4GHZ/5.4GHZ PUCK RP-SMA |
121 |
|
Datasheet | TANGO 25A | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz | Puck | 2 | 2 | - | 5dBi | - | - | RP-SMA Male | IP65 | - | - | Panel Mount | 0.866" (22.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-5GW-SPNF1RF ANT 617MHZ-5GHZ 5G DOME N CON |
230 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.955GHz, 2.35GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Module | 10 | 1.6, 1.7, 1.8, 3, 3.6, 4.1, 7 | - | 1.3dBi, 3.3dBi, 3.3dBi, 5.1dBi, 4.5dBi, 5.1dBi, 6.5dBi, 6.5dBi, 6.8dBi, 8.4dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 2.787" (70.80mm) | 2G, 3G, 4G, 5G, LTE |
|
|
ANT-W63WS6-IPW1-SMARF ANT 2.4/5/6GHZ WIFI7 TILT SMA |
725 |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.025GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.5, 1.6, 1.8 | - | 9.4dBi, 4.7dBi, 7.2dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.992" (203.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
AEACAD097015-S698RF ANT 4G/ LTE MAG MOUNT |
348 |
|
Datasheet | AEAC | Bulk | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Straight | 1 | 2.5 | - | 5dBi | - | Cable - 3m | SMA | - | - | - | Magnetic | 3.819" (97.00mm) | 4G, LTE |
|
001-0012RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
1,644 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.91GHz ~ 5.85GHz | Whip, Tilt | 2 | 2.5 | - | 2dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.488" (114.00mm) | - |
|
ANT-8/9-SPNF2RF ANT 868/915MHZ ISM DOME N CON |
683 |
|
Datasheet | - | Bag | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Dome | 2 | 1.7, 2.1 | - | 3.3dBi, 3.4dBi | 20 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.272" (83.10mm) | ISM, LoRaWAN, LPWA, Sigfox, Wi-Fi |
|
ANT-GSMPUKS-IP67RF ANT 900MHZ/1.9GHZ PUCK CAB 3M |
143 |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.9GHz | 850MHz ~ 950MHz, 1.77GHz ~ 2.1GHz | Puck | 2 | 2 | - | 2dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Panel Mount | 0.917" (23.30mm) | GSM |
|
AA.170.301111RF ANT 1.561/1.575GHZ CER PATCH |
103 |
|
Datasheet | Magma | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 2 | - | 5.76dBi, 4.46dBi, 5.98dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP65 | - | - | Magnetic | 0.673" (17.10mm) | Beidou, GLONASS, GPS |
|
|
AGPSF.36G.07.0100CGNSS L1/L2 LOW PROFILE STACKED P |
128 |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.22GHz, 1.24GHz, 1.56GHz, 1.575GHz, 1.576GHz, 1.6GHz | 1.21GHz ~ 1.24GHz, 1.24GHz ~ 1.25GHz, 1.559GHz ~ 1.56GHz, 1.563GHz ~ 1.59GHz, 1.564GHz ~ 1.61GHz, 1.59GHz ~ 1.61GHz | Ceramic Patch | 6 | - | -10dB | 4.2dBi, 3.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.433" (11.00mm) | Beidou, Galileo, GLONASS, GPS |
|
TANGO24/1M/SMAM/S/RP/17RF ANT 2.4GHZ PUCK RP-SMA MALE |
106 |
|
Datasheet | TANGO 24 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Puck | 1 | 1.5 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Panel Mount | 0.591" (15.00mm) | Bluetooth, WLAN, Zigbee™ |
|
GSA.8841.A.105111RF ANT 829MHZ/1.6GHZ FLAT BAR |
588 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.6GHz, 1.9GHz, 2.6GHz, 5.4GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz | Flat Bar | 5 | - | - | 1.56dBi, 1.38dBi, 3.79dBi, 4.87dBi, 5.35dBi | 5 W | - | SMA Male | IP65 | - | - | Adhesive | 0.457" (11.60mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
TG.35.8113RF ANT 700MHZ/850MHZ WHIP TILT |
818 |
|
Datasheet | APEX II | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 700MHz, 850MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 5.8GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz, 4.8GHz ~ 6GHz | Whip, Tilt | 10 | - | - | 4.42dBi, 1.59dBi, 3.15dBi, 2.7dBi, 4.93dBi, 4.43dBi, 2.55dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.740" (222.00mm) | CDMA, DCS, EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
TANGO20/3M/SMAM/S/S/26RF ANT 1.575GHZ PUCK SMA MALE |
153 |
|
Datasheet | TANGO 20 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Puck | 1 | 1.5 | - | 28dB | - | - | SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | GPS |
|
A09-HASM-675RF ANT 900MHZ WHP TILT RP-SMA 6" |
196 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 1.9 | - | 2.15dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.906" (150.00mm) | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
