RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-DB1-RAF-SMARF ANT 2.45GHZ/5.3GHZ WHIP TILT |
272 |
|
Datasheet | RAF | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz | Whip, Tilt | 2 | 1.9 | - | 2.5dBi, 4.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.130" (104.90mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-433-CW-HWR-RPSRF ANT 433MHZ WHIP TILT RP-SMA |
202 |
|
Datasheet | HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
DELTA19/X/SMAM/RP/S/35RF ANT 2.4GHZ WHIP STR MALE 18MM |
791 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 0.748" (19.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-433-CW-HWR-SMARF ANT 433MHZ WHIP TILT SMA MALE |
327 |
|
Datasheet | HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
SB698SMA3RF ANT 829MHZ/1.94GHZ BLADE SMA |
3,676 |
|
Datasheet | Stealth Blade | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Blade | 3 | 2.5 | - | 2dBi | 3 W | - | SMA Male | IP67 | - | - | Adhesive | 4.161" (105.70mm) | LTE |
|
6001110PADDLE CELLULAR ANTENNA |
203 |
|
Datasheet | AirLink® - Accessory | Box | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Whip, Tilt | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | - | LTE |
|

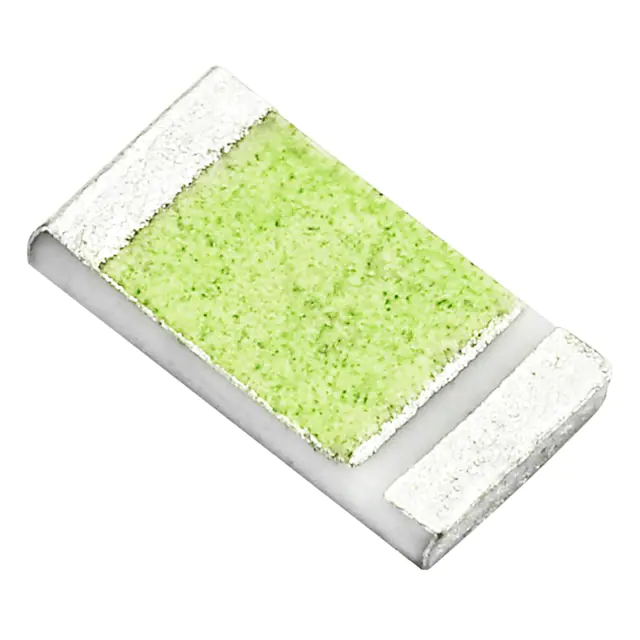

GGBLA.01.ARF ANT 1.561GHZ/1.575GHZ CHIP |
32,483 |
|
Datasheet | Unifier | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.598GHz ~ 1.608GHz | Chip | 3 | 2 | -25dB | 3.2dBi, 2.6dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, GLONASS, GPS |
|
GW.71.5153RF ANT 2.4GHZ/5.4GHZ WHIP TILT |
3,267 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2, 2.1 | - | 3.8dBi, 5.5dBi | 2 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.638" (194.00mm) | WLAN |
|
AP.17E.07.0064ARF ANT 1.575GHZ CER PATCH MHFI |
1,327 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
ANT-916-MHW-RPS-SRF ANT 916MHZ WHP CTR ADH 79" |
401 |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-418-CW-HWR-SMARF ANT 418MHZ WHIP TILT SMA MALE |
278 |
|
Datasheet | HWR | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 398MHz ~ 438MHz | Whip, Tilt | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

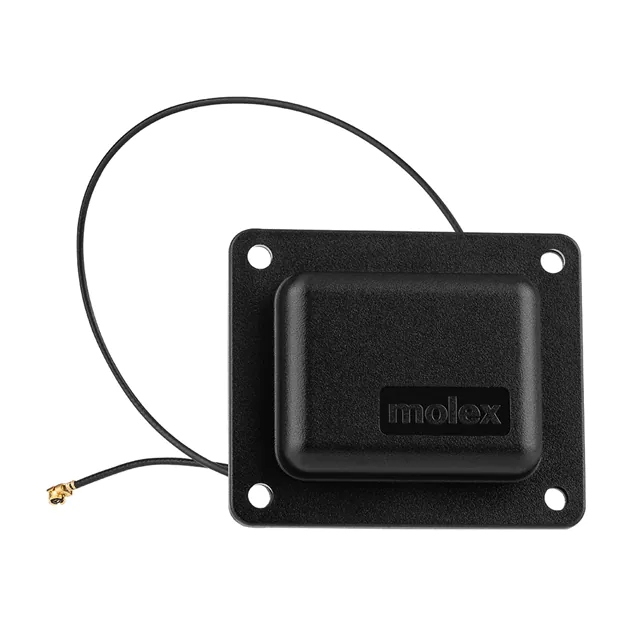

2158680001MOLEX ON-METAL WIFI EXTERNAL ANT |
151 |
|
Datasheet | 215868 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Module | 2 | - | -6dB | 2dBi, 5.5dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.335" (8.50mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
ANT-916-WRT-RPSRF ANT 916MHZ DOME RP-SMA PNL MT |
571 |
|
Datasheet | WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
TG.30.8113RF ANT 750MHZ/892MHZ WHIP TILT |
3,056 |
|
Datasheet | Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
ANT-GNRM-L1A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
170 |
|
Datasheet | GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 4 | 1.2, 1.3, 1.5 | -14.5dB, -19dB, -19.9dB | 32.8dBi, 33.5dBi, 33.4dBi, 33.4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AA.105.301111RF ANT 1.575GHZ MOD SMA MALE MAG |
3,655 |
|
Datasheet | Titan | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.551" (14.00mm) | GPS |
|
APAMPG-130RF ANT 1.575/1.602GHZ DOME SMA |
494 |
|
Datasheet | APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | Dome | 2 | 1.5 | - | 30dB | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GLONASS, GPS |
|
PC91.07.0100A.DBRF ANT 915MHZ PCB TRACE IPEX MHF |
451 |
|
Datasheet | TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.276" (7.00mm) | - |
|
|
GSA.8835.A.101111PHOENIX EXTERNAL 5G/4G ANT |
126 |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 657MHz, 752MHz, 892MHz, 1.48GHz, 1.96GHz, 2.59GHz, 3.4GHz, 3.85GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.5GHz ~ 4.2GHz, 5.15GHz ~ 5.93GHz | Flat Bar | 9 | - | - | 0.95dBi, 2.44dBi, 2.59dBi, 3.25dBi, 4.12dBi, 3.78dBi, 3.79dBi, 3.70dBi, 2.81dBi | 2 W | Cable - 1m | SMA Male | IP67, IP68 | - | - | Adhesive | 0.311" (7.90mm) | 4G, 5G |
|
ANT-2.4-WRT-MON-SMARF ANT 2.4GHZ DOME SMA ML PNL MT |
561 |
|
Datasheet | WRT-MON | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 0.8dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
