RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAMPJ-132RF ANT 1.575GHZ DOME MMCX MALE |
3,285 |
|
Datasheet | APAMPJ | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 1.5 | - | 4dBic | - | - | MMCX Male | - | - | - | Adhesive | 0.571" (14.50mm) | GPS |
|
AEACBK050048-SW2RF ANT 2400/5000MHZ PUCK SMA |
1,234 |
|
Datasheet | AEAC | Box | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 4.9GHz ~ 5.825GHz | Dome | 2 | 2.5 | - | 2dBi | - | Cable - 3m | SMA | - | - | - | Screw Mount | 1.890" (48.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
APRG2512F01-0400GGPS L1 + L2 AND IRIDIUM COMBINAT |
3,467 |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz | 1.217GHz ~ 1.237GHz, 1.574GHz ~ 1.576GHz, 1.594GHz ~ 1.61GHz | Ceramic Patch | 4 | 1.21, 1.48, 1.63 | -20.56dB, -13.22dB, -12.42dB | 1.5dBi, 0dBi, -0.5dBi, 0.5dBi | - | Cable - 400mm, LNA, Filter | SMA Male | - | - | - | Connector Mount | 0.488" (12.40mm) | GPS, IoT, Iridium™, M2M |
|
AEACBD081016-C2LGLTE/GPS MAGNETIC MOUNT COMBO ANT |
3,545 |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 2, 3 | - | 2.5dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.638" (16.20mm) | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
|

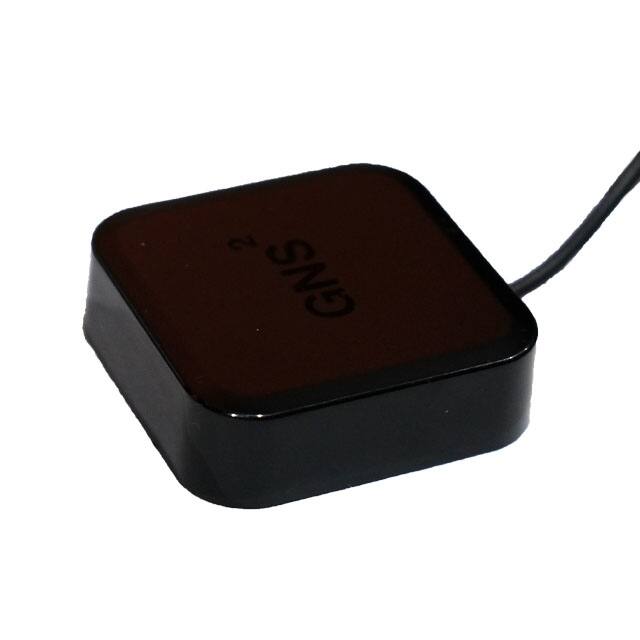

AEARBA048014-SG3RF ANT 1561/1575/1602MHZ DOME |
2,353 |
|
Datasheet | AEAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Puck | 1 | 2 | - | 5.78dBi, 4.27dBi, 5.65dBi | - | Cable - 5m, LNA | SMA | - | - | - | Adhesive | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AEACBA059015-C3GSWRF ANT GPS/GSM/WIFI COMB |
3,742 |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.575GHz, 1.94GHz, 2.442GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.484GHz | Dome | 4 | 1.5, 2 | - | 2dBi, 3dBi | - | - | SMA Male | - | - | - | Adhesive | 0.591" (15.00mm) | 2G, 3G, GPS, GSM, Wi-Fi |
|
APRG2512F01-0100SGPS L1+L2, GLONASS, IRIDIUM ANT |
2,346 |
|
Datasheet | APR | Tray | Active | Iridium, Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz, 1.602GHz, 1.625GHz | 1.215GHz ~ 1.239GHz, 1.575GHz, 1.602GHz, 1.625GHz | Ceramic Patch | 4 | 1.63 | - | 28dBi | - | Cable - 100mm | I-PEX-1(F) | - | - | - | Connector Mount | 0.488" (12.40mm) | Iridium, GLONASS, GPS |
|
|
AECW0801C09A-0500SEXTERNAL MIMO 2XLTE + WI-FI + GN |
3,442 |
|
Datasheet | AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.825GHz | Dome | 5 | 1.5, 2.5, 3 | - | 2.5dBi, 2dBic, 2dBi, 3dBi, 3dBi | - | Cable - 500mm | SMA Male | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS, Wi-Fi |
|
|
AECW0801C09C-0500SEXTERNAL MIMO 2XLTE + WIFI + GNS |
1,752 |
|
Datasheet | AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.825GHz | Dome | 5 | 1.5, 2.5, 3 | - | 2.5dBi, 2dBic, 2dBi, 3dBi, 3dBi | - | Cable - 500mm | SMA Male | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS, Wi-Fi |
|
|
APCH5951C02-3000SGNSS+LTE COMBINATION ANTENNA |
1,365 |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
