RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAMP-114RF ANT 1.575GHZ MOD SMA FEM ADH |
2,901 |
|
Datasheet | APAMP | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -24dB | 1dBic | - | - | SMA Female | - | - | - | Adhesive | 0.472" (12.00mm) | GPS |
|
PRO-OS-549RF ANT 2.4GHZ CAB CHAS MT 260MM |
4,507 |
|
Datasheet | External Antenna | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (1GHz ~ 2GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | - | 1 | 3.1 | - | 3dBi | - | Cable - 260mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.630" (16.00mm) | Bluetooth, WLAN, Zigbee™ |
|
AETC1302XS-SALTE 4G/5G & WI-FI 6E WHIP ANTENN |
4,702 |
|
Datasheet | AETC | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 788.5MHz, 1.513GHz, 2.2GHz, 3.75GHz, 4.7GHz, 6.15GHz | 617MHz ~ 960MHz, 1.452GHz ~ 1.575GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 7.15GHz | Whip, Straight | 6 | 2.5, 3 | - | 1dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | Bluetooth, IoT, Wi-Fi, WLAN, Zigbee™ |
|
APAKM4012-C2G3DRF ANT GNSS + SDARS STACK PATCH |
2,474 |
|
Datasheet | APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.561GHz, 1.575GHz, 1.589GHz, 1.602GHz, 2.332GHz | 1.561GHz ~ 1.602GHz, 2.32GHz ~ 2.345GHz | Ceramic Patch | 2 | - | -20dB, -6dB, -6dB, -30dB, -15dB | 2.7dBi, 4dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS, SDARS |
|

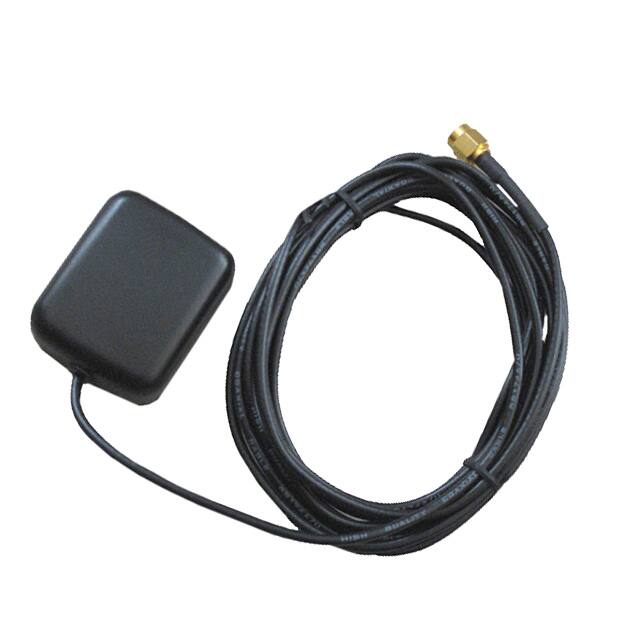

APAMP-107RF ANT 1.575GHZ MOD SMA MALE ADH |
4,323 |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | -26dB | 5dBic | - | - | SMA Male | - | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
|
AEACBD045015-SG2RF ANT 1575MHZ/1602MHZ PUCK SMA |
4,305 |
|
Datasheet | AEAC | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Puck | 1 | 1.5 | - | 5dBi | - | Cable - 3m, LNA, Filter | SMA | - | - | - | Magnetic | 0.598" (15.20mm) | GLONASS, GNSS, GPS |
|
AFAC240020-M698RF ANT LTE MIMO FPC |
2,723 |
|
Datasheet | AFAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | LTE |
|

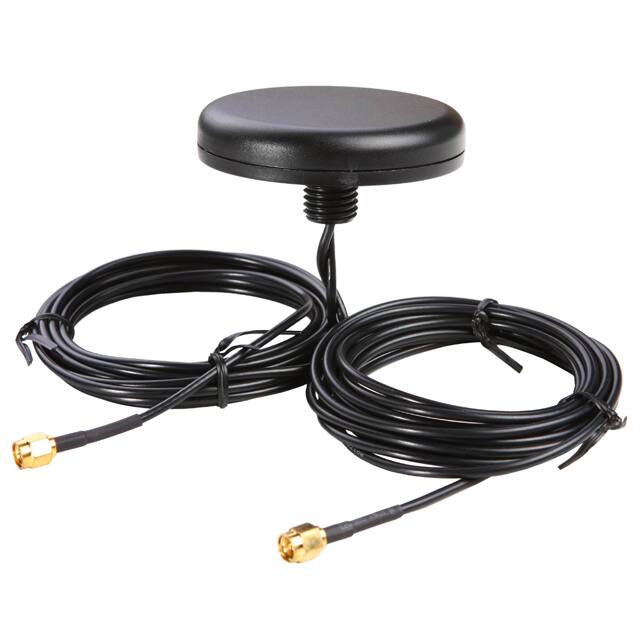

APAMPS-106RF ANT 900MHZ/1.575GHZ MOD ADH |
4,926 |
|
Datasheet | APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.575GHz, 1.8GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz | Module | 3 | 1.5, 2.0 | -26dB | -1dBi, 1dBi, 5dBic | - | Cable - 2m, LNA | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.555" (14.10mm) | GPS, GSM |
|

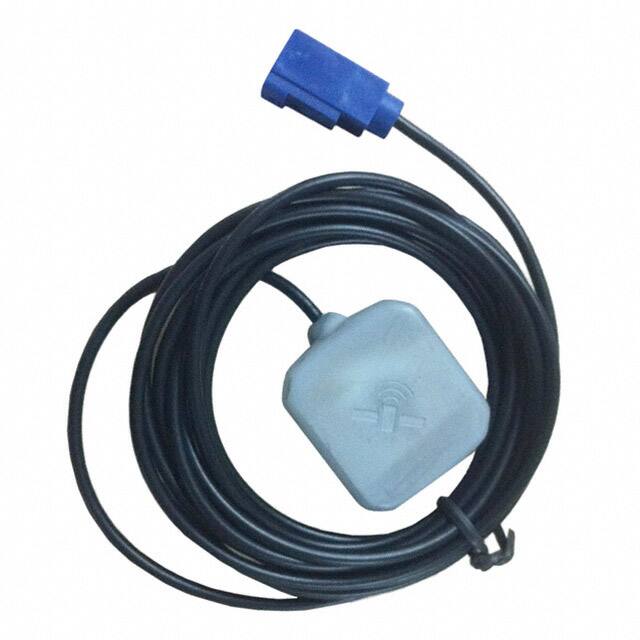

APAMP-113RF ANT 1.575GHZ MOD SMB ADH |
2,060 |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 5dBic | - | Cable - 2.5m, LNA | SMB, Fakra | - | - | - | Adhesive | 0.504" (12.80mm) | GPS |
|
APAMP-127RF ANT 1.575GHZ DOME FAKRA MAG |
4,699 |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMB, Fakra | - | - | - | Magnetic | 0.505" (12.83mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
