RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X1005249-LGA2SA10A2ANTENNA GPS-GLONASS/LTE |
3,149 |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 2.3, 3.8, 5 | - | 3.7dBi, 3dBi, 3.5dBi, 3.6dBi, 3.6dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | GLONASS, GPS, LTE |
|
W3P42X8F04-H050D3B0TWI-FI DUAL BAND/BLUETOOTH PCB AN |
1,402 |
|
Datasheet | - | Bag | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
X9001248-4GMRMB1000L4G/CELLULAR MAGNET MOUNT EXTERNA |
1,810 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -6dBi, -5.2dBi | 1.8dBi, 1.9dBi | - | Cable - 1m | RP-SMA Male | IP65 | - | - | Magnetic | 4.331" (110.00mm) | 2G, 3G, 4G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
|
1002232-01EVB - EVALUATION BOARD FOR 10022 |
4,000 |
|
Datasheet | - | Bag | Active | Bluetooth, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 866.5MHz, 915MHz, 2.45GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Flat Bar | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Bluetooth, ISM, LoRa, M2M, Sigfox, WLAN |
|
|
9002133-02EVB - EVALUATION BOARD FOR 90021 |
4,945 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 2.32, 2.34 | - | 0.5dBi, 1.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | IoT, ISM, LoRa, M2M |
|
M830110-10KRF ANT 1.561GHZ/1.575GHZ CHIP |
3,557 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830510-10KRF ANT 2.4GHZ/5.4GHZ CHIP SLD |
2,702 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
M830320-4.5KRF ANT 2.4GHZ CHIP SOLDER SMD |
1,650 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
M830510RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
1,019 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

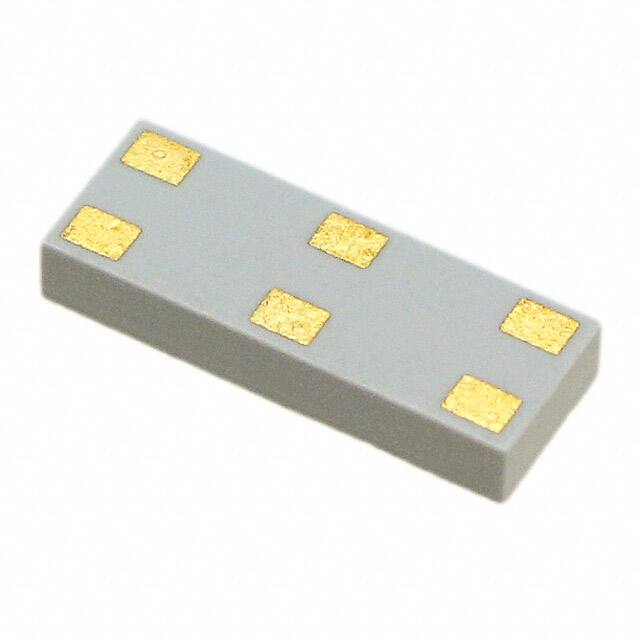

M830110RF ANT 1.561GHZ/1.575GHZ CHIP |
2,986 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
