RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1001312RF ANT 2.4GHZ CHIP SOLDER SMD |
1,973 |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.8 | - | 1.72dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002649EMBEDDED ANTENNA, GPS, GLONASS, |
3,020 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz | 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | -15dB | 5dBi, 5.5dBi, 5.5dBi, 5.5dBi | - | - | Solder | - | - | - | Adhesive, Through Hole | 0.264" (6.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
1000423RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
2,375 |
|
Datasheet | Prestta™ | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Stamped Metal | 4 | 3, 2.5, 2.5, 3 | - | -0.6dBi, 2.5dBi, 4.5dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.280" (7.10mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
X9001248-4GMSMB1000RANTENNA,LTE MAGNETIC 1000 |
2,318 |
|
Datasheet | - | Box | Active | 802.15.4, Cellular | Wide Band | 700MHz, 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 6 | - | -5.2dB, -5.8dB, -6dB | -0.5dBi, -0.2dBi, 1.8dBi, 1.9dBi | - | - | SMA Male | IP65 | - | - | Magnetic | 4.409" (112.00mm) | LTE, LoRa, Sigfox |
|
1004627ANTENNA ASSY, GPS 25X25X5 |
3,523 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2, 3 | - | 3.7dBi, 3dBi | - | Cable - 72mm | I-PEX MHF3 | - | - | - | Adhesive | 0.209" (5.30mm) | GLONASS, GPS |
|
1004112-B002ANTENNA ASSY, EXTERNAL LTE TNC |
1,205 |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular | Wide Band | 825MHz, 1.955GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | 5 W | - | TNC Male | - | - | - | Connector Mount | 8.941" (227.10mm) | LTE, LoRa, LPWAN, Sigfox |
|

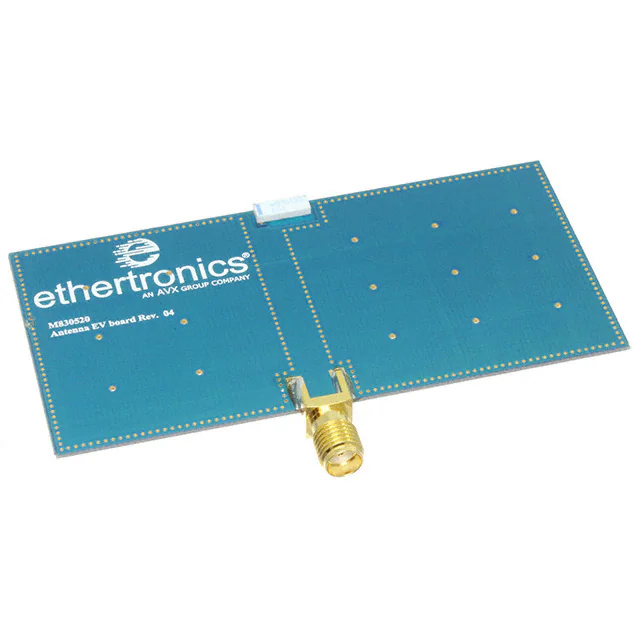

M830520-01RF ANT 2.4GHZ/5.35GHZ CHIP SLD |
3,503 |
|
Datasheet | Savvi™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.35GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6 | - | 3.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002686RF ANT 5GHZ STAMPED MET SLDR SMD |
1,919 |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Stamped Metal | 2 | 2 | - | 6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | Wi-Fi, WLAN |
|
1003893FT-AA10L0025ANTENNA ASSY, WLANB FT AA10 0025 |
3,060 |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 25mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
1004796ANTENNA PCB, LTE MRR |
4,202 |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Cellular | Wide Band | 600MHz, 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Chip | 9 | 2.5, 3 | - | 1.5dBi, 1.6dBi, 3.1dBi, 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE, LoRa, LPWAN, Sigfox |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
