RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HG2409RD-RTPANTRUBBER DUCK 2.4GHZ 9DBI |
203 |
|
Datasheet | HG | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | RP-TNC | - | - | - | Connector Mount | 15.200" (386.08mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
GVLB356.AGPS/GLONASS/BEIDOU SINGLE FEED S |
3,511 |
|
Datasheet | - | Tray | Active | Navigation | Wide Band | 1.227GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 4 | 2, 3, 4 | - | 4.03dBi, 2.73dBi, 2.73dBi, 3.08dBi | - | - | Pin | - | - | - | Adhesive | 0.241" (6.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
OD617-6000M243ANT DAS OMNI 4G LTE 5G CBRS MIMO |
4,424 |
|
Datasheet | Omni Antenna | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female (2) | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
|
RO2406NMRF ANT 2.4GHZ WHIP STR N MALE |
159 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Male | IP67 | - | - | Connector Mount | 11.830" (300.48mm) | - |
|
|
L000322-012-PORT - 2X 4G/5G ANTENNA |
1,367 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 729MHz, 860MHz, 2.19GHz, 3.55GHz | 698MHz ~ 760MHz, 760MHz ~ 960MHz, 1.69GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 4 | 1.75, 2 | - | 2dBi, 2.8dBi, 3dBi, 3dBi | 20 W | Cable - 1m | SMA Female (2) | IP67, IP69K | - | - | Stud | 1.969" (50.00mm) | 4G, 5G, Wi-Fi |
|
|
LPTNG24-71DMG0457ANT WIFI 6E/7 TRI BAND SMA MALE |
4,090 |
|
Datasheet | Monopole Antenna | Bag | Active | General ISM, WiFi | Wide Band | 2.45GHz, 6.012GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.125GHz | Module | 2 | 2, 2.5 | - | 2.6dBi, 2.9dBi | 3 W | Cable - 457.2mm | SMA Male | IP67 | - | - | Direct Mount | 1.420" (36.07mm) | DSRC, ISM, Wi-Fi |
|
|
AHP5354A.07.0100CGNSS L1/L5 ACTIVE PATCH 2 STAGE |
2,031 |
|
Datasheet | Inception | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Flat Patch | 4 | 1, 2 | - | 2.07dBi, 2.61dBi, 2.61dBi, 2.06dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | PCB | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.178.B.301111MAGMAX2 ACTIVE GPS L1/L5 MAG MOU |
2,943 |
|
Datasheet | Magma X | Bag | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 4 | 3, 4 | - | 0.26dBi, 0.04dBi, 0.04dBi, -0.5dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
AA.175.B.301111MAGMAX2 GPS L1/L2 MAG MOUNT ANTE |
3,435 |
|
Datasheet | Magma X | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.562GHz, 1.575GHz, 1.603GHz | 1.217GHz ~ 1.238GHz, 1.559GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz | Module | 4 | 2, 3, 4 | - | 1.27dBi, 0.04dBi, 0.04dBi, 0.06dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
L000321-013-PORT - WIFI,4G/5G,GNSS ANTENNA |
3,563 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 724MHz, 800MHz, 905MHz, 1.5825GHz, 2.19GHz, 2.45GHz, 3.55GHz, 5.525GHz | 698MHz ~ 750MHz, 750MHz ~ 850MHz, 850MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.9GHz | Dome | 8 | 1.5, 2, 3.5, 3.9, 4 | - | 1.83dBi, 1.83dBi, 1.83dBi, 3dBi, 6dBi, 3dBi, 6dBi, 4dBi | 20 W | Cable - 1m, LNA | RP-SMA, SMA | IP67 | - | - | Stud | 1.024" (26.00mm) | 4G, 5G, GNSS, Wi-Fi |
|
AECS1806D07ZS-3000SRF ANT 4IN1 LTE MIMO/GNSS/AMFM S |
4,750 |
|
Datasheet | AECS | Bulk | Active | Cellular, Navigation | Wide Band | 1.079MHz, 92MHz, 829MHz, 1.5815GHz, 2.2GHz | 529kHz ~ 1.629MHz, 76MHz ~ 108MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 19dB, 8dB, 3dBi, 3.5dBi, 2dBic | - | Cable - 3m, LNA | FME Female (1), SMA Male (3) | IP67 | - | - | Panel | 2.713" (68.90mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE |
|
MA2330.A.ACT.0023IN1 ADHESIVE MOUNT 300MM RG-174 |
2,276 |
|
Datasheet | - | Bag | Active | Navigation, WiFi | Wide Band | 98MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 5.415GHz | 88MHz ~ 108MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz | Module | 6 | - | -10dB, -27.8dB, -10dB | 3.3dBi, 4dBi, 3.7dBi | - | Cable - 300mm | SMB, Fakra | IP21 | - | - | Surface Mount | 0.585" (14.86mm) | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
GPSLPMB403RF ANT 829MHZ/2.2GHZ MODULE ADH |
2,521 |
|
Datasheet | Jaguar | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | Module | 3 | 2.2 | - | 5.4dBi | - | Cable - 600mm | RP-SMA Male (1), RP-TNC Male (1), SMA Male (1), TNC Male (1) | IP67 | - | - | Adhesive | 0.949" (24.10mm) | Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
|
|
TS.15.0111GPS/GLONASS/GALILEO/BEIDOU PASSI |
1,447 |
|
Datasheet | Accura | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | - | 1.561GHz ~ 1.603GHz | Module | 8 | 2.1 | - | 1.19dBi, 2.29dBi, 1.4dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.362" (60.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
PD617-4200S143ANT DAS DIR 4G LTE 5G CBRS SISO |
2,013 |
|
Datasheet | Directional DAS | Box | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.45GHz, 2.755GHz, 4GHz | 617MHz ~ 824MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz | Module | 5 | 1.7, 1.8, 2 | - | 6dBi, 6dBi, 8dBi, 9dBi, 9dBi | 50 W | Cable - 300mm | 4.3/10 - Female | IP50 | - | - | Wall Mount | 2.402" (61.00mm) | 4G, 5G |
|
|
L000322-023-PORT - 2X 4G/5G,1X GNSS ANTENN |
3,903 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 729MHz, 860MHz, 1.5825GHz, 2.19GHz, 3.55GHz | 698MHz ~ 760MHz, 760MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Module | 5 | 1.75, 2 | - | 2dBi, 2.8dBi, 3dBi, 3dBi, 3dBi | 20 W | Cable - 1m, LNA | SMA Female (3) | IP67, IP69K | - | - | Stud | 1.969" (50.00mm) | 4G, 5G, GNSS, Wi-Fi |
|

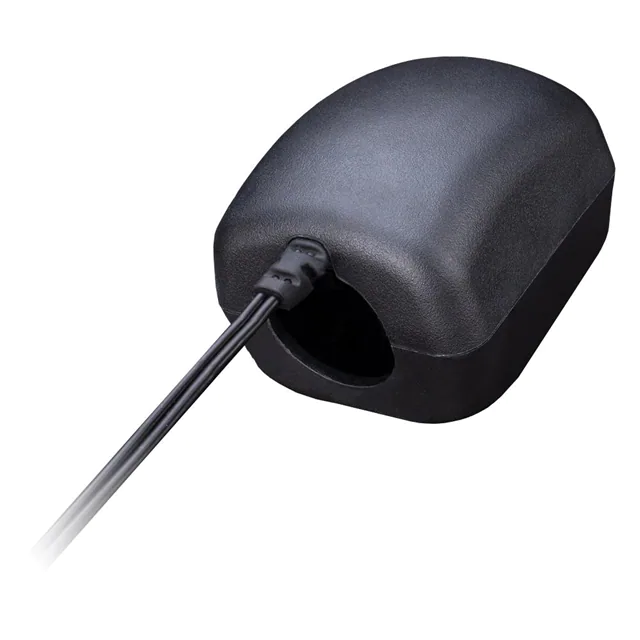

MA5022.A.AX.002MIRROR RAIL MOUNT 300MM RG-174 : |
4,244 |
|
Datasheet | - | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 2.3325GHz | 1.559GHz ~ 1.563GHz , 1.574GHz ~ 1.576GHz , 2.32GHz ~ 2.345GHz | Dome | 3 | - | -10dB, -10dB | 3dBi, 5.4dBi | - | Cable - 300mm | SMB, Fakra | IP67 | - | - | Panel Mount | 0.512" (13.00mm) | GPS |
|
|
YEMM517J1AANTENNA |
4,783 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MHO5GFR1NM5G FR1 600MHZ-6GHZ OMNI ANTENNA |
165 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz | 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz | Whip, Straight | 8 | 2.5, 2.7, 3, 3.1, 3.5, 4.5 | - | 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi | 25 W | - | N Type Male | IP67 | - | - | Bracket Mount | 9.382" (238.30mm) | 5G |
|
|
A.85.A.101111BOLT - LOW PROFILE HIGH PRECISIO |
4,078 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.587GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.581GHz, 1.569GHz ~ 1.587GHz, 1.569GHz ~ 1.605GHz | Module | 5 | - | - | 3.7dBi, 0.52dBi, 2.72dBi, 2.72dBi, 2.83dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male | IP65 | - | - | Screw Mount | 1.000" (25.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
