RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST0227-41-501-ARF ANTENNA EXTERNAL WI-FI DUAL-B |
101 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Flat Bar | 2 | - | -10dB | 3dBi, 2dBi | 2 W | Cable - 1m | RP-SMA | - | - | - | Connector Mount | 0.276" (7.00mm) | Wi-Fi |
|
|
AEACBA045015-SG2RF ANT 1575MHZ/1602MHZ PUCK SMA |
993 |
|
Datasheet | AEAC | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Puck | 1 | 1.5 | - | 5dBi | - | Cable - 3m, LNA, Filter | SMA | - | - | - | Adhesive | 0.598" (15.20mm) | GLONASS, GNSS, GPS |
|
PA.700.ARF ANT 700MHZ/850MHZ CHIP SLD |
900 |
|
Datasheet | Viking | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 6 | 3 | - | 2dBi, 1.4dBi, 0.9dBi, 3.7dBi, 3.9dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
|
ST0428-31-001-ARF ANTENNA STICK SMA PLUG WIDE B |
234 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 825MHz, 1.94GHz, 2.5GHz, 3.55GHz, 5.55GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | Whip, Straight | 5 | - | -10dB, -8dB, -7dB | 3.7dBi, 4dBi, 3.8dBi, 2.8dBi, 6.1dBi | 1 W | - | SMA | - | - | - | Connector Mount | 5.256" (133.50mm) | 5G |
|
|
L000619-03ANTENNA LTE HDP ADHESIVE BK 3M S |
934 |
|
Datasheet | - | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.2, 1.3, 1.4, 1.5, 1.6, 1.9, 2.1, 2.4 | - | 3.7dBi, 3.8dBi, 2dBi, 3.1dBi, 6.2dBi, 3.9dBi, 4.5dBi, 4.3dBi, 5.2dBi, 4.9dBi, 3.6dBi, -1.9dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.320" (8.12mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
YECW000N1AANTENNA |
287 |
|
Datasheet | - | Retail Package | Active | Cellular | Wide Band | 460MHz, 830MHz, 2.2GHz | 450MHz ~ 470MHz, 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | - | - | - | Cable - 2m | SMA Male | - | - | - | Screw Mount | 1.398" (35.50mm) | 4G, LTE |
|
|
ANT8010JLC1B1516AANTENNA PATCH 1.6GHZ GPS/GLO |
890 |
|
Datasheet | 8010 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 3.62dBi, 3.71dBi | - | Cable - 100mm, LNA, Filter | I-PEX | - | - | - | - | 0.075" (1.90mm) | GLONASS, GPS |
|
|
DELTA47/SMAM/365G HINGED BLADE ANTENNA FOR 600- |
463 |
|
Datasheet | Delta 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | Wide Band | 1.155GHz, 3.116GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz | Whip, Straight | 3 | - | - | 7.77dBi, 7.77dBi, 7.77dBi | 10 W | - | SMA Male | - | - | - | Direct Mount | 5.508" (139.90mm) | 2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
ST0457-20-501-ARF ANTENNA STICK RP-SMA PLUG WID |
499 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 3.55GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Right Angle | 4 | - | -5dB, -4dB, -3dB | 3.5dBi, 6.6dBi, 4.7dBi, 4.8dBi | 10 W | - | RP-SMA | - | - | - | Connector Mount | 2.815" (71.50mm) | 4G, LTE |
|
|
L000618-01ANTENNA LTE VDP ADHESIVE BK 1M S |
954 |
|
Datasheet | - | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.3, 1.4, 1.5, 1.6, 1.7, 2.2, 2.5 | - | 4.2dBi, 4.9dBi, 4.9dBi, 4.2dBi, 3.9dBi, 1.8dBi, 4.5dBi, 4.5dBi, 1.3dBi, 0dBi, -0.6dBi, -3.3dBi | 10 W | Cable - 1m | SMA Male | IP67 | - | - | Adhesive | 0.340" (8.64mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
TI.33.A111410-430MHZ TERMINAL MOUNT ANTENN |
468 |
|
Datasheet | * | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 420MHz | 410MHz ~ 430MHz | Whip, Straight | 1 | - | - | -6.61dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.197" (55.80mm) | 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
|
|
TI.34.A111450-470MHZ TERMINAL MOUNT ANTENN |
370 |
|
Datasheet | - | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | - | -5.40dB | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 2.197" (55.80mm) | 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
|
|
ST0330-31-001-AIP67 WIDE BAND EXTERNAL RF ANTEN |
197 |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 832MHz, 1.94GHz, 2.495GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Flat Bar | 3 | - | -10dB, -6dB | 3.8dBi, 4.5dBi, 3.2dBi | 1 W | Cable - 1m | SMA | IP67 | - | - | - | 0.311" (7.90mm) | 4G, IoT, LTE |
|
|
ST0230-31-001-AIP67 DUAL BAND EXTERNAL RF ANTEN |
193 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Flat Bar | 2 | - | -10dB | 3.2dBi, 2dBi | 1 W | Cable - 1m | SMA | IP67 | - | - | - | 0.311" (7.90mm) | IoT, Wi-Fi |
|
|
HP24510.ADUAL FEED GNSS L1/L2 STACKED PAT |
187 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 6 | - | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
ST0457-20-001-ARF ANTENNA STICK SMA PLUG WIDE B |
245 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 3.55GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Whip, Right Angle | 4 | - | -5dB, -4dB, -3dB | 3.5dBi, 6.6dBi, 4.7dBi, 4.8dBi | 10 W | - | SMA | - | - | - | Connector Mount | 2.815" (71.50mm) | 4G, LTE |
|
|
L000795-15ANTENNA LTE VDP ADH BK 1.5M FAKR |
993 |
|
Datasheet | - | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 657.5MHz, 750.5MHz, 875.5MHz, 1.581GHz, 1.955GHz, 2.35GHz, 2.442GHz, 2.593GHz, 3.55GHz, 3.625GHz, 3.95GHz, 4.965GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.7GHz, 3.55GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4. | Flat Bar | 12 | 1.3, 1.4, 1.5, 1.6, 1.7, 2.2, 2.5 | - | 4.2dBi, 4.9dBi, 4.9dBi, 4.2dBi, 3.9dBi, 1.8dBi, 4.5dBi, 4.5dBi, 1.3dBi, 0dBi, -0.6dBi, -3.3dBi | 10 W | Cable - 1.5m | Fakra | IP67 | - | - | Adhesive | 0.340" (8.64mm) | 5G, CBRS, IoT, ISM, GNSS, GPS, LTE, Wi-Fi, UMTS |
|
|
TG.66.A113WWHITE WIDEBAND 600-6000MHZ 5G/4G |
137 |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Right Angle | 8 | - | - | 1.9dBi, 2.6dBi, 2.4dBi, 2.8dBi, 4.2dBi, 4.4dBi, 4.8dBi, 2.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.768" (70.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
YCGA012AAGNSS L1/L5 PATCH ANTENNA, 38 MM |
947 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.18GHz, 1.59GHz | 1.17GHz ~ 1.19GHz, 1.55GHz ~ 1.61GHz | Ceramic Patch | 2 | - | - | - | - | - | - | - | - | - | - | 0.630" (16.00mm) | GNSS |
|

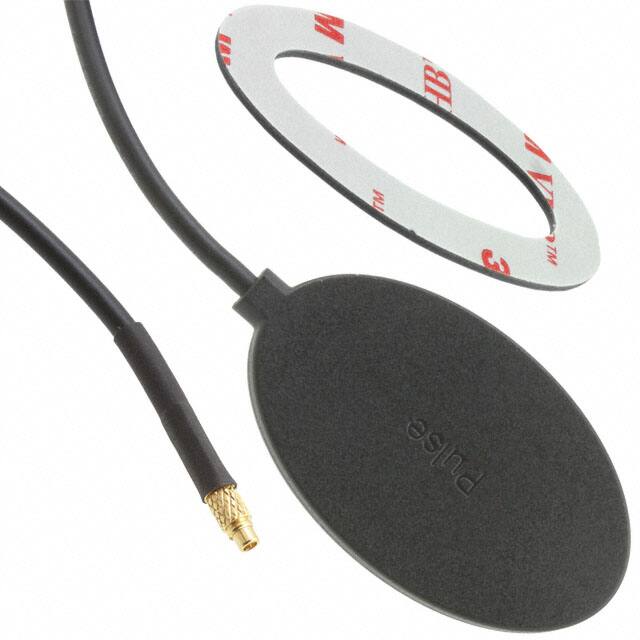

W4000D197RF ANT 1.575GHZ MODULE MMCX MALE |
134 |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 1.5dBi | - | LNA | MMCX Male | - | - | - | Adhesive | 1.969" (50.00mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
