Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

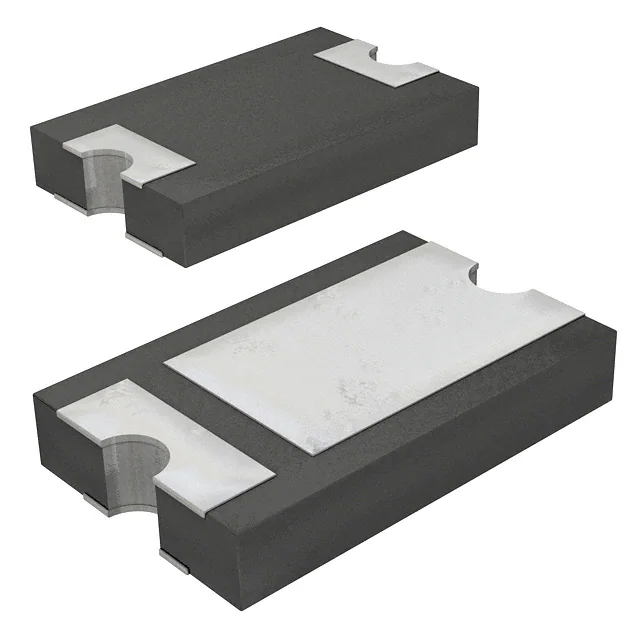

CDBZ5T1045-HFDIODE SCHOTTKY 45V 10A SMC |
263 |
|
Datasheet | - | Z5-T | Tape & Reel (TR) | Obsolete | Schottky | 45 V | 10A | 550 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | - | - | - | Surface Mount | SMC (Z5-T) | -55°C ~ 150°C |
|
CDBJFSC5650-GDIODE SIL CARBIDE 650V 5A TO220F |
346 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 5A | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 430pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
CDBD2SC21200-GDIODE SIL CARB 1.2KV 6.2A TO263 |
381 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 6.2A | 1.7 V @ 2 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 136pF @ 0V, 1MHz | - | - | Surface Mount | TO-263 (D2PAK) | -55°C ~ 175°C |
|
CDBDSC8650-GDIODE SIL CARB 650V 25.5A DPAK |
342 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 25.5A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 550pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
CDBJFSC8650-GDIODE SIL CARBIDE 650V 8A TO220F |
479 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 8A | 1.7 V @ 8 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 560pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBJSC10650-GDIODE SIL CARB 650V 10A TO220F |
472 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 710pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBDSC10650-GDIODE SIL CARBIDE 650V 10A DPAK |
355 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | 690pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
|
CDBJFSC101200-GDIODE SIL CARB 1.2KV 10A TO220F |
553 |
|
Datasheet | - | TO-220-2 Full Pack | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 780pF @ 0V, 1MHz | - | - | Through Hole | TO-220F | -55°C ~ 175°C |
|
|
CDBDSC51200-GDIODE SIL CARBIDE 1.2KV 18A DPAK |
411 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 18A | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 475pF @ 0V, 1MHz | - | - | Surface Mount | DPAK | -55°C ~ 175°C |
|
CDBFR03100-HFDIODE SCHOTTKY 100V 300MA 1005 |
1,424 |
|
Datasheet | - | 1005 (2512 Metric) | Tape & Reel (TR) | Obsolete | Schottky | 100 V | 300mA | 820 mV @ 300 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | 25pF @ 1V, 1MHz | - | - | Surface Mount | 1005/SOD-323F | -40°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
